If you’re looking to wire a 3 wire plug, you’ve come to the right place! Understanding how to properly wire a plug can save you time and frustration down the road.
Whether you’re a seasoned DIYer or a beginner looking to tackle a new project, having a clear wiring diagram can make the process much smoother. Let’s dive into the details of a 3 wire plug wiring diagram.
Once you’ve identified the wires, you’ll need to strip the insulation off the ends of each wire. Be sure to leave enough exposed wire to make a secure connection.

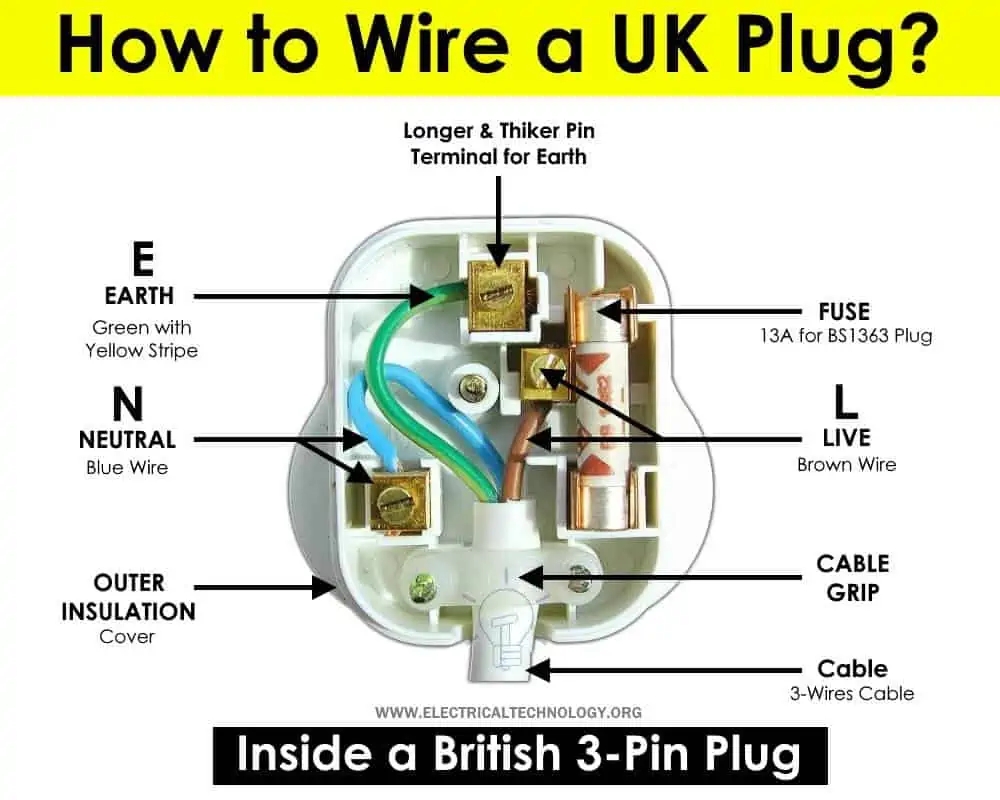

Next, you’ll want to connect the wires to the appropriate terminals on the plug. The hot wire should be connected to the brass or gold-colored terminal, the neutral wire to the silver terminal, and the ground wire to the green terminal.
After making the connections, it’s important to double-check your work to ensure everything is properly secured. Once you’ve confirmed that all connections are secure, you can carefully tighten the screws on the plug to hold everything in place.
Finally, it’s a good idea to test your newly wired plug to make sure everything is working correctly. Plug it into a power source and test any devices you plan to use with it to ensure a proper connection.
With these simple steps and a clear understanding of the wiring diagram, you’ll be able to confidently wire a 3 wire plug in no time. Remember to always prioritize safety and double-check your work to avoid any potential hazards.
