Are you looking to install a 4 pin round trailer wiring on your vehicle? You’ve come to the right place! In this article, we will provide you with a detailed guide on how to wire your trailer for safe and reliable towing.
Having a 4 pin round trailer wiring is essential for connecting your trailer lights to your vehicle. This type of wiring system is commonly used for small trailers, utility trailers, boat trailers, and more. It ensures that your trailer lights function properly, making it easier for other drivers to see your trailer on the road.
Related Post Alpine Ilx-W650 Wiring Diagram
4 Pin Round Trailer Wiring Diagram

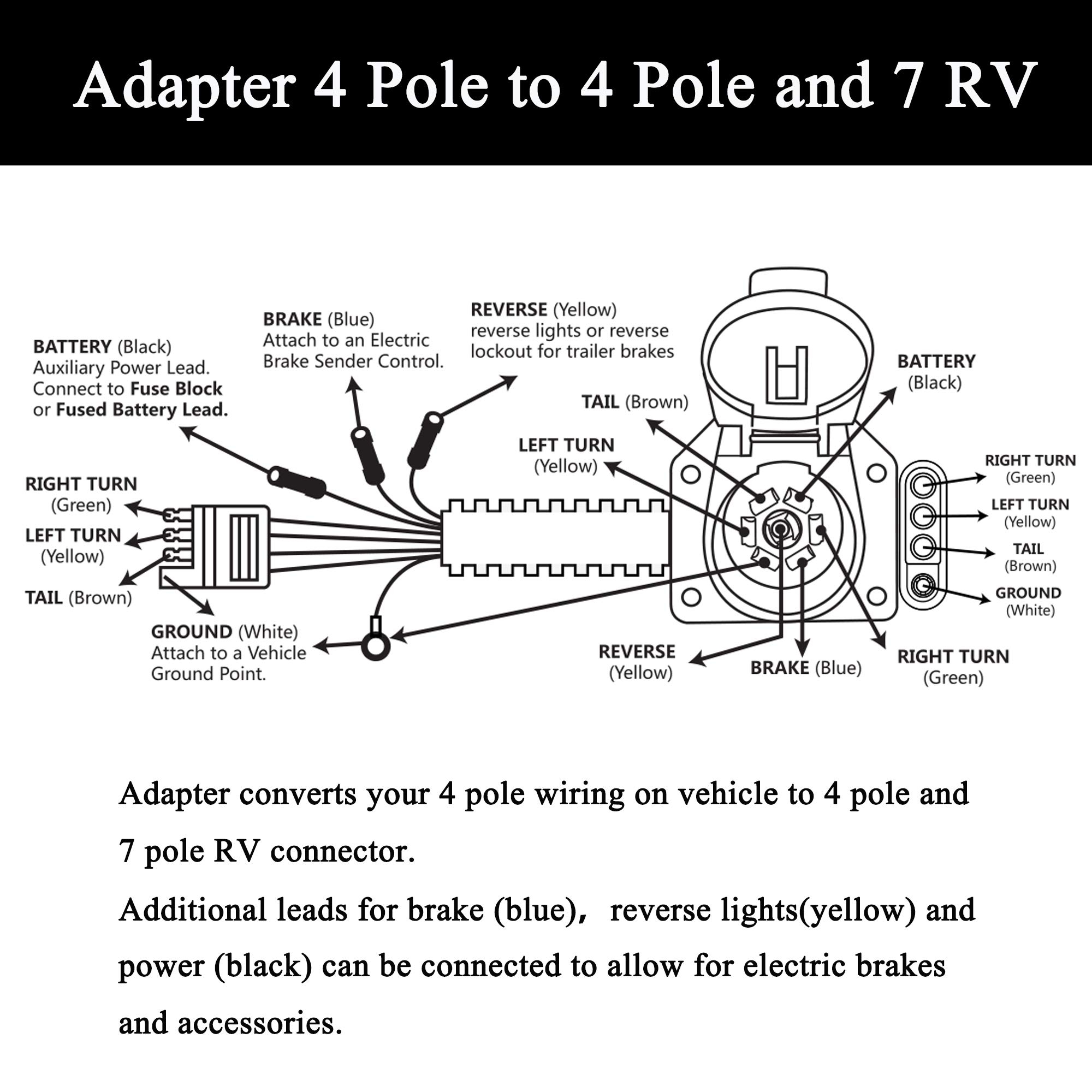

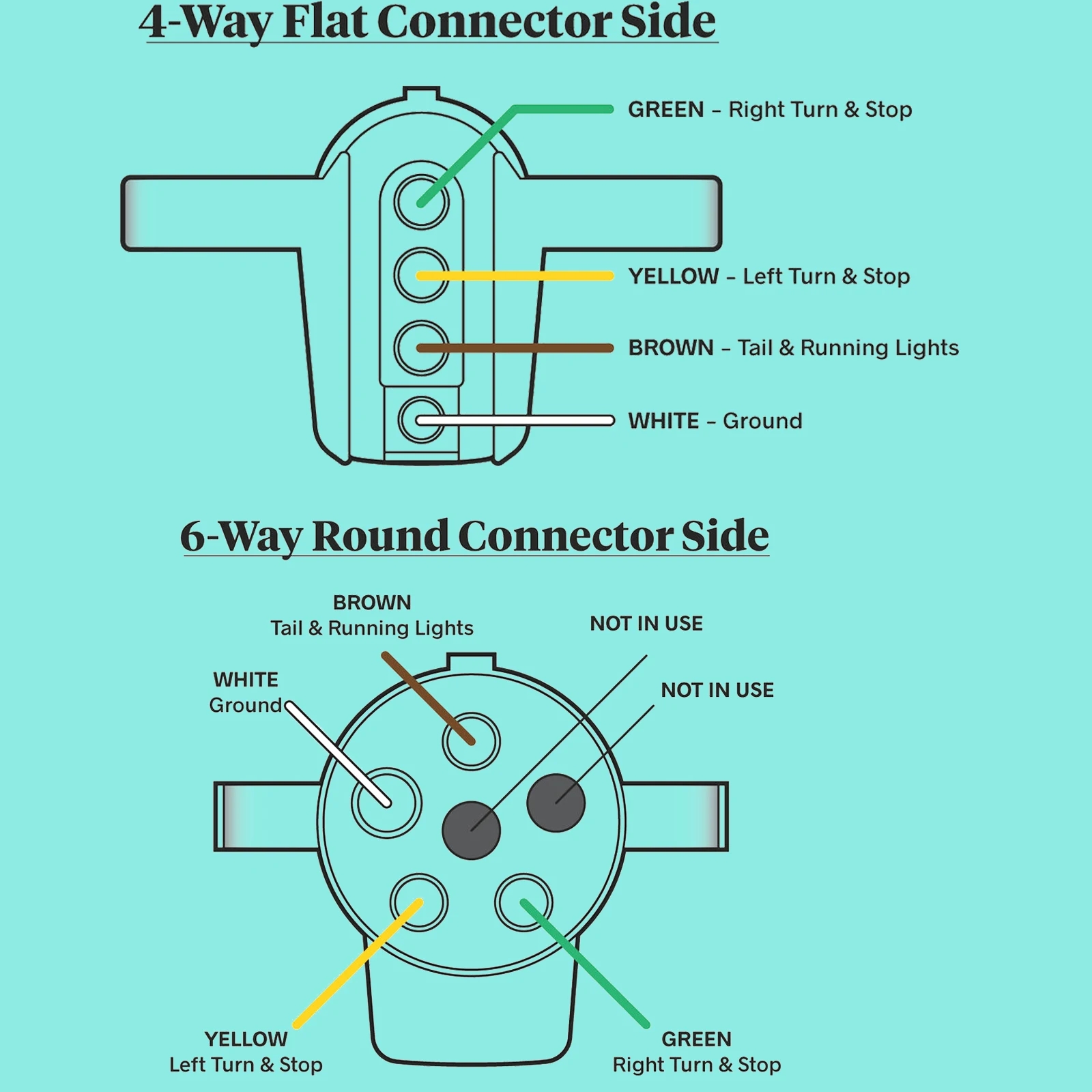

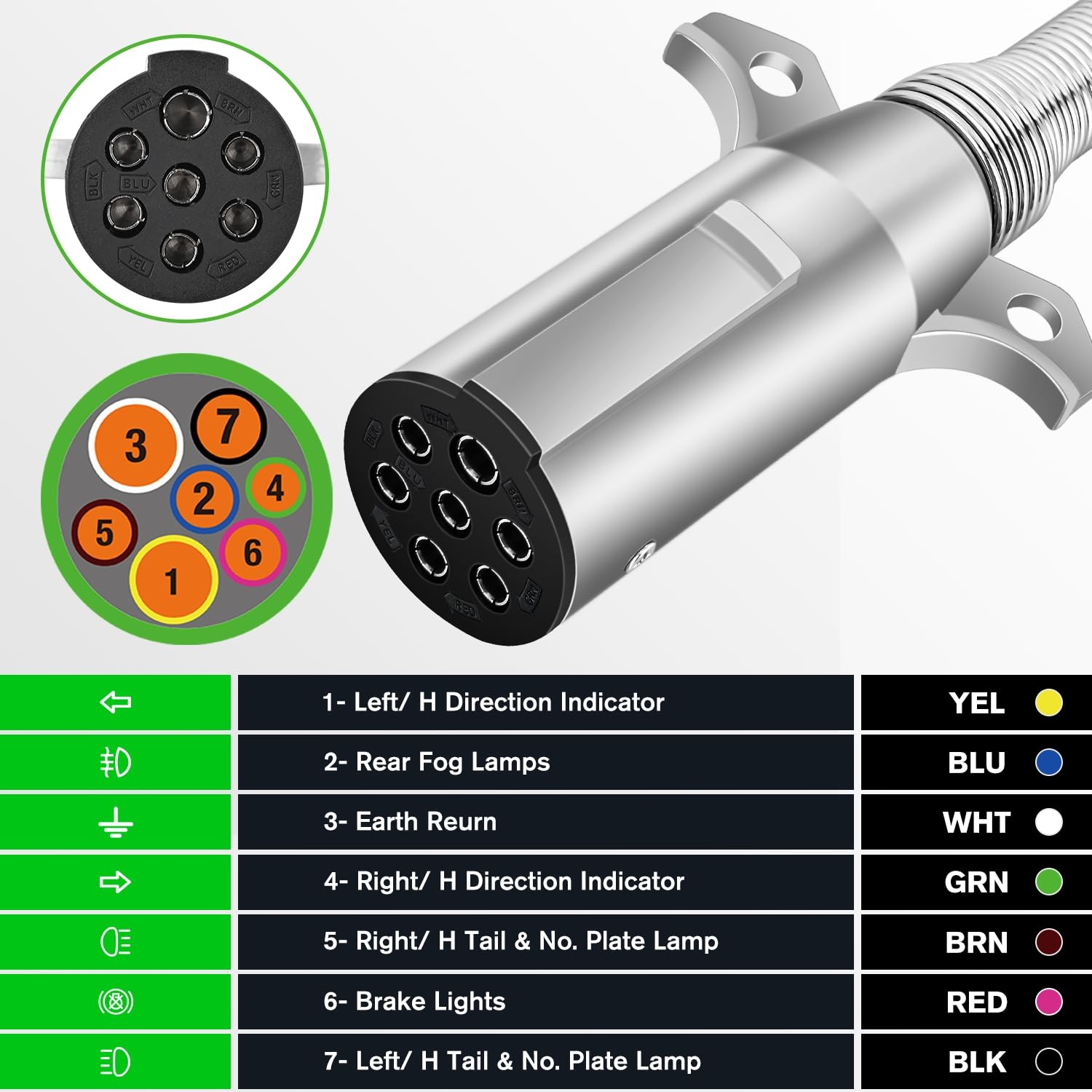

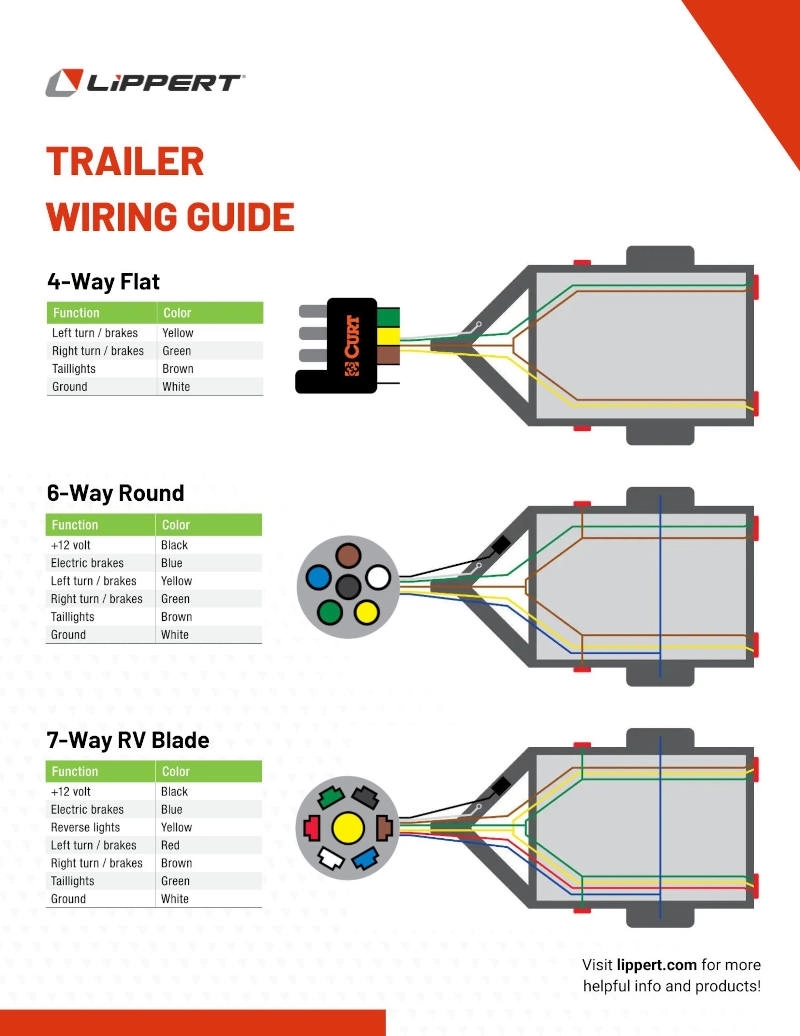

Before you begin the installation process, it’s important to have a clear understanding of the wiring diagram. The 4 pin round trailer wiring diagram consists of four wires: yellow (left turn/brake), green (right turn/brake), brown (tail lights), and white (ground). Each wire serves a specific function and must be connected correctly for the trailer lights to work.
To start the wiring process, you will need to identify the corresponding wires on your trailer and vehicle. Once you have located the wires, you can begin connecting them following the wiring diagram. Make sure to use the appropriate connectors and secure the connections with electrical tape to prevent any loose connections.
After connecting all the wires according to the diagram, test the trailer lights to ensure they are functioning correctly. Turn on your vehicle’s lights and activate the turn signals to see if the trailer lights respond accordingly. If everything is working as it should, you are ready to hit the road with your safely wired trailer!
In conclusion, installing a 4 pin round trailer wiring is a straightforward process that can be done with basic tools and a little bit of patience. By following the wiring diagram and making secure connections, you can ensure that your trailer lights work properly and keep you safe on the road. Happy towing!
Download and Print 4 Pin Round Trailer Wiring Diagram Listed below
