If you’re looking to hook up your trailer to your vehicle, you may need a 7 pin to 4 pin trailer adapter. This handy tool allows you to connect a trailer with a 7 pin connector to a vehicle with a 4 pin connector.
But how do you wire up this adapter? Don’t worry, we’ve got you covered with a simple step-by-step guide on how to do it yourself.
Next, start by cutting the wires on the 7 pin side of the adapter to the appropriate lengths. Then, strip the insulation off the ends of the wires to expose the copper underneath. This will allow you to connect them to the corresponding wires on the 4 pin side of the adapter.

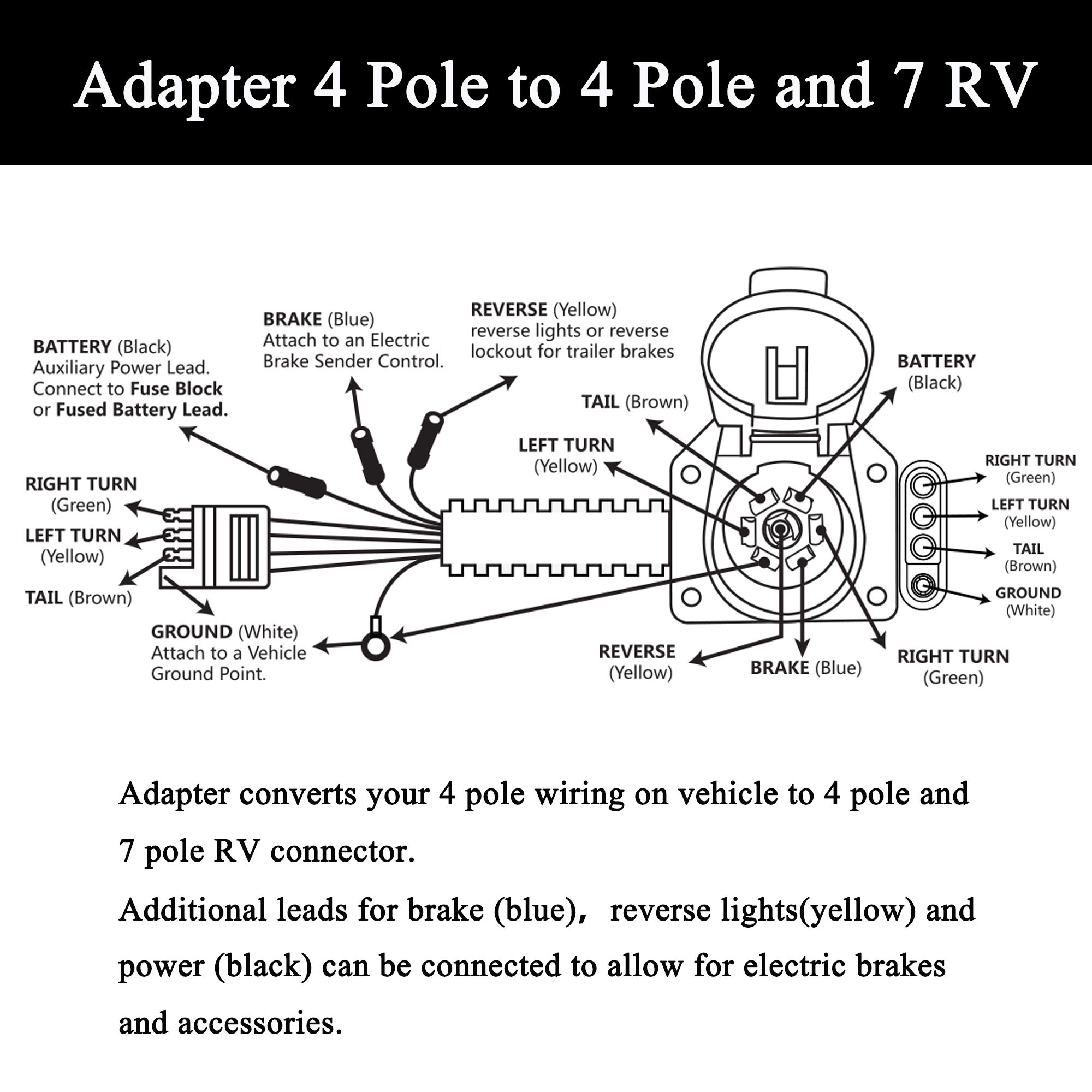

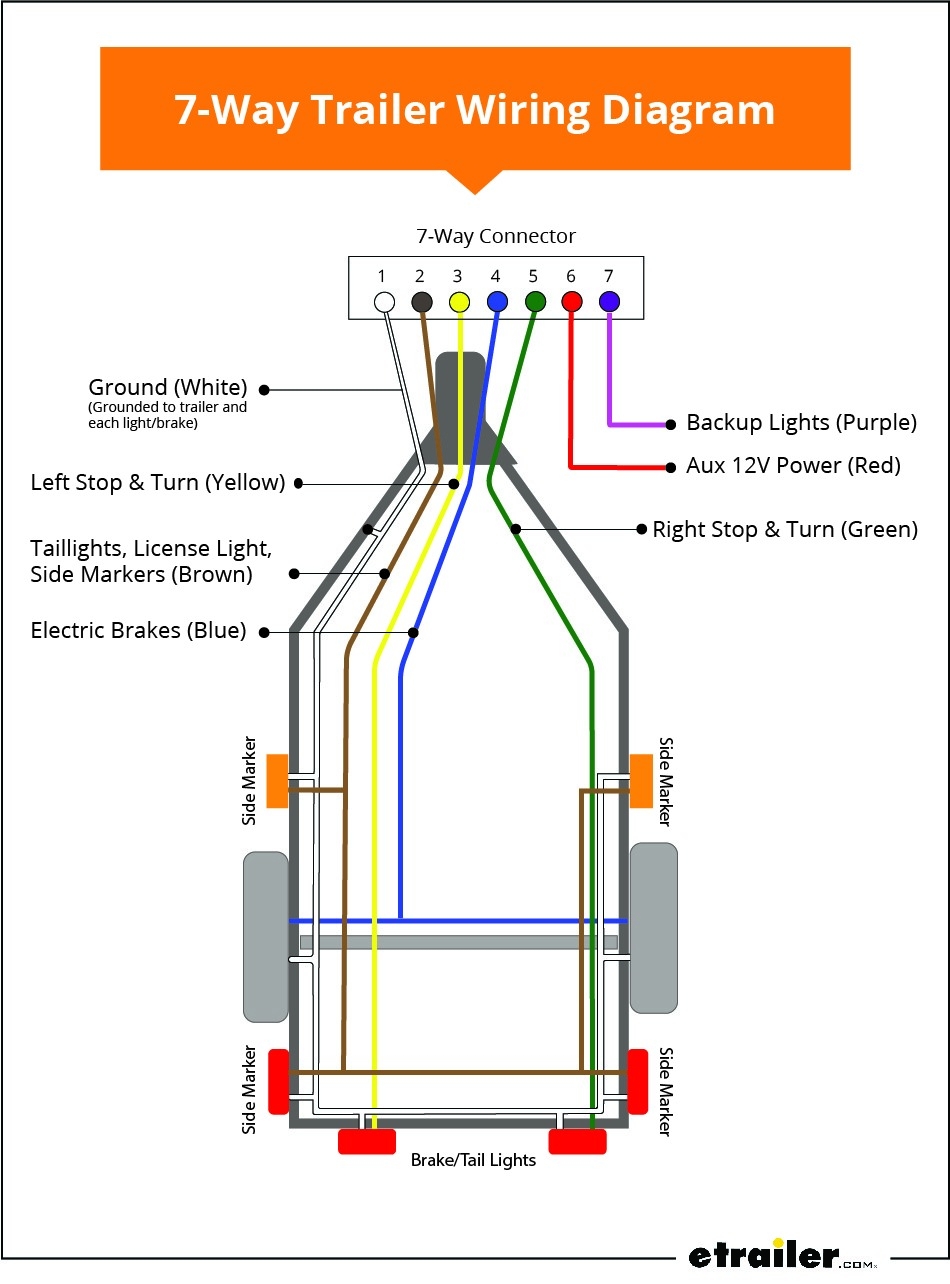

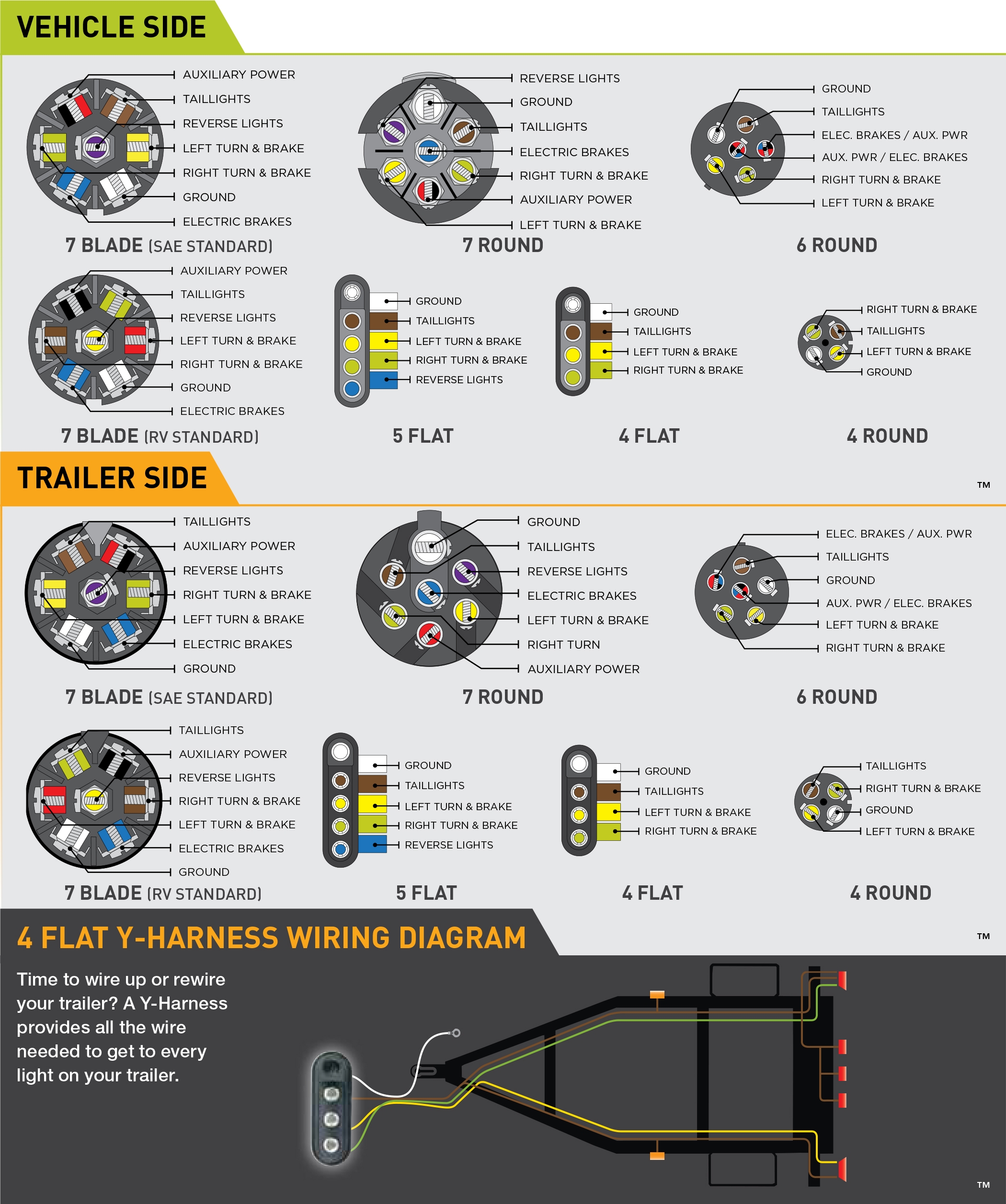

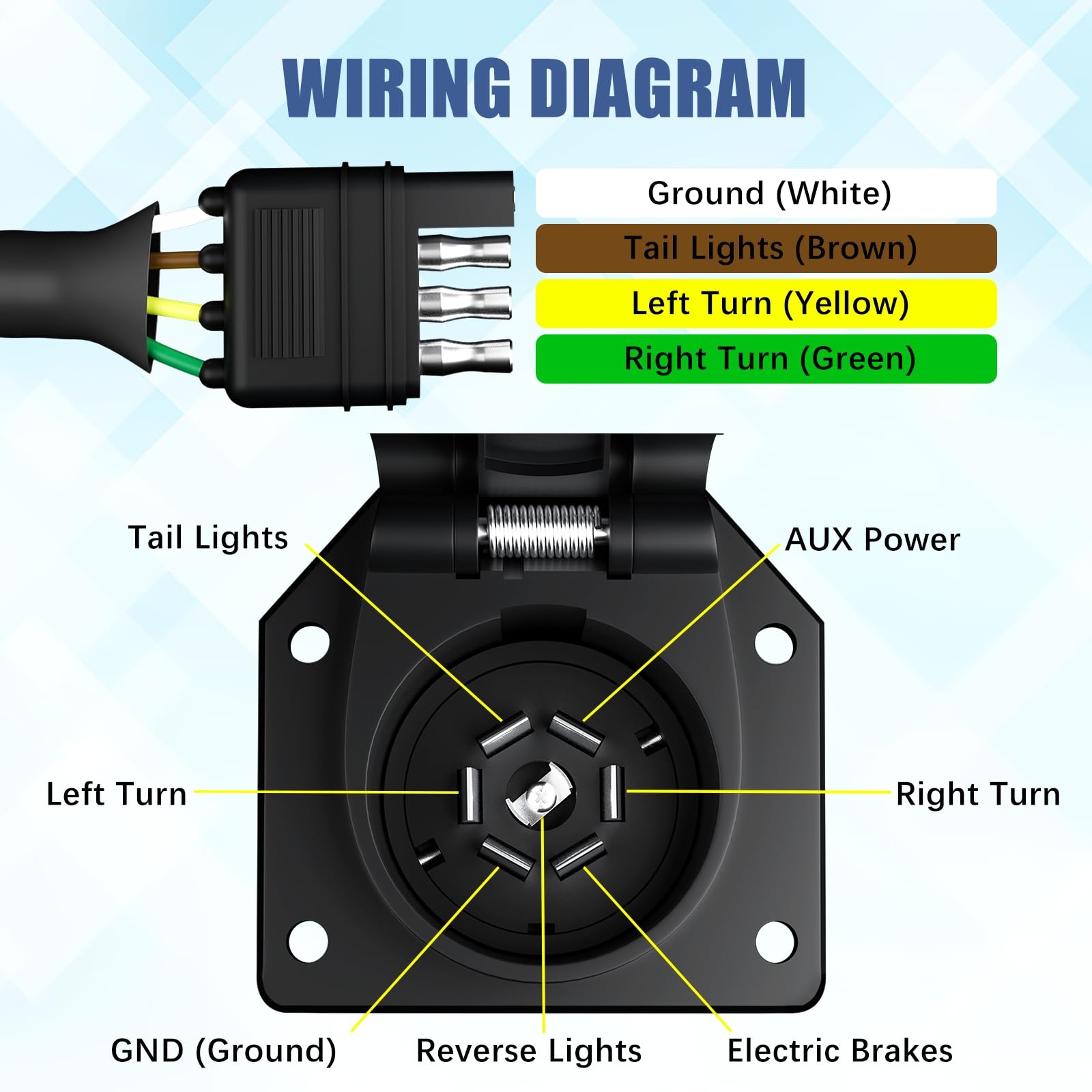

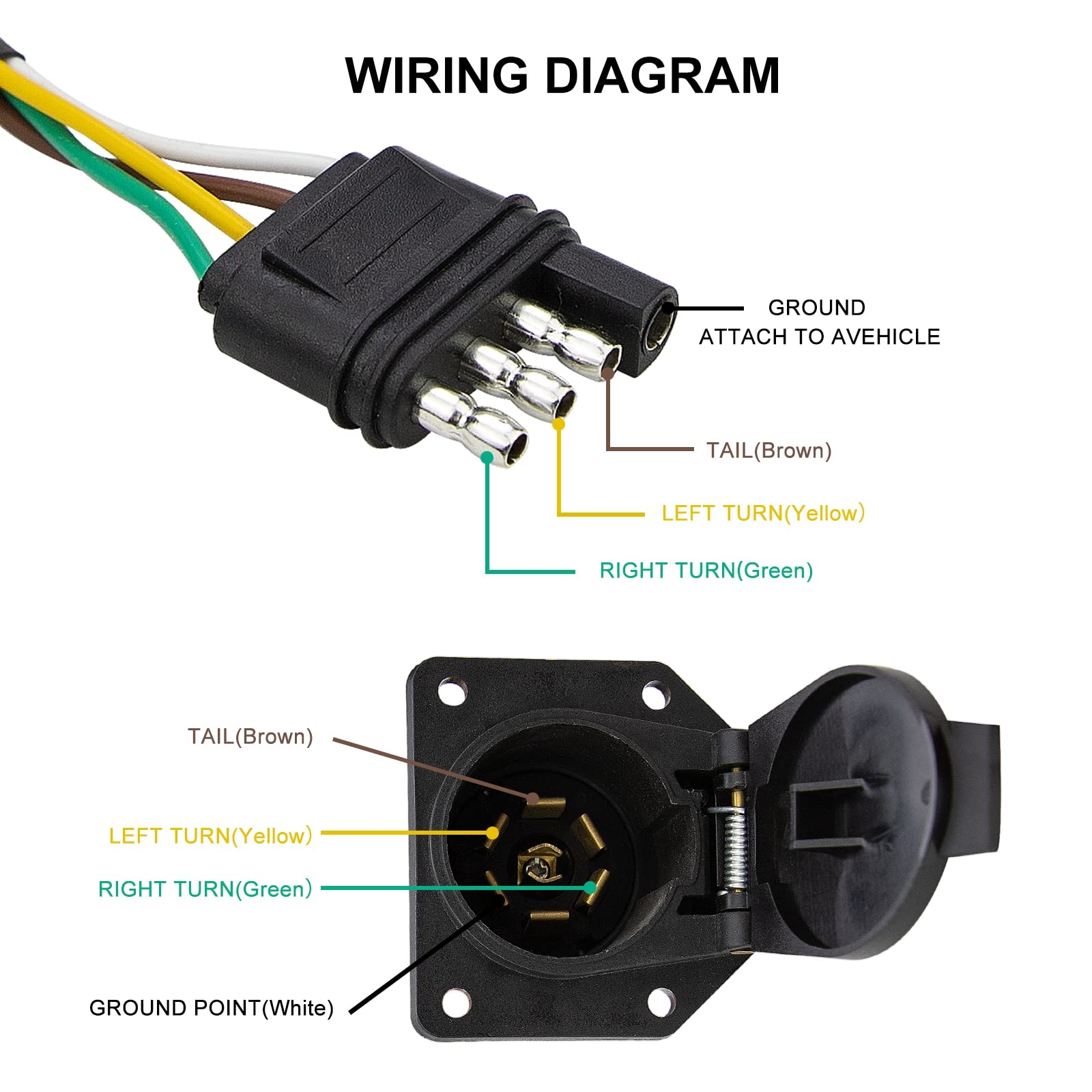

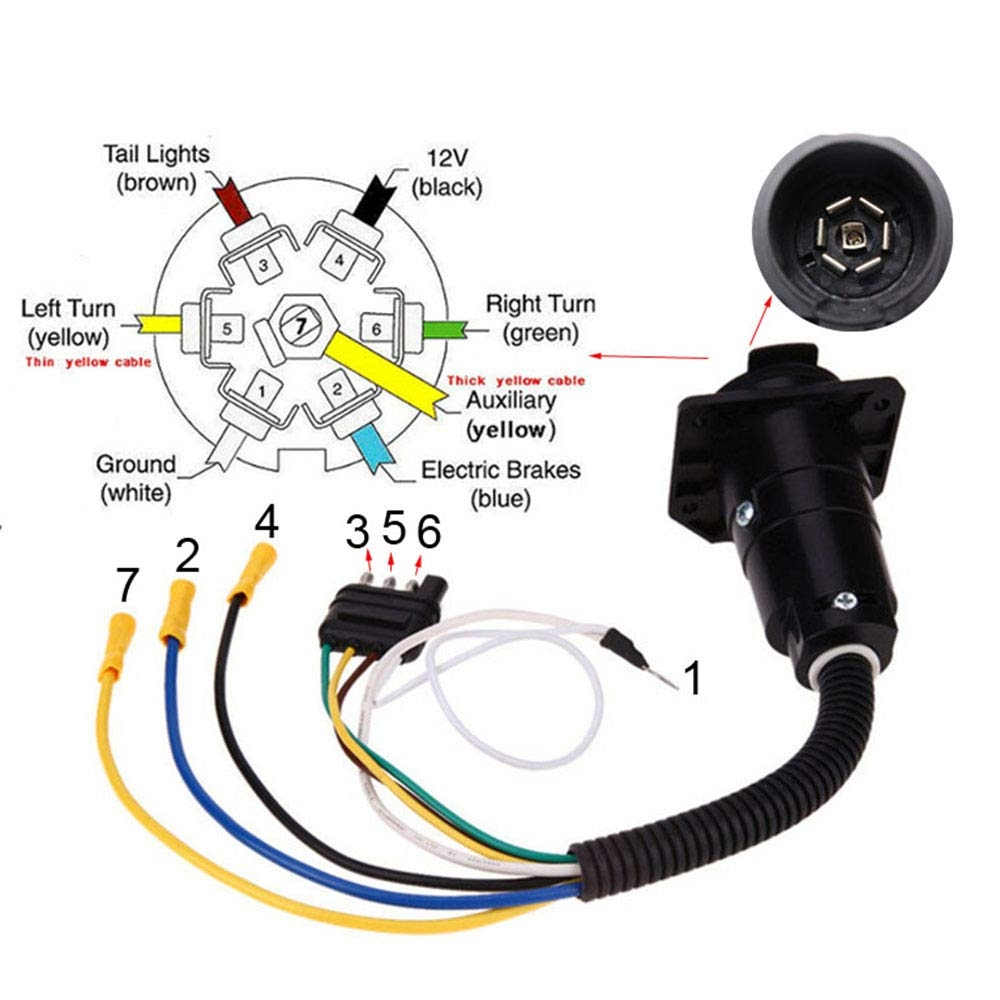

Once you’ve stripped the wires, it’s time to start connecting them. Match up the colors of the wires on the 7 pin side to the colors on the 4 pin side according to the wiring diagram. Use the wire nuts to secure the connections and wrap them in electrical tape for added protection.
After all the wires are connected and secured, test the adapter by plugging it into your vehicle and trailer. Make sure all the lights and signals are working properly before hitting the road. And that’s it – you’re all set to tow with your newly wired 7 pin to 4 pin trailer adapter!
So there you have it – a simple and straightforward guide on how to wire up a 7 pin to 4 pin trailer adapter. With just a few tools and a little bit of know-how, you can easily connect your trailer to your vehicle and hit the road with confidence. Happy towing!
