Looking to set up a dual battery system in your vehicle? Understanding the dual battery isolator wiring diagram is key to getting everything connected properly. This diagram will show you how to wire up your dual battery system for optimal performance.
Whether you’re an off-road enthusiast, camper, or just looking to upgrade your vehicle’s electrical system, a dual battery setup can provide the power you need for all your accessories. By isolating your starting battery from your auxiliary battery, you can ensure that you always have enough power to start your vehicle.
Related Post 4 Pin Round Trailer Wiring Diagram

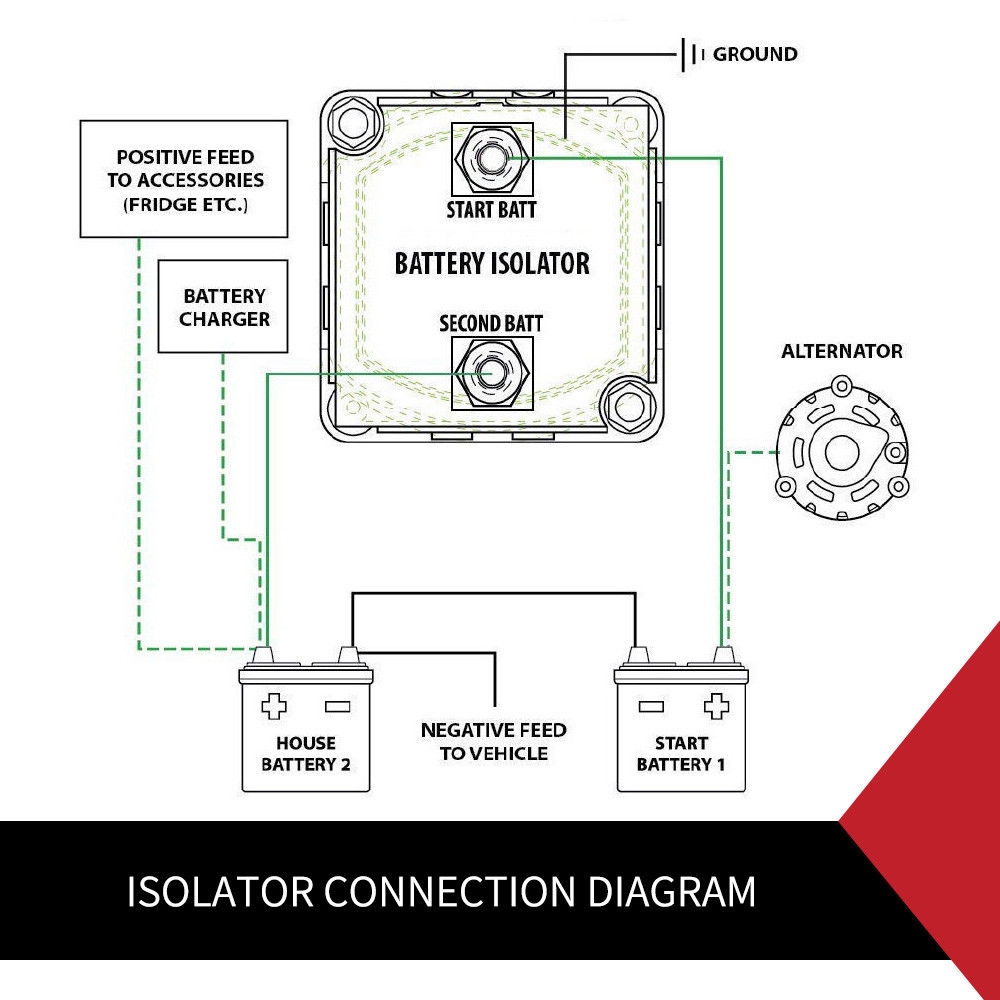

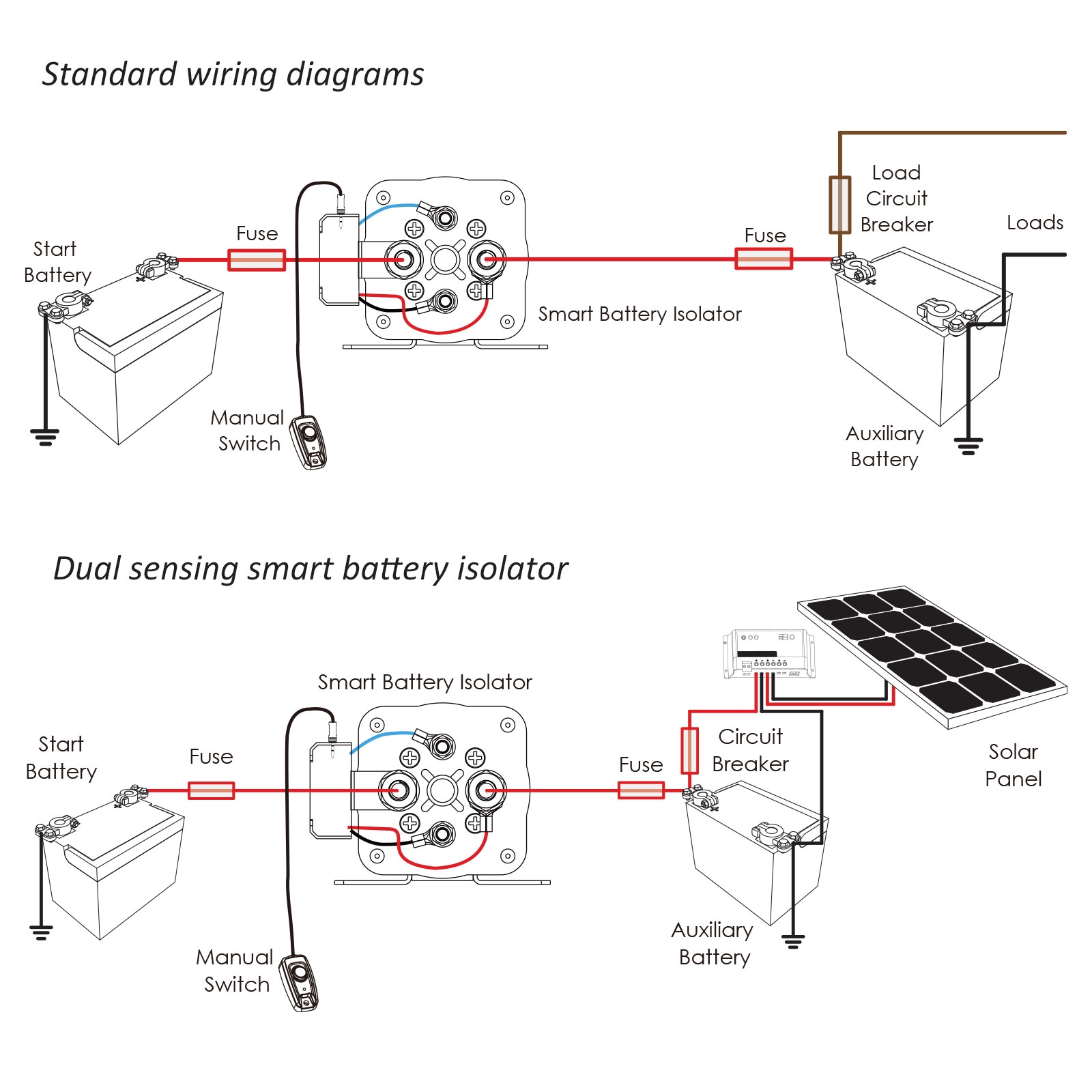

Start by connecting the positive terminal of your starting battery to the input terminal of the isolator. Then, connect the positive terminal of your auxiliary battery to the output terminal of the isolator. This will ensure that your batteries are properly isolated when the engine is off.
Next, connect the ground cables of both batteries to a common ground point on your vehicle. This will complete the circuit and allow for proper operation of your dual battery system. Make sure all connections are secure and insulated to prevent any shorts or electrical issues.
Once everything is connected according to the dual battery isolator wiring diagram, test your system to ensure everything is working correctly. Start your vehicle and check that both batteries are charging properly. You should also test your accessories to make sure they are receiving power from the auxiliary battery.
With the dual battery isolator wiring diagram as your guide, you can confidently set up a dual battery system in your vehicle. Enjoy the convenience of having extra power for all your adventures without worrying about draining your starting battery. Follow the diagram carefully, and you’ll be powering up in no time!
Download and Print Dual Battery Isolator Wiring Diagram Listed below
