Electric Brake Controller Wiring Diagram

Are you looking to install an electric brake controller in your vehicle but not sure how to wire it up? Well, you’re in the right place! In this article, we will provide you with a detailed electric brake controller wiring diagram that will guide you through the process.

Electric brake controllers are essential for towing trailers with electric brakes. They provide the necessary braking power to help you stop safely while towing heavy loads. Wiring up an electric brake controller may seem intimidating at first, but with the right instructions, it can be a straightforward task.

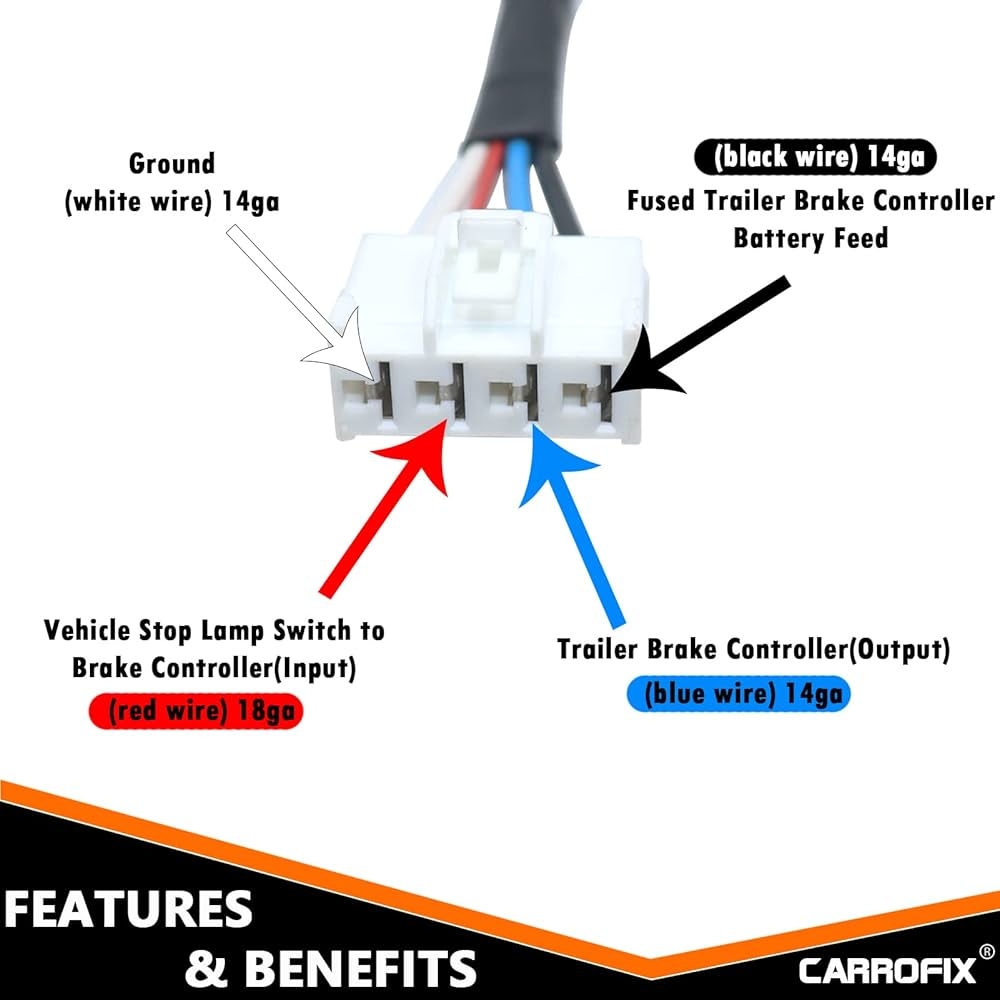

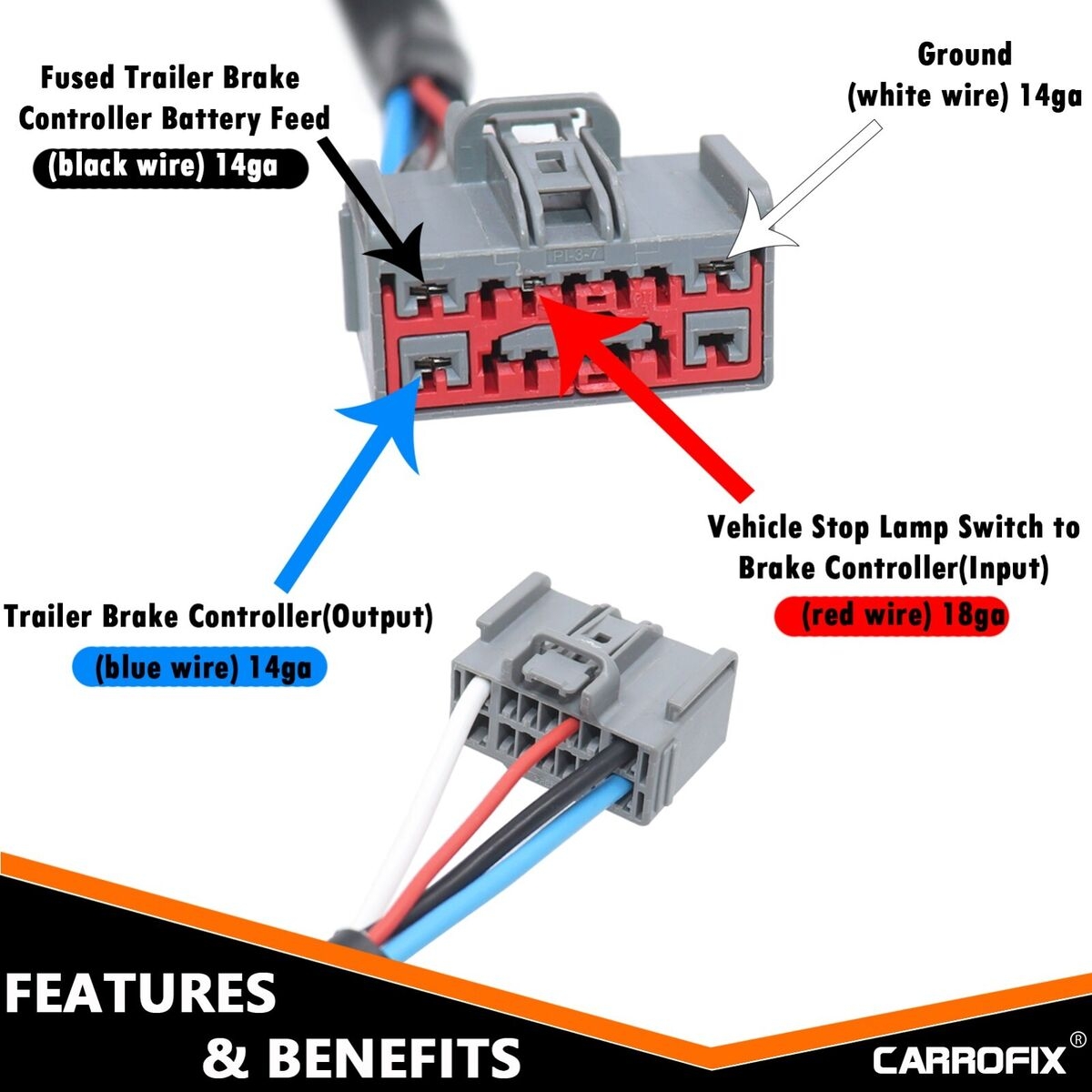

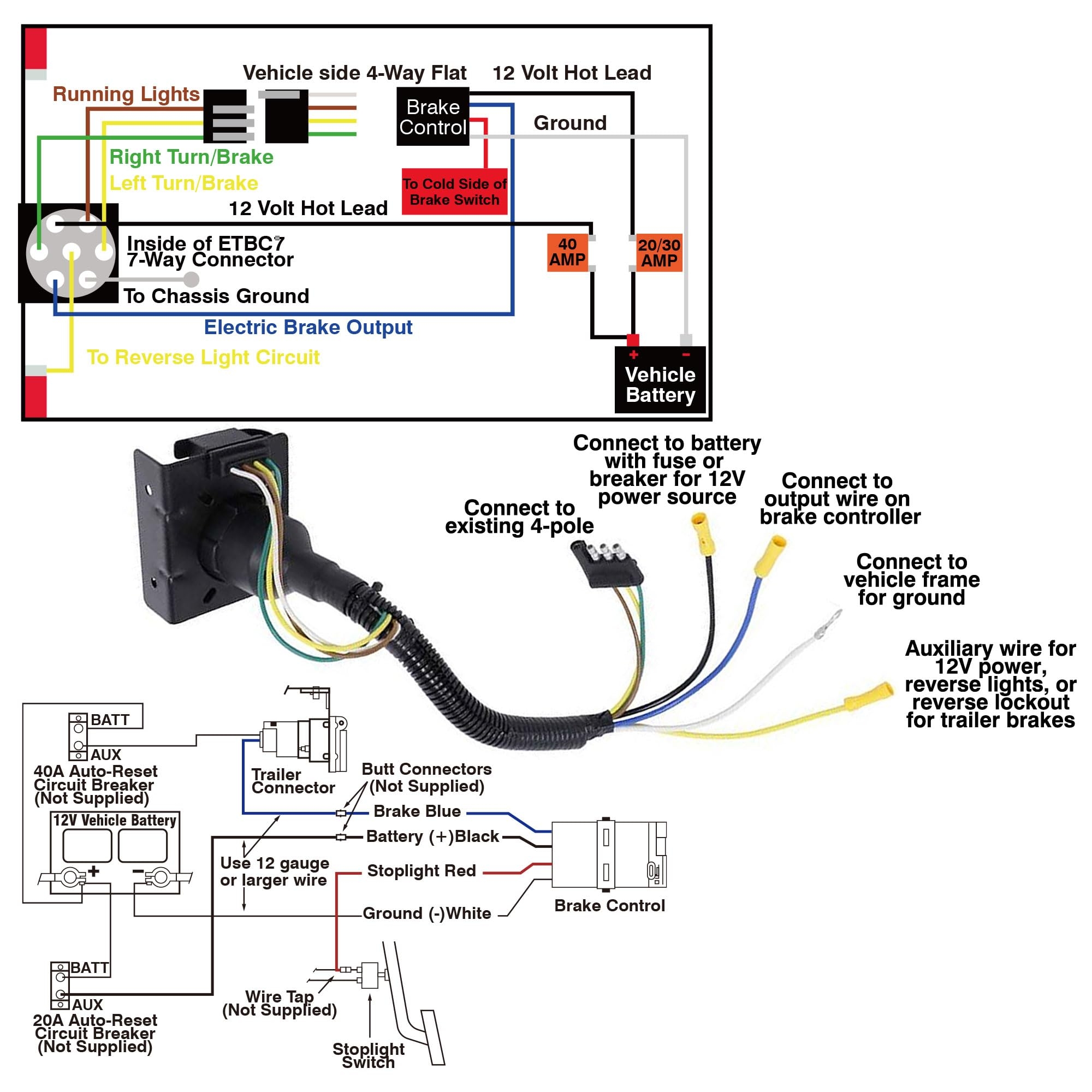

First, locate the factory tow package connector in your vehicle. This connector is usually found near the rear bumper or under the dashboard. Once you’ve located the connector, you can start wiring the brake controller following the diagram provided with the controller.

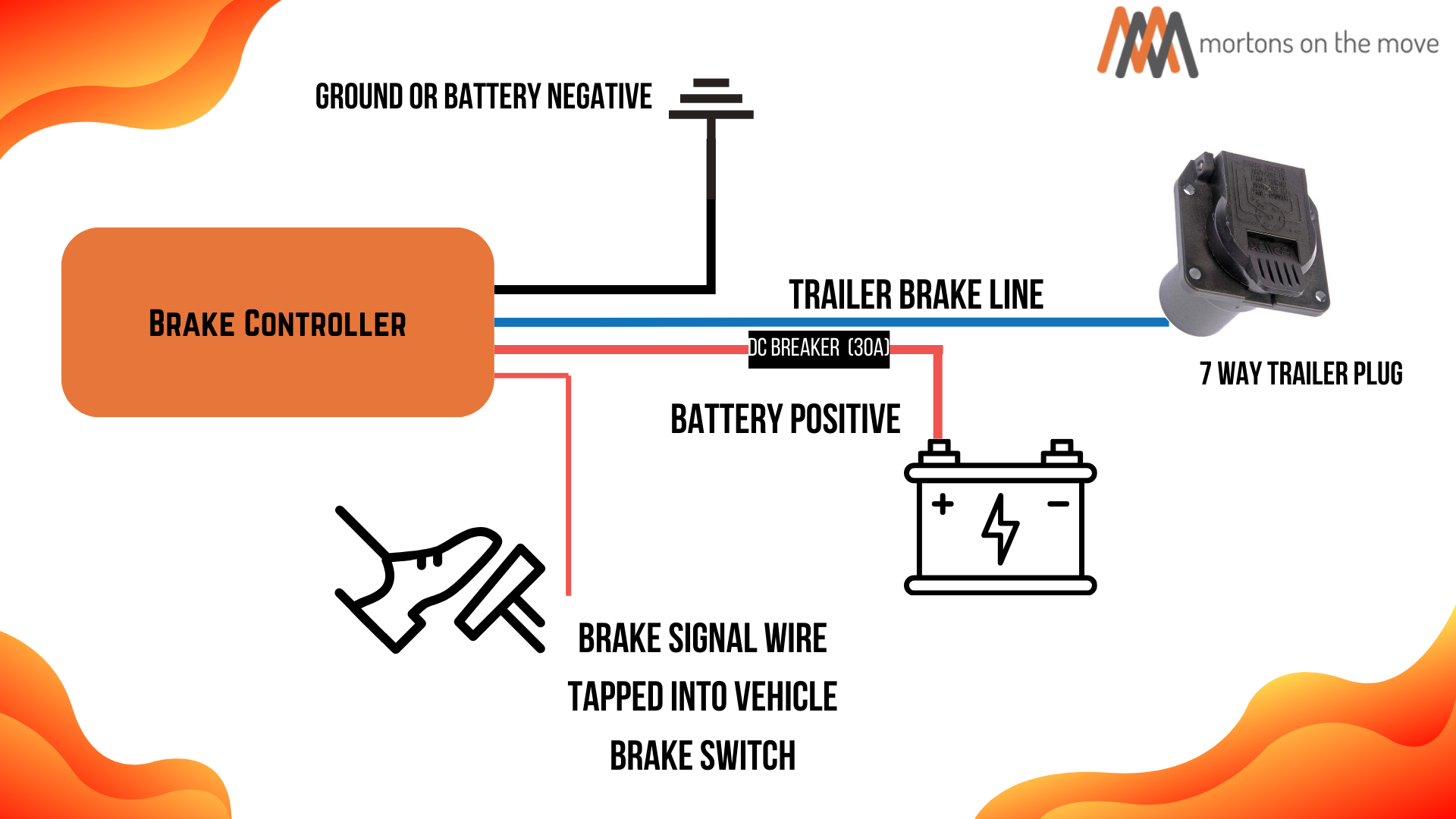

Connect the brake controller’s power wire to the vehicle’s battery to ensure it has a constant power supply. Then, connect the brake controller’s ground wire to a solid metal surface on the vehicle’s chassis to ground it properly. Make sure to secure all connections with electrical tape to prevent any loose wires.

Once you have completed the wiring process, test the brake controller by towing a trailer with electric brakes. Make sure the brakes engage smoothly when you apply the brake pedal. If everything is working correctly, you’re all set to hit the road with your trailer in tow!

In conclusion, wiring an electric brake controller doesn’t have to be a daunting task. By following a detailed wiring diagram and taking your time to make secure connections, you can ensure a safe and reliable braking system for your trailer. So, roll up your sleeves, grab your tools, and get ready to tackle this DIY project!
