Are you struggling to understand how to wire the fuel gauge in your boat? You’re not alone! Many boat owners find the process confusing, but with the right guidance, it can be a straightforward task.

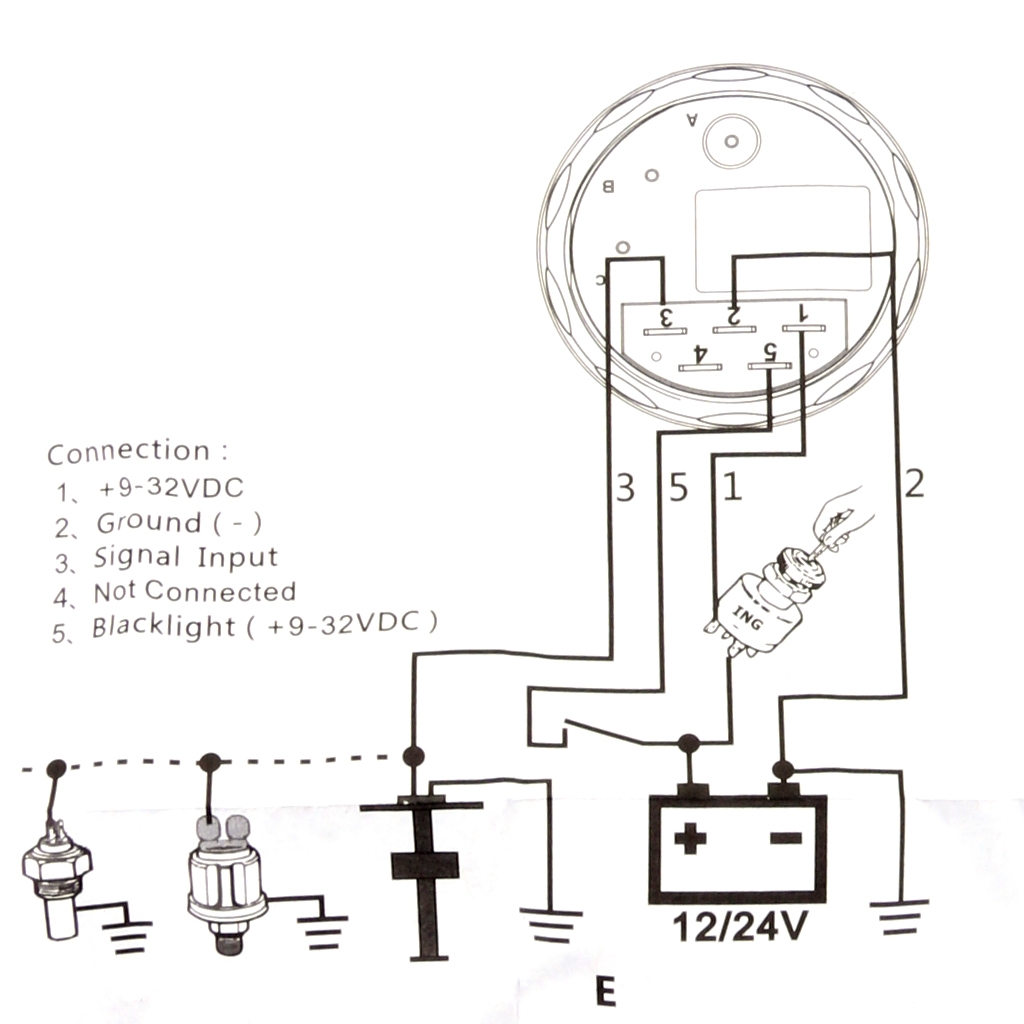

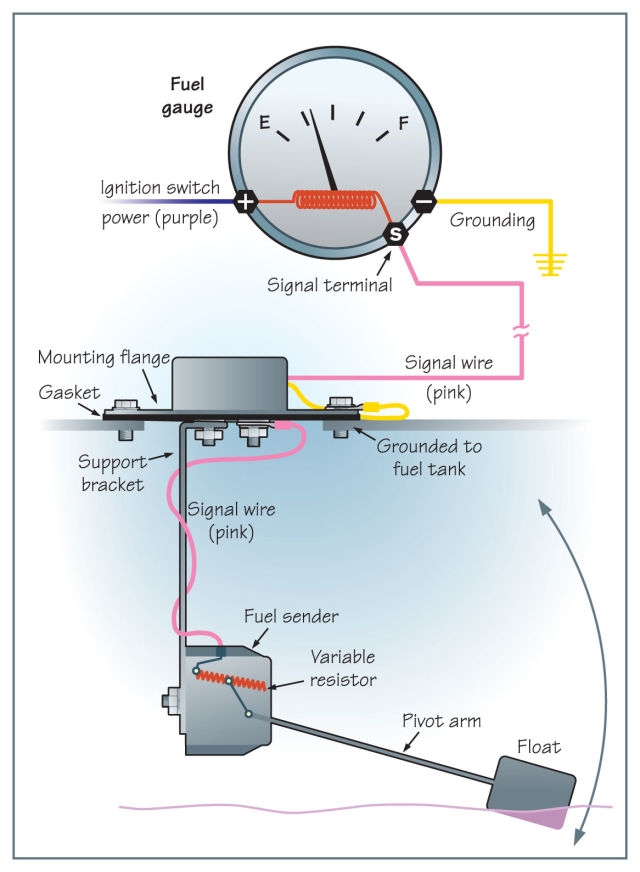

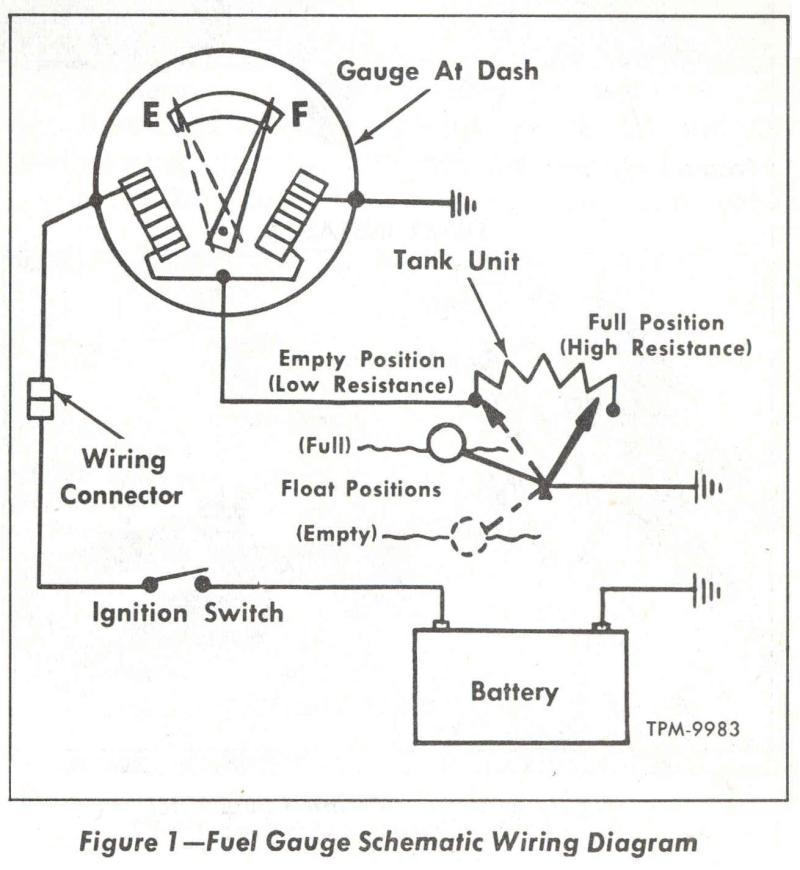

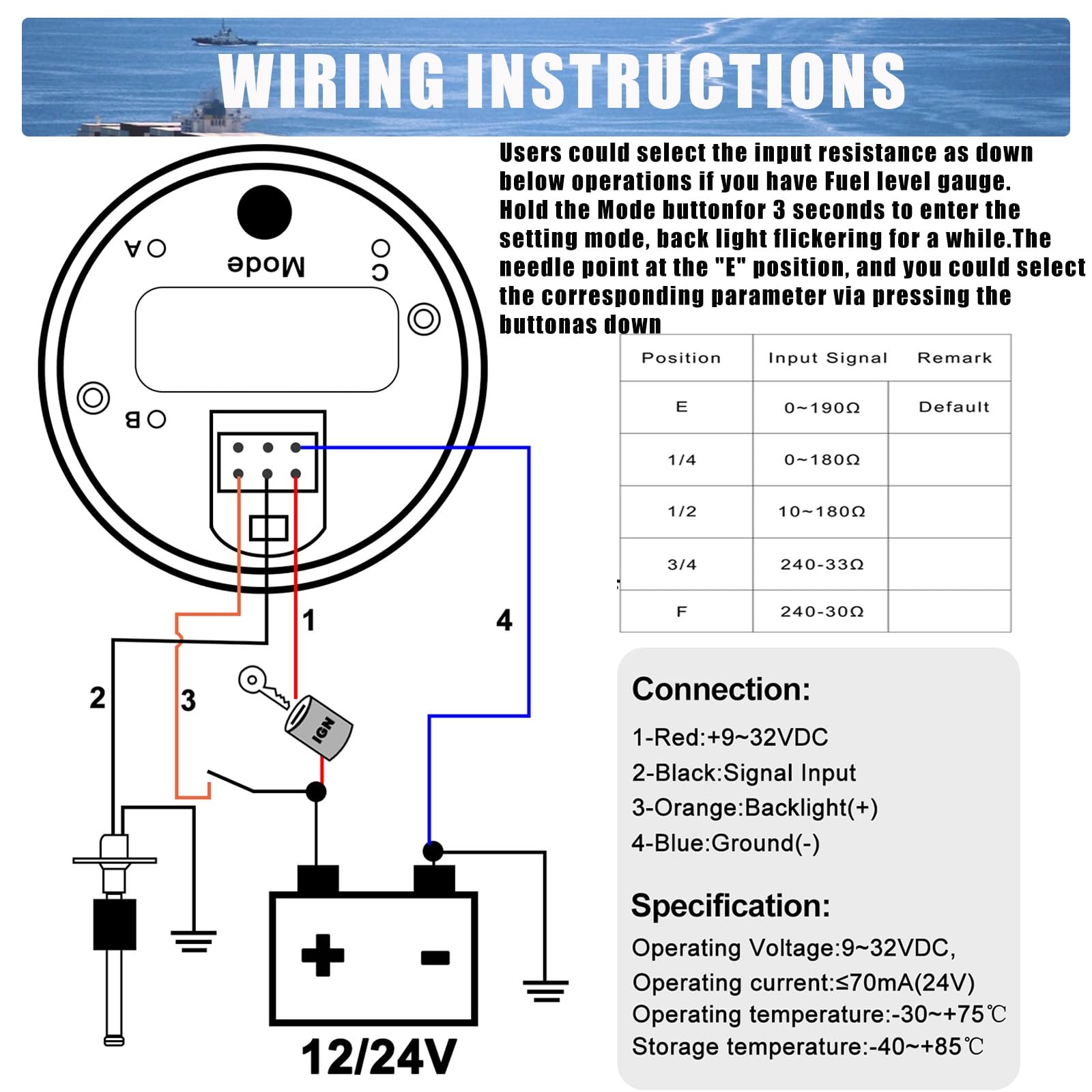

In this article, we will provide you with a fuel gauge wiring diagram for your boat, making it easier for you to complete the installation process without any hassle.
Start by disconnecting the boat’s battery to prevent any accidents during the installation process. Locate the fuel gauge on your boat’s dashboard and remove any screws or clips holding it in place. Once you have access to the back of the gauge, you can begin wiring it according to the diagram.
Identify the positive and negative terminals on the fuel gauge and connect the appropriate wires from the wiring harness. Make sure to secure the connections with electrical tape or wire connectors to prevent any loose connections that could lead to malfunctions later on.
Once you have completed the wiring process, reattach the fuel gauge to your boat’s dashboard and reconnect the battery. Turn on the ignition to test the fuel gauge and ensure it is functioning correctly. If everything is working as it should, congratulations! You have successfully wired your boat’s fuel gauge.
Remember to double-check your connections and take your time during the installation process to avoid any mistakes. If you encounter any difficulties, don’t hesitate to seek help from a professional or refer back to the wiring diagram for guidance.
In conclusion, wiring a fuel gauge for your boat may seem daunting at first, but with the right information and a little patience, you can easily complete the task. By following the steps outlined in this article and referring to the provided wiring diagram, you’ll be able to enjoy an accurate and reliable fuel gauge on your boat in no time.
