Are you looking to upgrade your home’s lighting system? Installing a three-way dimmer switch can add convenience and ambiance to any room. In this article, we will discuss the wiring diagram for a three-way dimmer switch to help you with your installation.
Before we dive into the wiring diagram, let’s first understand what a three-way dimmer switch is. Unlike a regular switch that only has an on and off position, a three-way dimmer switch allows you to control the brightness of the lights from two different locations. This is perfect for rooms with multiple entry points, such as a hallway or staircase.
Related Post Wiring Diagram For Ezgo Txt

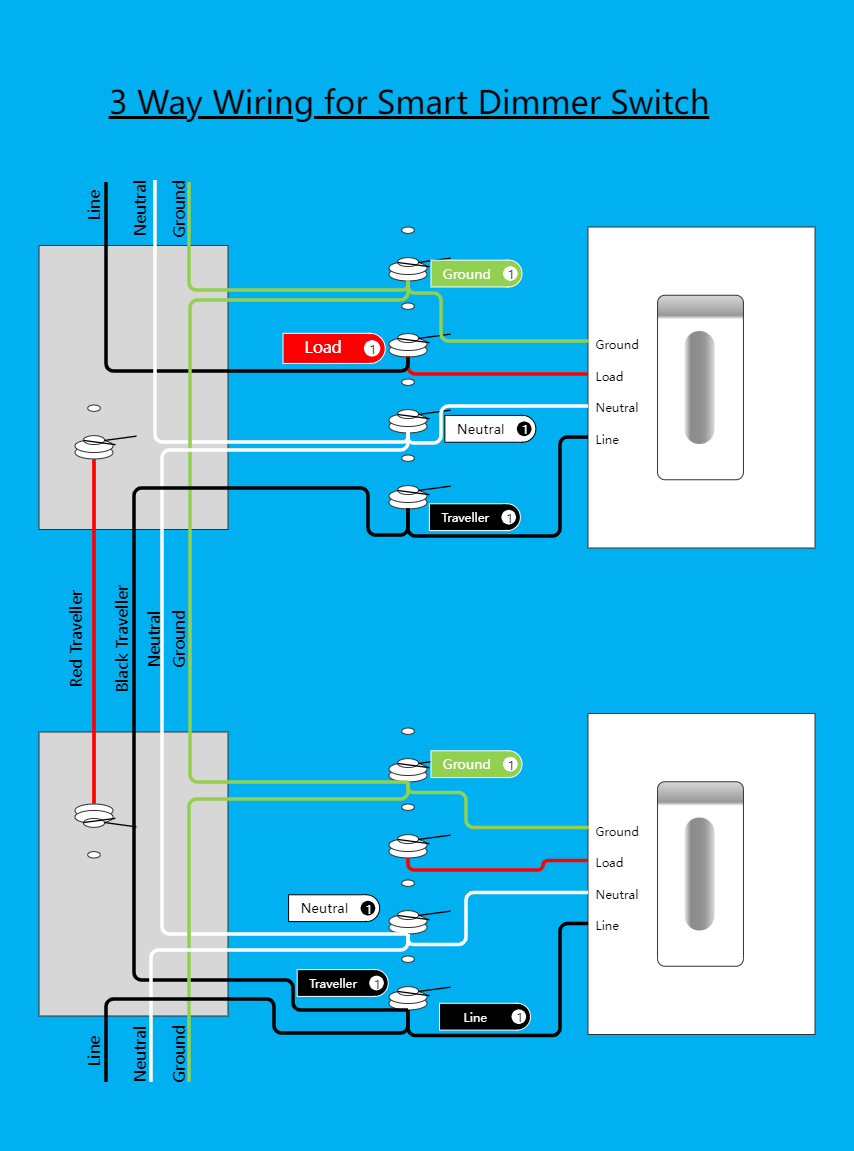

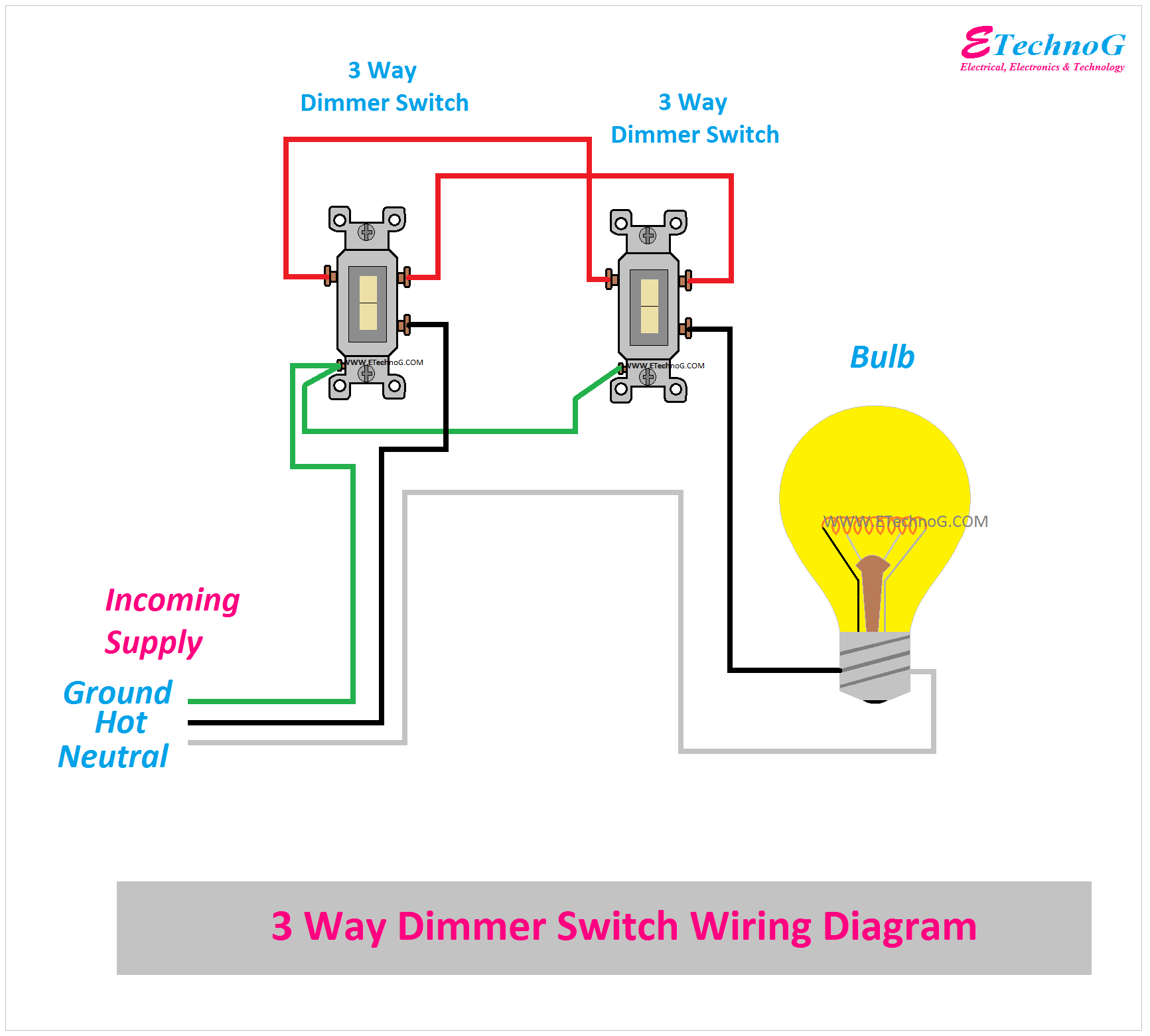

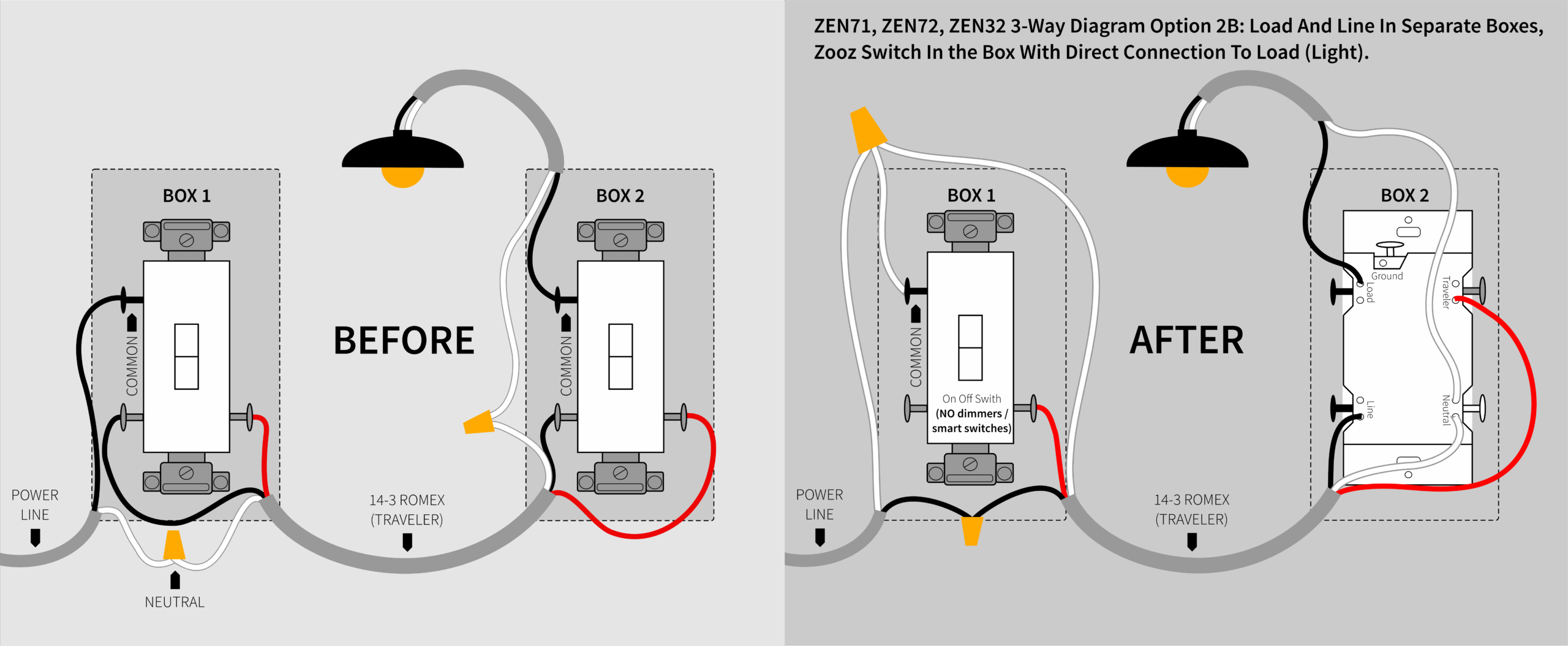

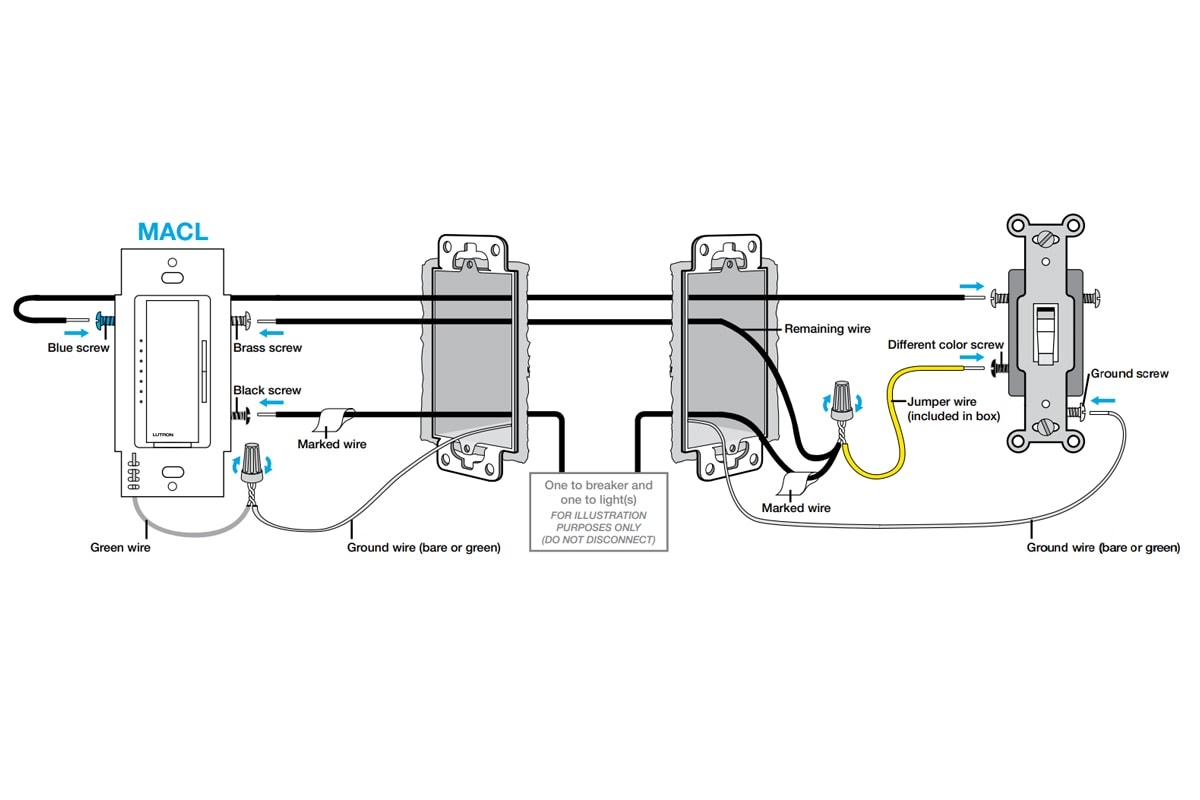

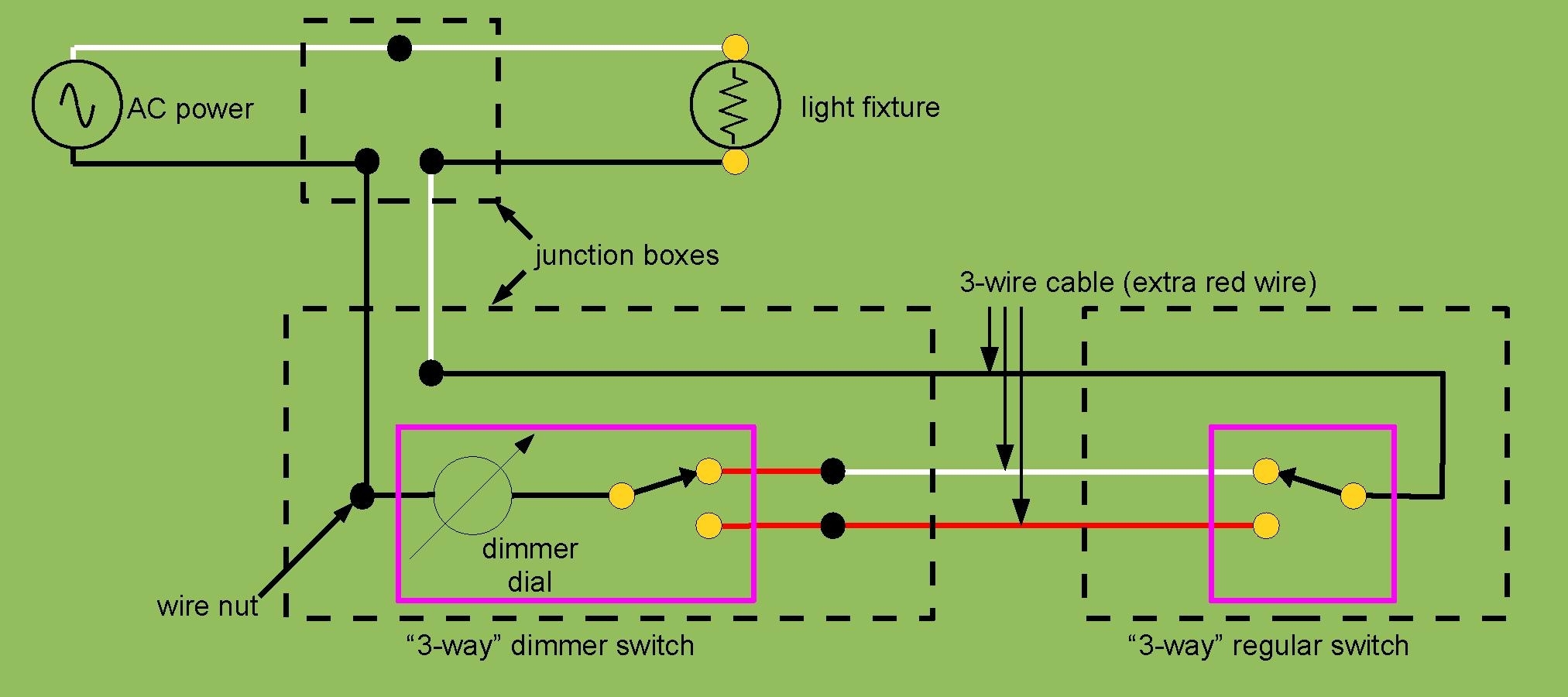

Three Way Dimmer Switch Wiring Diagram

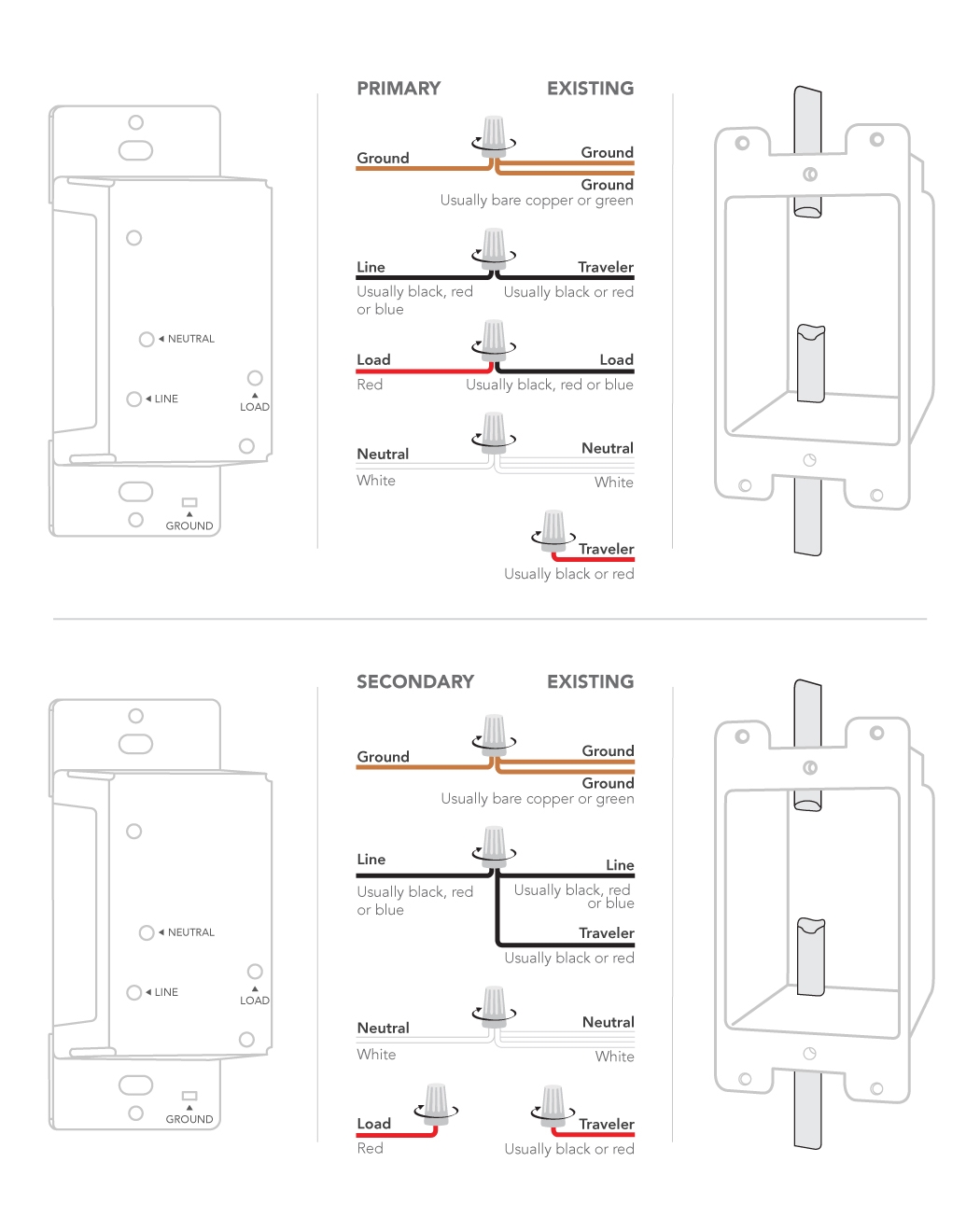

When it comes to wiring a three-way dimmer switch, it’s important to follow the manufacturer’s instructions carefully. Typically, you will have two black wires, one red wire, and a green ground wire. The black wires are the hot wires, the red wire is the traveler wire, and the green wire is the ground wire.
Start by turning off the power to the circuit at the breaker box. Next, remove the existing switch and identify the common wire (usually black) and the traveler wires (usually red and black). Connect the black wire from the dimmer switch to the common wire, the red wire to the traveler wire on one side, and the black wire to the traveler wire on the other side.
Once you have made the connections, carefully tuck the wires back into the electrical box and secure the dimmer switch in place. Turn the power back on and test the dimmer switch to ensure it is working properly. If everything is functioning correctly, you can now enjoy the benefits of your new three-way dimmer switch.
In conclusion, installing a three-way dimmer switch can enhance the functionality and aesthetics of your home’s lighting. By following the wiring diagram provided by the manufacturer and taking the necessary precautions, you can easily upgrade your lighting system. So why wait? Start your installation today and enjoy the benefits of a dimmable lighting system in your home.
Download and Print Three Way Dimmer Switch Wiring Diagram Listed below
