Are you looking to install a 24 volt trolling motor on your boat but feeling a bit overwhelmed by all the wiring? Don’t worry, we’ve got you covered! In this article, we’ll walk you through a simple and easy-to-follow wiring diagram for your 24 volt trolling motor.
Before we jump into the wiring process, let’s quickly go over the basics. A 24 volt trolling motor requires two 12 volt batteries connected in series to create a 24 volt system. This setup will provide your trolling motor with the power it needs to efficiently run on the water.
Related Post Wiring Diagram For Rv Air Conditioner
Start by connecting the positive terminal of the first battery to the negative terminal of the second battery using the jumper cables. This will create a series connection between the two batteries, effectively doubling the voltage output to 24 volts.

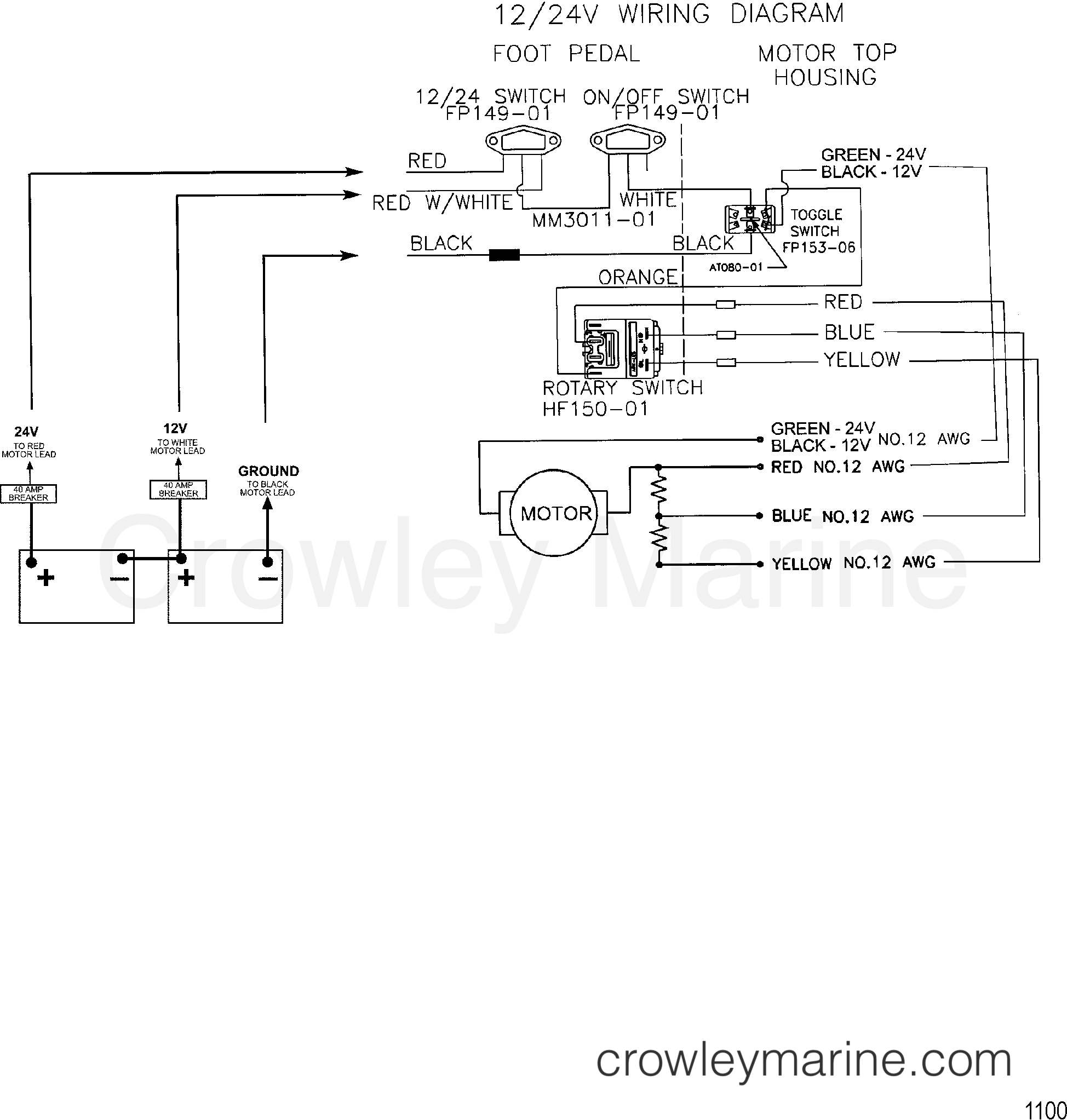

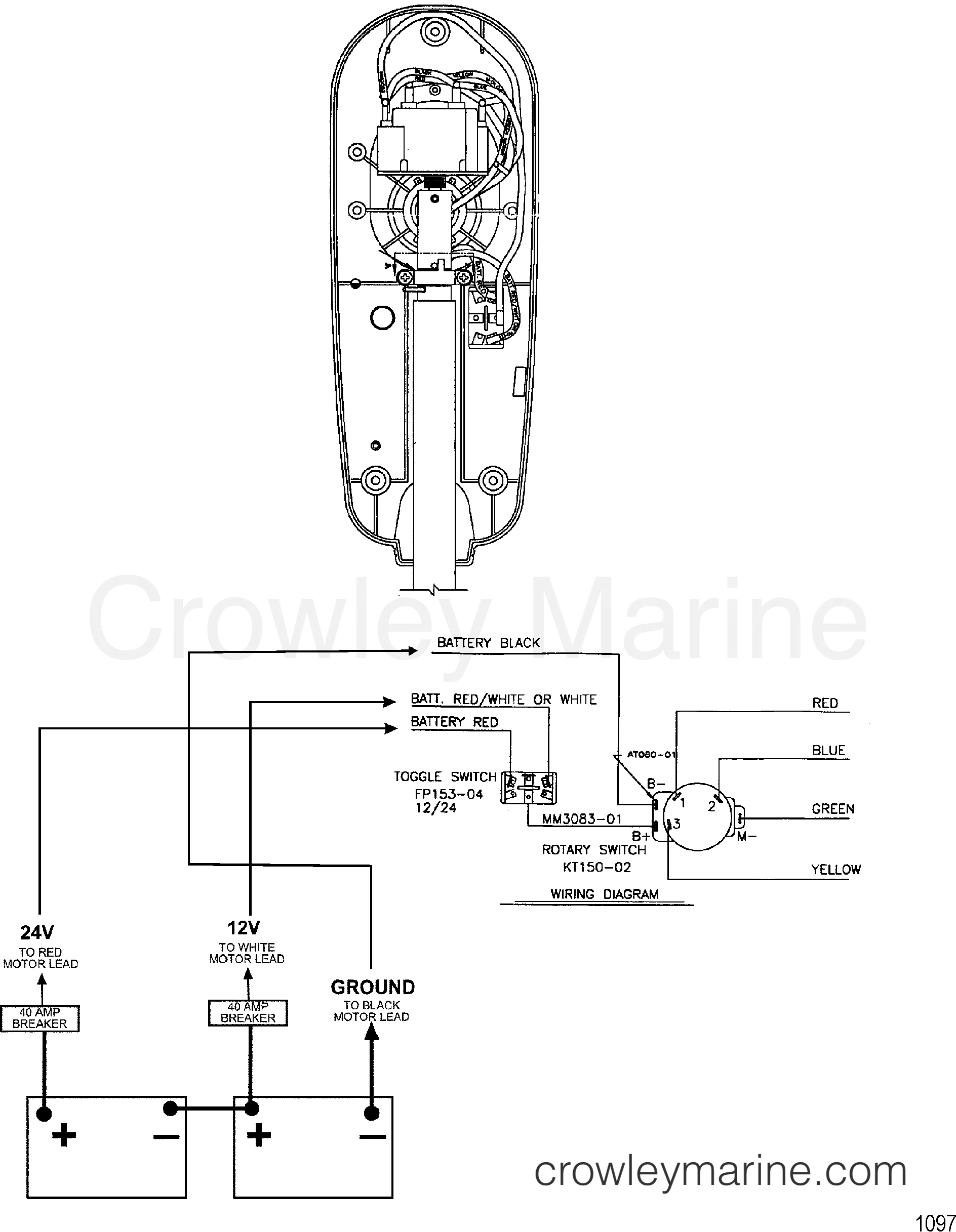

Next, connect the positive lead from your trolling motor to the positive terminal of the first battery. Then, connect the negative lead from your trolling motor to the negative terminal of the second battery. This will complete the circuit and allow your trolling motor to draw power from the 24 volt system.
Once you have completed the wiring process, don’t forget to test your setup before hitting the water. Make sure everything is connected properly and that your trolling motor is running smoothly. With this simple wiring diagram, you’ll be ready to enjoy a day of fishing without any electrical hiccups!
Now that you have successfully wired your 24 volt trolling motor, you can hit the water with confidence knowing that your motor is powered up and ready to go. Happy fishing!
