Planning a road trip in your RV and need to hook up to a 50 amp power source? Understanding the wiring diagram for a 50 amp RV plug is essential to ensure everything runs smoothly during your travels.
Whether you’re a seasoned RVer or new to the world of RVing, knowing how to correctly wire a 50 amp plug can prevent any electrical mishaps and keep your appliances running efficiently while on the road.

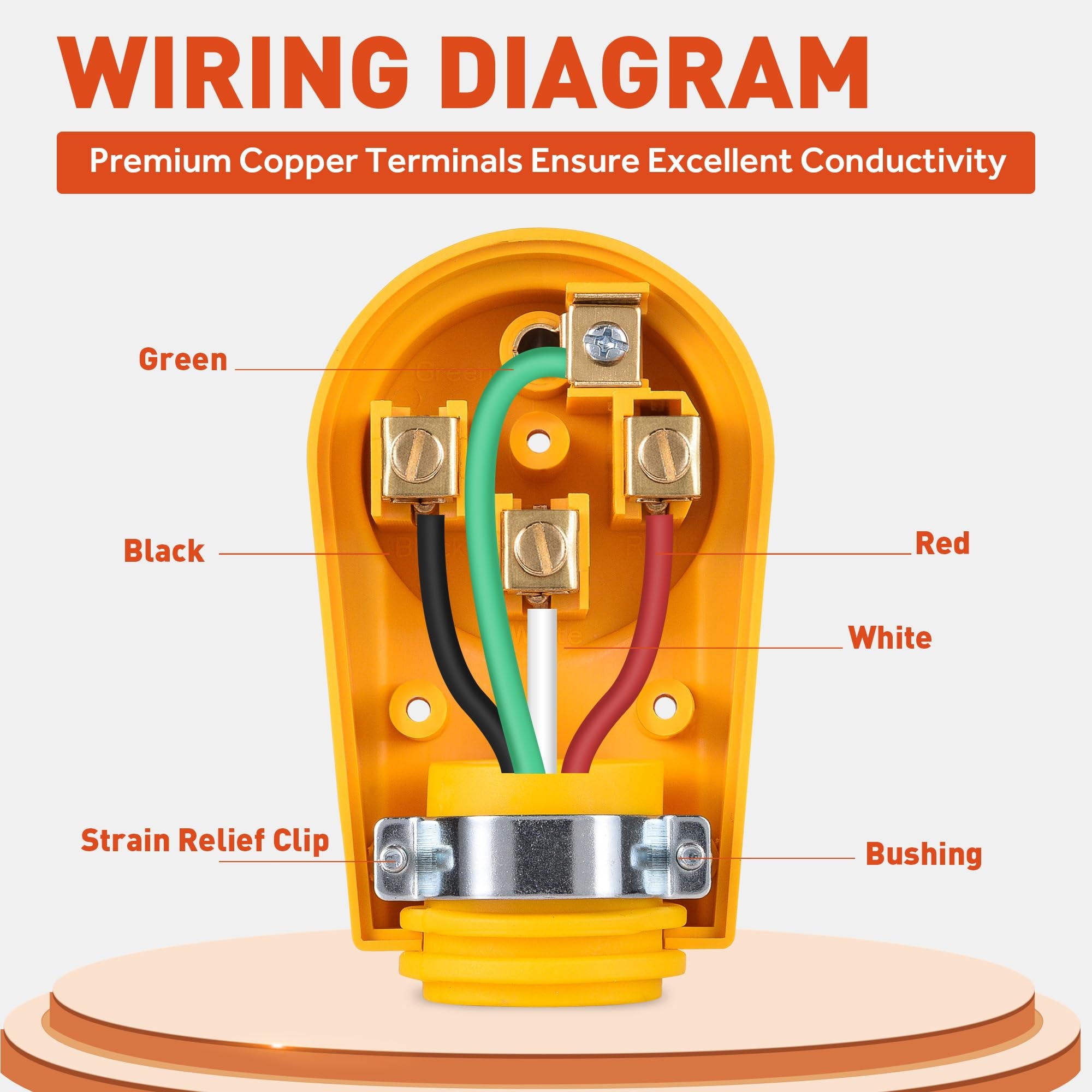

When wiring a 50 amp RV plug, it’s important to follow the color-coding on the plug. The green wire is for the ground connection, the white wire is for the neutral connection, and the two hot wires are typically black and red. Ensuring each wire is connected to the correct prong is essential for safety and proper functionality.
Before connecting your RV to a 50 amp power source, always double-check the wiring diagram to avoid any potential hazards. It’s also recommended to use a surge protector to safeguard your RV’s electrical system from power surges or fluctuations at campsites.
By understanding the wiring diagram for a 50 amp RV plug and following proper installation procedures, you can enjoy a worry-free road trip with all the comforts of home. Remember, safety should always be a top priority when dealing with electrical connections in your RV.
So, next time you’re gearing up for a cross-country adventure in your RV, take the time to review the wiring diagram for a 50 amp RV plug. It may seem like a small detail, but it can make a big difference in the overall functionality and safety of your RV’s electrical system.
