Looking to connect your trailer to your vehicle? A 7 pin plug is the way to go! This handy device allows you to easily hook up your trailer lights, brakes, and more for safe towing on the road.
But if you’re new to towing, figuring out how to wire a 7 pin plug can be a bit overwhelming. Don’t worry, we’ve got you covered with a simple wiring diagram that will have you up and running in no time!
Related Post Electric Trailer Brake Controller Wiring Diagram

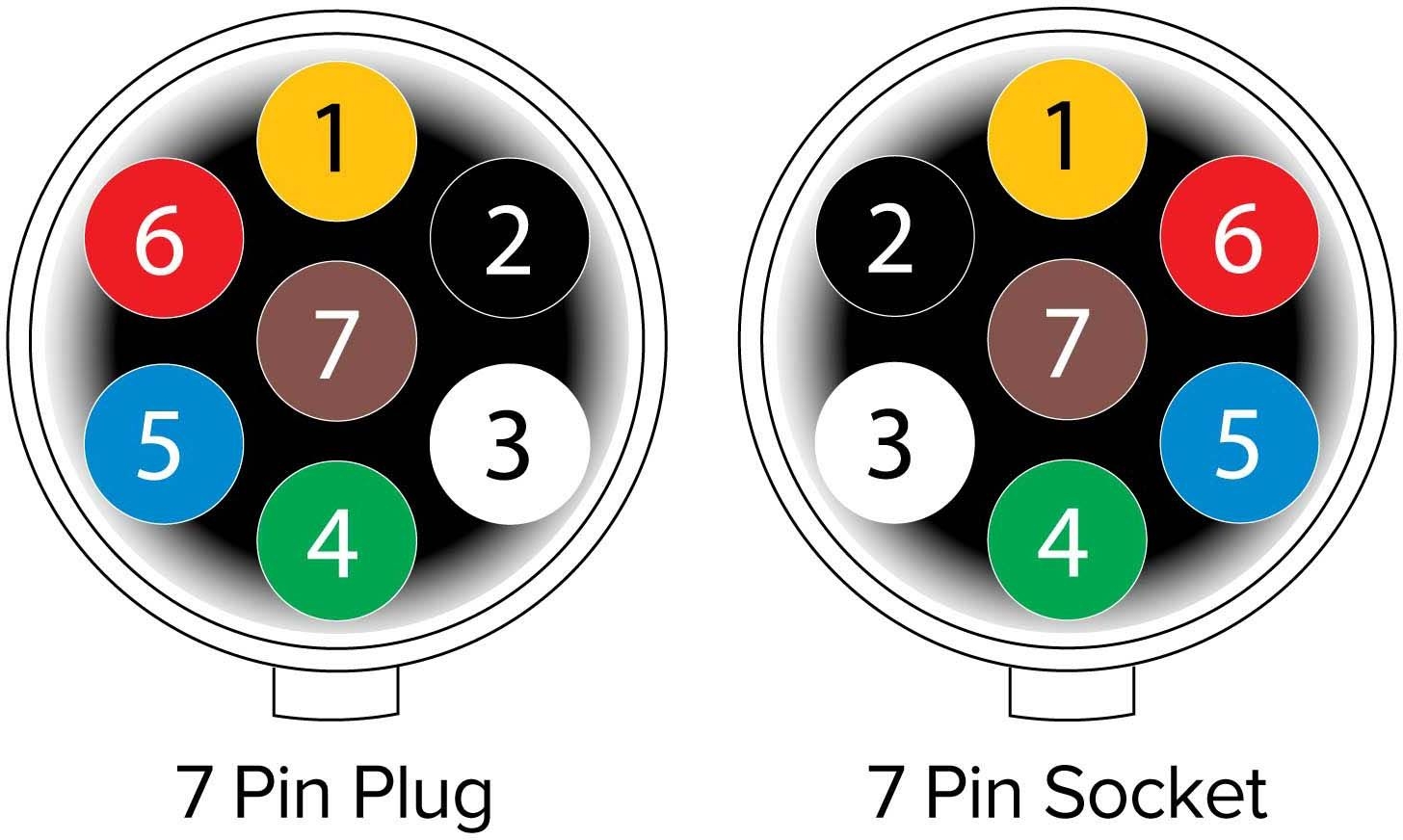

First, identify the pins on your 7 pin plug. Each pin is numbered, so it’s easy to figure out which wire goes where. The most common configuration is for the top pin to be the ground wire, followed by the tail lights, left turn signal, brake lights, right turn signal, electric brakes, and backup lights.
Next, strip the insulation off the end of each wire and connect them to the corresponding pins on the plug. Make sure to secure each connection with electrical tape to prevent any shorts or loose wires. Once everything is connected, give it a test run to make sure all your trailer lights are working properly.
And that’s it! You’re now ready to hit the road with your trailer safely in tow. Remember to always double-check your connections before heading out on your journey, and happy towing!
So there you have it – a simple wiring diagram for a 7 pin plug that will have you towing in no time. With just a few tools and a little bit of know-how, you can easily connect your trailer to your vehicle and hit the road with confidence. Safe travels!
