Looking to hook up your trailer and need a wiring diagram on the trailer plug? You’ve come to the right place! Whether you’re a newbie or a seasoned pro, understanding how to wire your trailer plug is essential for a safe and smooth towing experience.
Having a solid understanding of your trailer plug wiring diagram can save you time, money, and headaches down the road. It ensures that all your lights, brakes, and other electrical components work properly, keeping you and others on the road safe.
Related Post Baldor Motor Wiring Diagrams 3 Phase
Next, gather the necessary tools for the job, including wire strippers, electrical tape, and a voltage tester. It’s important to have the right tools on hand to ensure a clean and secure connection when wiring your trailer plug.
Follow the color-coding on your trailer plug wiring diagram to match the correct wires. Typically, the white wire is for ground, the brown wire is for tail lights, the yellow wire is for left turn/brake lights, and the green wire is for right turn/brake lights.
Once you’ve connected all the wires according to the wiring diagram on the trailer plug, use a voltage tester to check each function. Test your tail lights, brake lights, turn signals, and any other electrical components to ensure everything is working as it should.
With your trailer plug properly wired and tested, you’re ready to hit the road with confidence. Remember, proper wiring is crucial for safe towing, so always double-check your connections before setting off on your next adventure.
Now that you have a better understanding of wiring diagram on trailer plug, you can tackle this task with ease. Stay safe, happy towing, and enjoy the journey ahead!

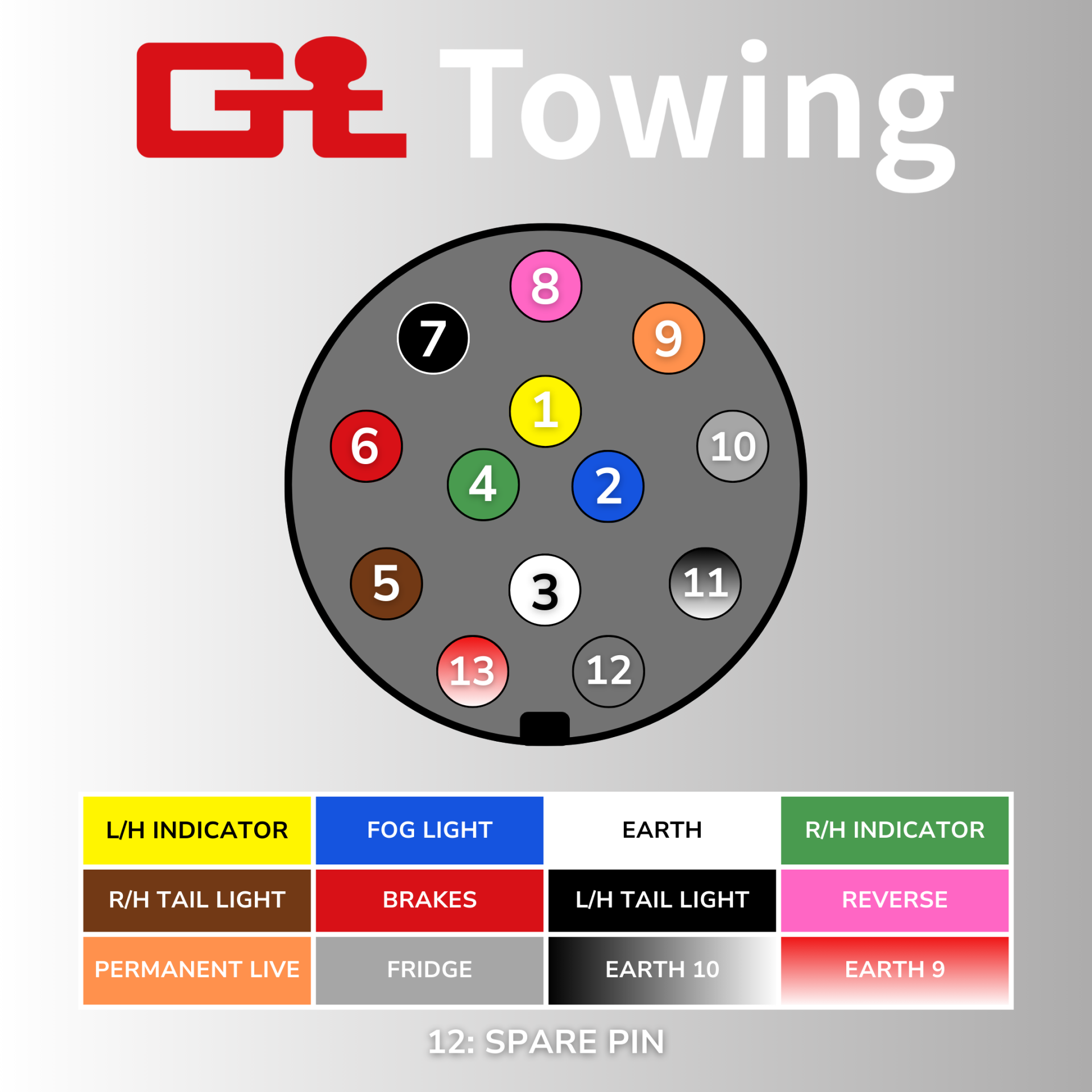

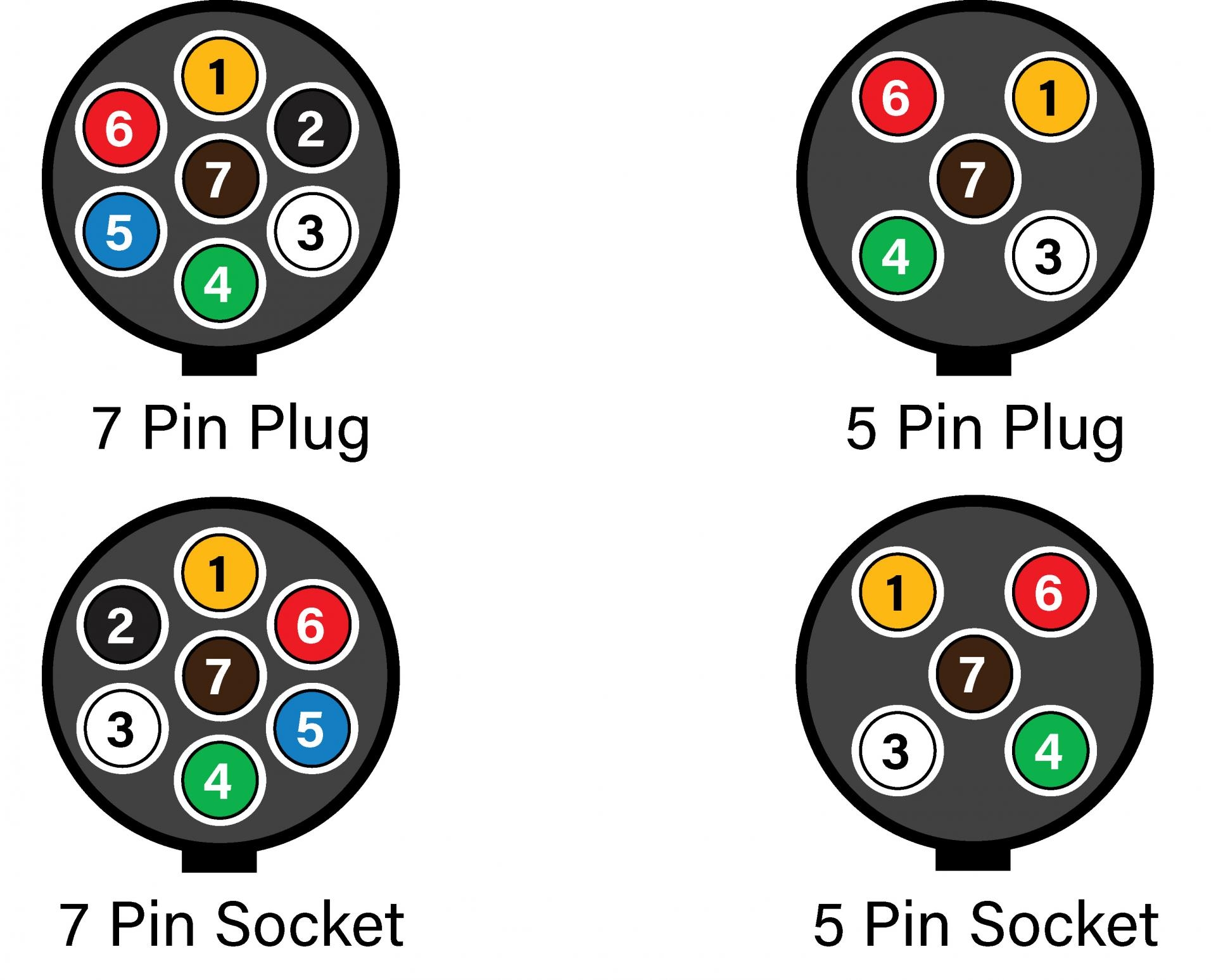

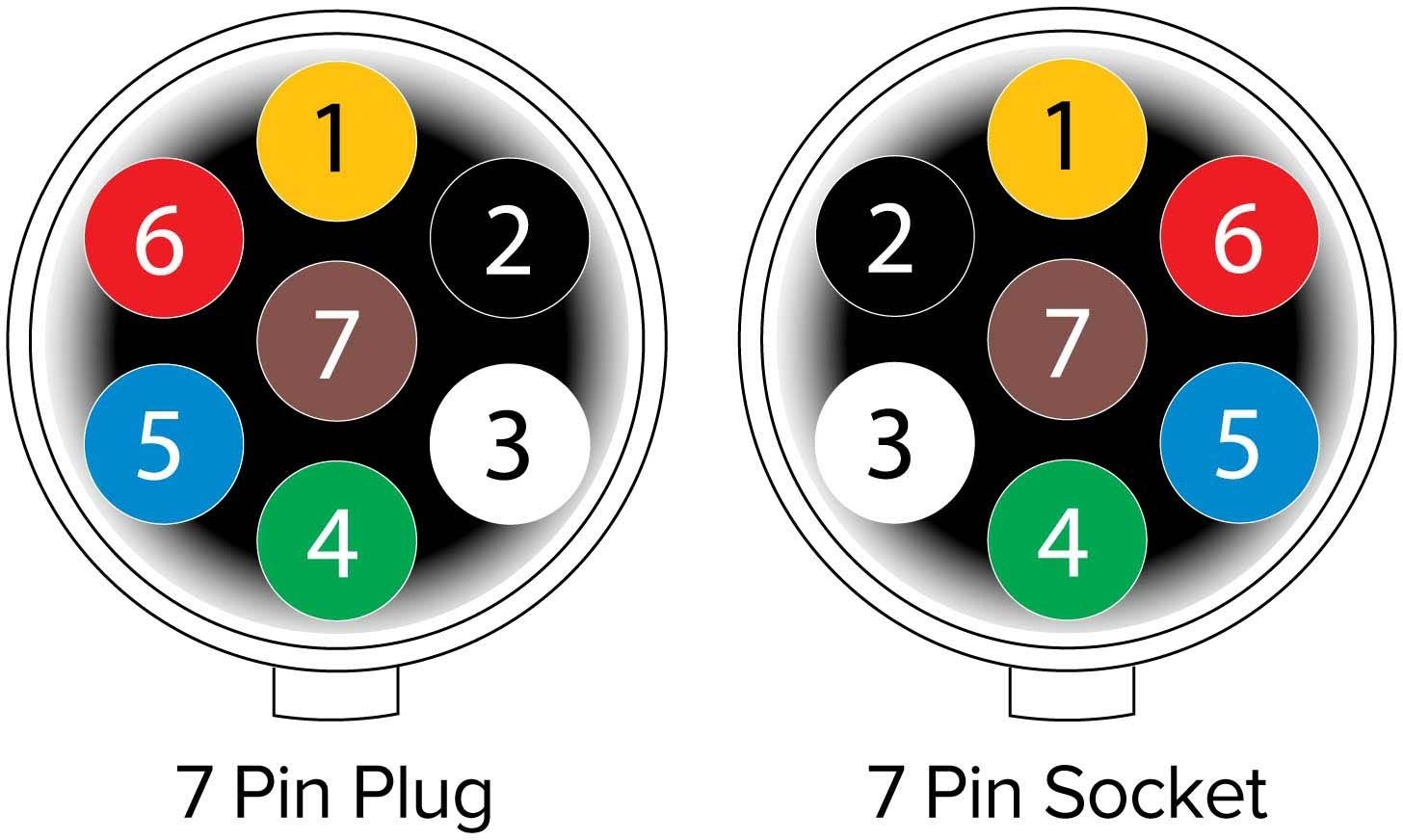

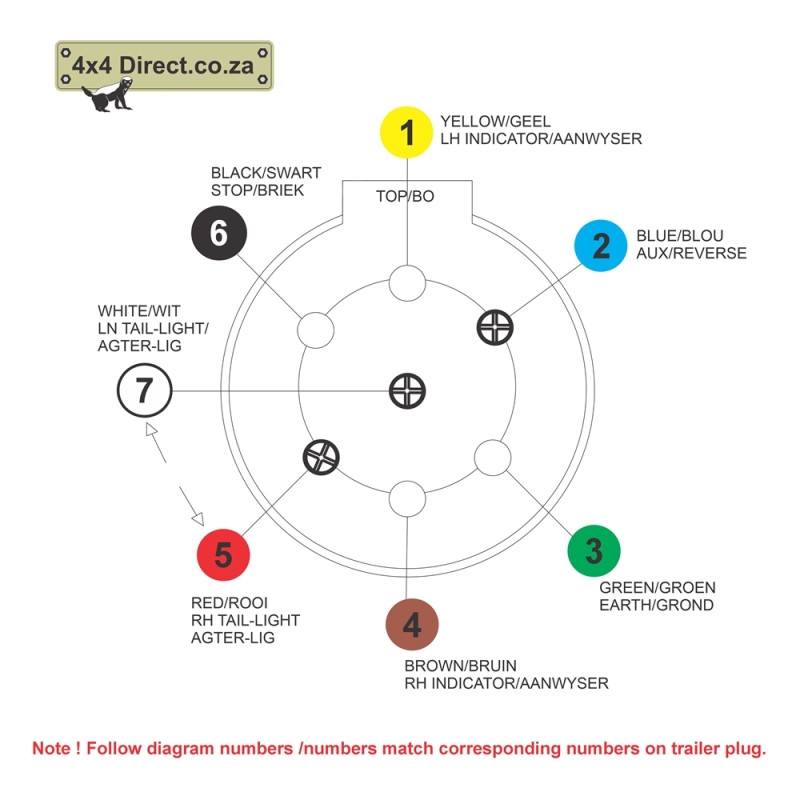

Download and Print Wiring Diagram On Trailer Plug Listed below
