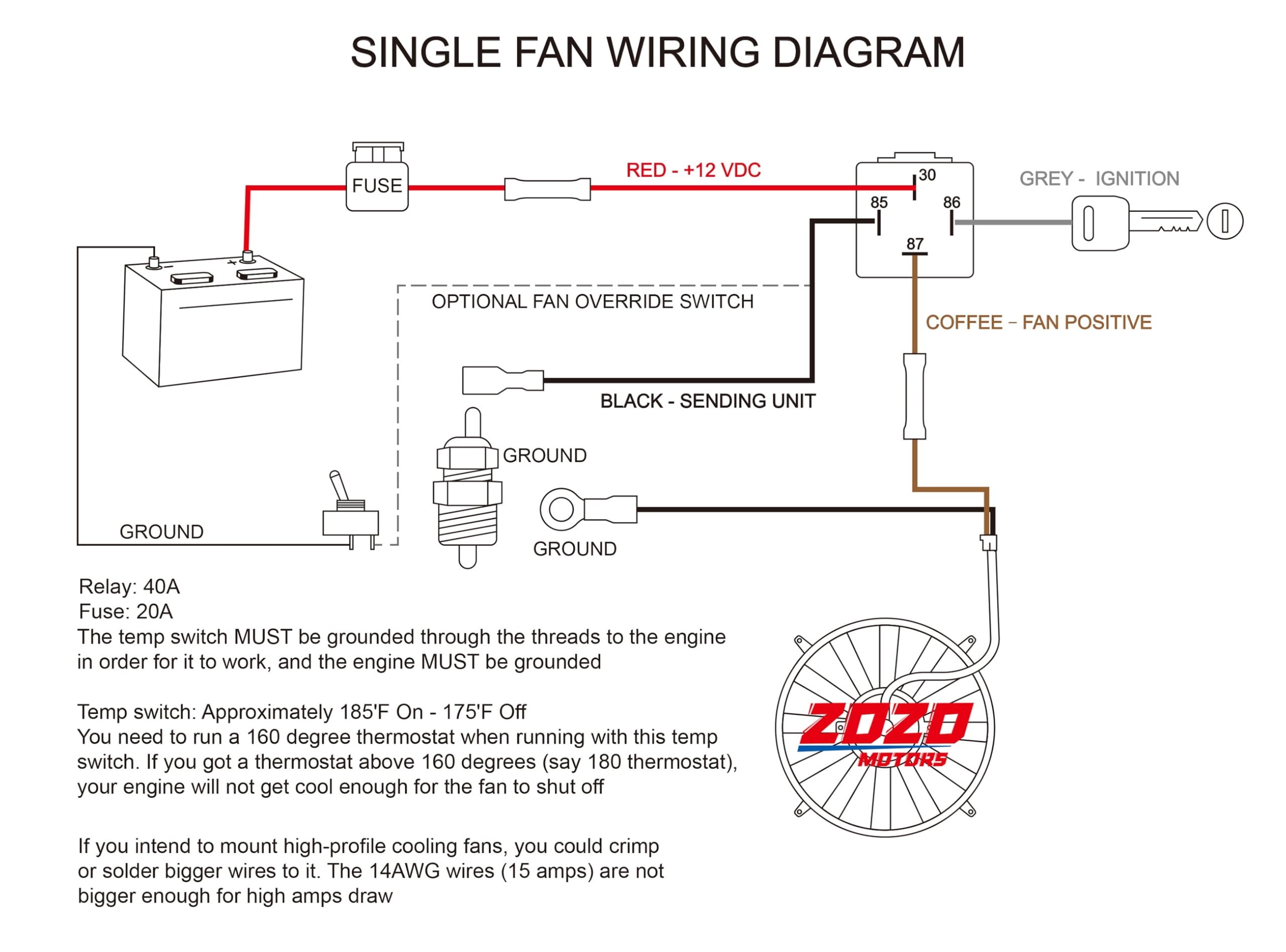

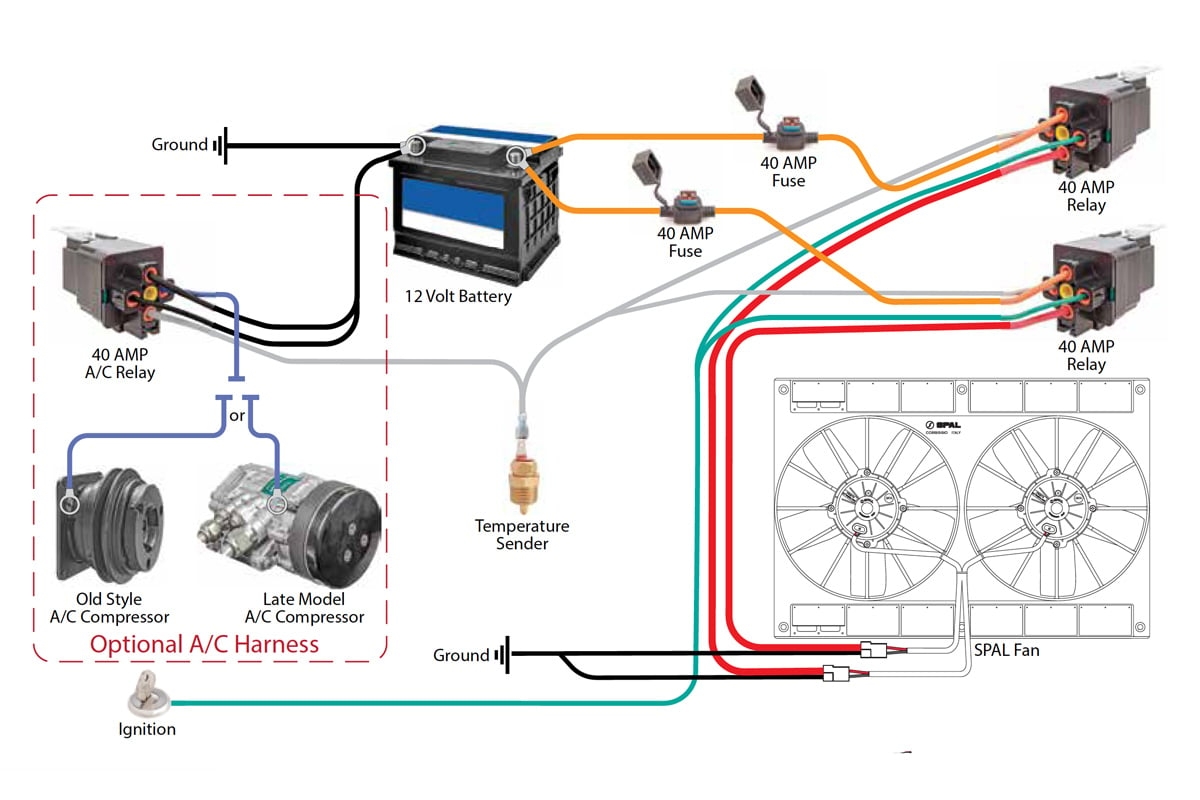

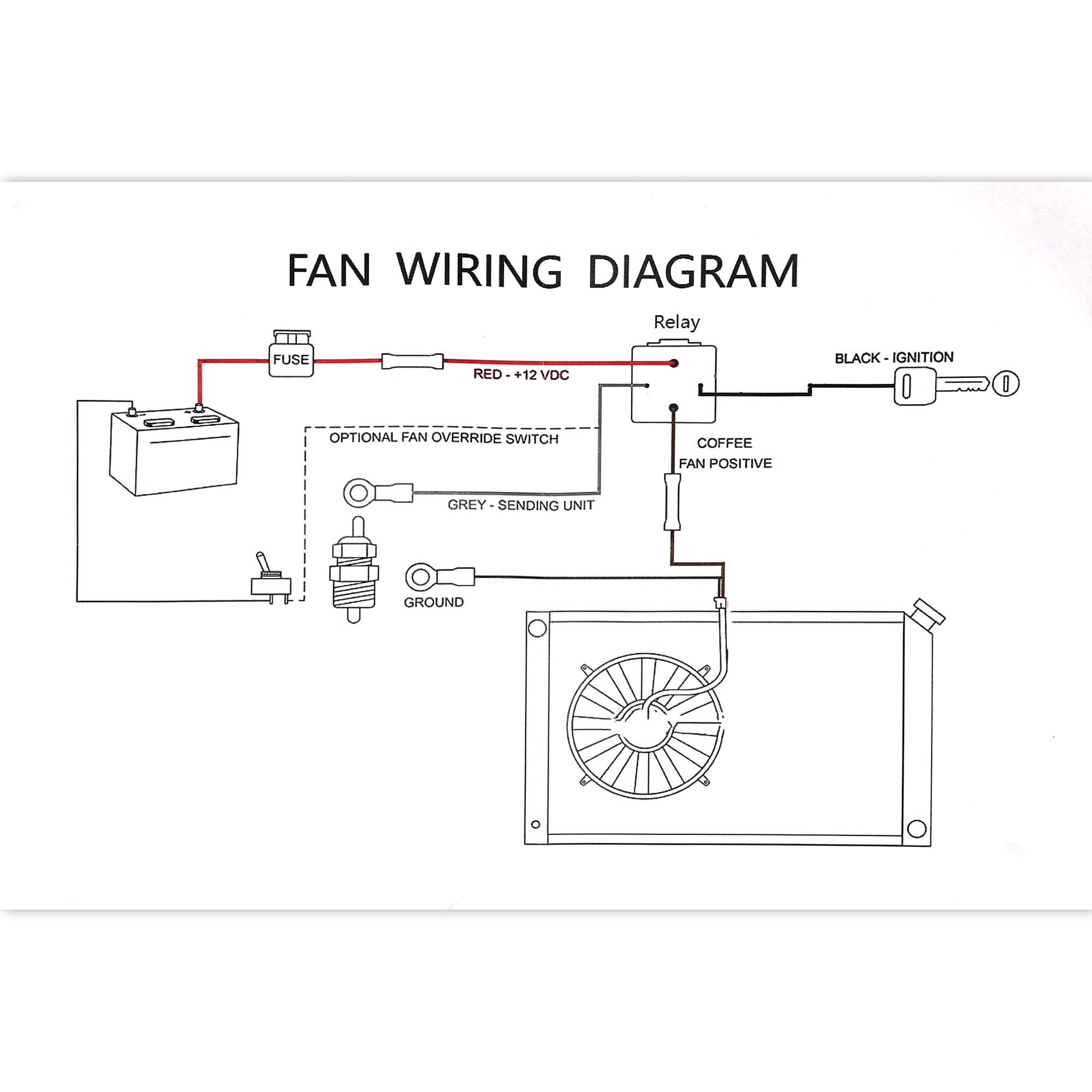

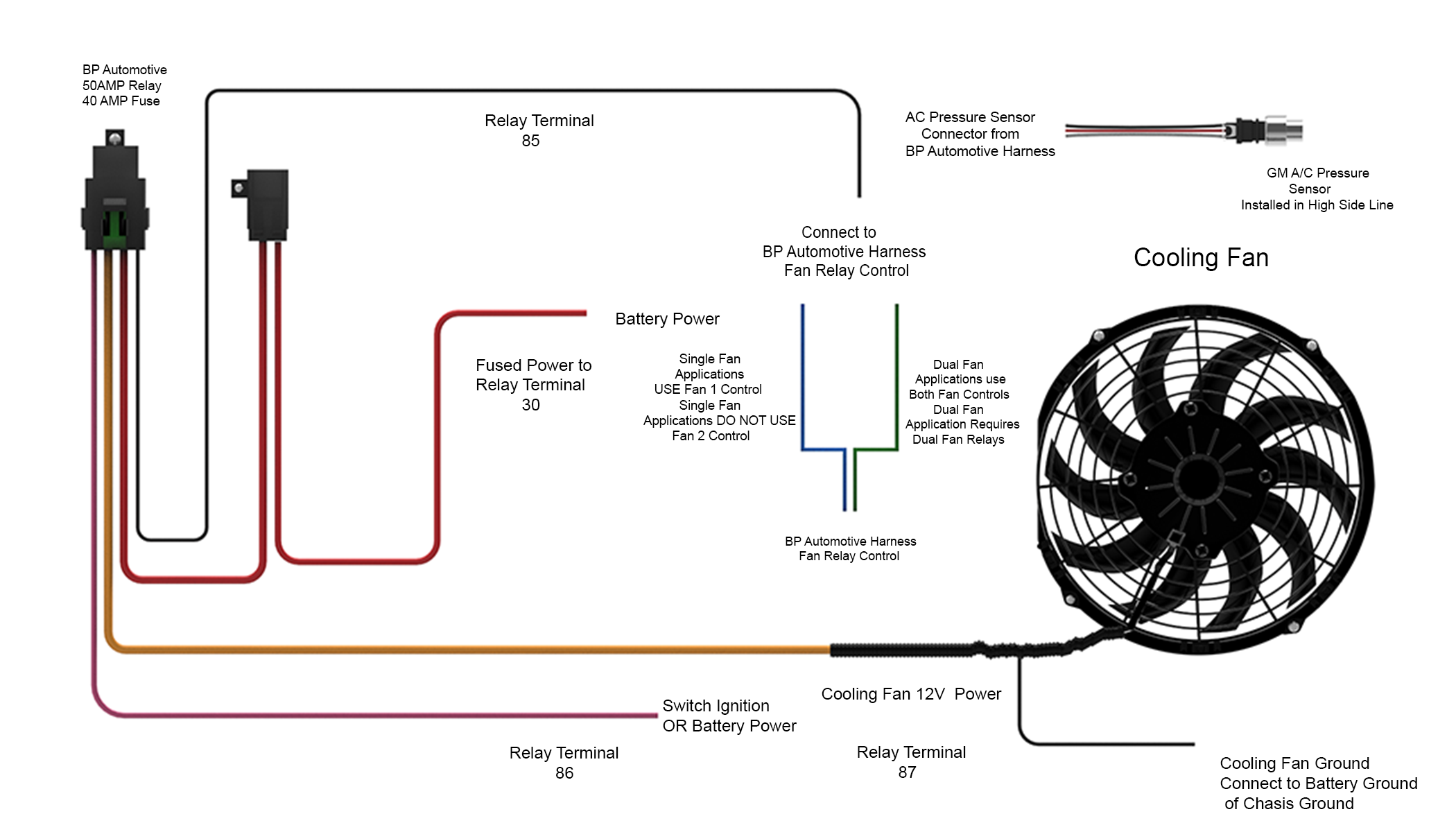

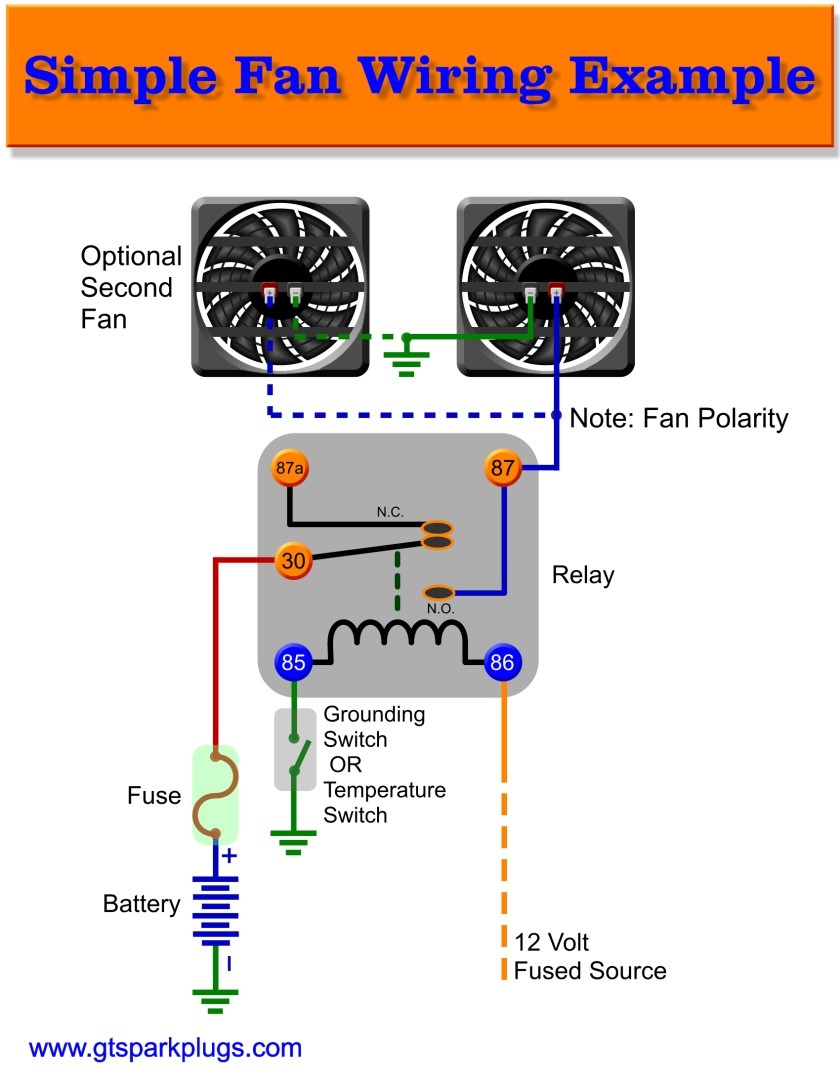

Wiring Electric Fan Relay Diagram

Are you looking to install an electric fan relay in your vehicle but unsure about the wiring diagram? Don’t worry, we’ve got you covered! Wiring an electric fan relay is a simple process that can help keep your engine cool and running smoothly.

By properly wiring the electric fan relay, you can ensure that your engine stays at the optimal temperature, preventing overheating and potential damage. With the right diagram and a few basic tools, you can have your electric fan relay up and running in no time.

Next, you’ll need to connect the power source to the relay. This is usually done by connecting a wire from the positive terminal of the battery to the “B+” terminal on the relay. Make sure to use the appropriate gauge wire to handle the current load.

After connecting the power source, you’ll need to wire the relay to the electric fan. This is typically done by connecting one wire from the “fan” terminal on the relay to the positive terminal on the fan motor. Then, connect the other wire from the fan motor to a ground source.

Finally, you’ll need to connect the relay to a temperature sensor or switch. This will allow the relay to turn on the electric fan when the engine reaches a certain temperature. Make sure to follow the manufacturer’s instructions for wiring the temperature sensor correctly.

With the electric fan relay properly wired and installed, you can enjoy the benefits of a cooler engine and improved performance. Keep an eye on your engine temperature gauge to ensure everything is working correctly. Now you’re ready to hit the road with confidence, knowing your engine is running at its best!
