Have you ever needed to install a new phone jack in your home or office? Knowing how to wire a 4 wire phone jack can be a handy skill to have. Whether you’re setting up a landline or adding an extra phone line, this guide will help you get the job done.
Understanding the wiring diagram for a 4 wire phone jack is essential to ensure proper installation. By following the correct steps and using the right tools, you can easily set up your phone line without any hassle. Let’s dive into the details of how to wire a 4 wire phone jack.
Related Post Wiring Diagram For A 5 Pin Trailer Plug

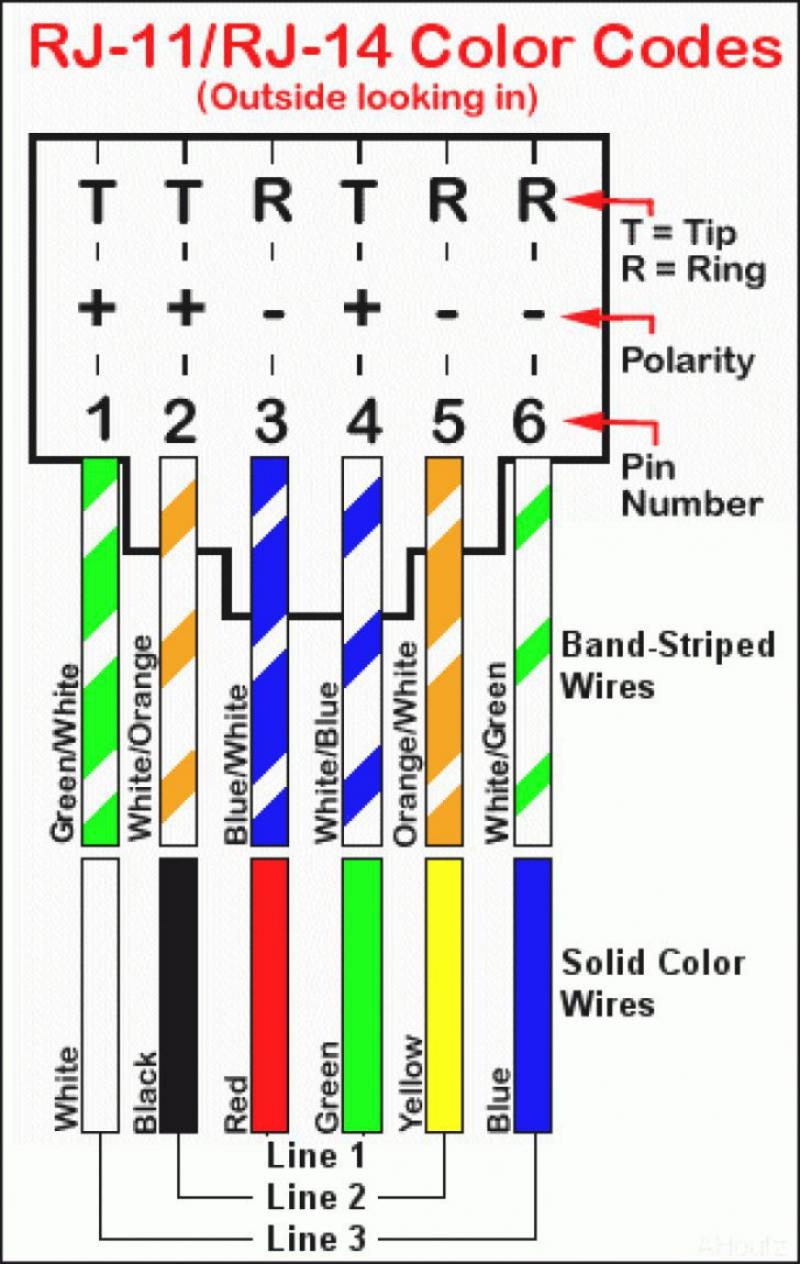

4 Wire Phone Jack Wiring Diagram
To begin, you’ll need a few tools such as a screwdriver, wire stripper, and a 4-wire phone jack. Start by disconnecting the phone line from the main jack. Strip the insulation off the wires and identify the color codes – red, green, yellow, and black.
Next, attach each wire to the corresponding terminal on the 4-wire phone jack. The red wire goes to the red terminal, green to green, yellow to yellow, and black to black. Make sure to tighten the screws securely to ensure a good connection.
Once all the wires are connected, secure the phone jack to the wall or baseboard using screws. Plug in your phone line and test the connection by making a call. If everything is set up correctly, you should hear a dial tone and be able to make and receive calls without any issues.
Remember to follow safety precautions when working with electrical wiring and always consult a professional if you’re unsure about any steps. With the right tools and knowledge, wiring a 4 wire phone jack can be a simple and rewarding DIY project.
In conclusion, knowing how to wire a 4 wire phone jack can come in handy when setting up a new phone line. By following the wiring diagram and using the correct color codes, you can easily install a phone jack in your home or office. With a little patience and effort, you’ll have a functional phone line in no time.
