Are you looking to install a new hot water heater in your home but feeling a bit overwhelmed by all the wiring involved? Don’t worry, we’ve got you covered! In this article, we’ll walk you through a simple and easy-to-understand hot water heater wiring diagram.
Before we dive into the wiring process, it’s important to gather all the necessary tools and materials. You’ll need a voltage tester, wire strippers, electrical tape, wire nuts, and of course, the hot water heater itself. Make sure to turn off the power to the water heater before starting any work.
Related Post Rv Power Inverter Wiring Diagram
Next, locate the junction box on the water heater where the electrical wires will connect. Typically, there will be three wires – a black (hot) wire, a white (neutral) wire, and a green or bare copper (ground) wire. Use your wire strippers to strip the ends of the wires.
Connect the black wire to the black wire, the white wire to the white wire, and the green or bare copper wire to the ground screw. Secure the connections with wire nuts and wrap them with electrical tape for added safety. Once everything is securely connected, you can turn the power back on and test the hot water heater.
If you’re unsure about any part of the wiring process, it’s always best to consult a professional electrician. Safety should always be the top priority when working with electrical systems. By following the manufacturer’s instructions and taking necessary precautions, you can successfully wire your hot water heater and enjoy a reliable source of hot water in your home.
In conclusion, wiring a hot water heater may seem daunting at first, but with the right knowledge and tools, it can be a manageable task. Remember to always prioritize safety, follow the manufacturer’s instructions, and seek professional help if needed. With these tips in mind, you’ll be enjoying hot showers in no time!

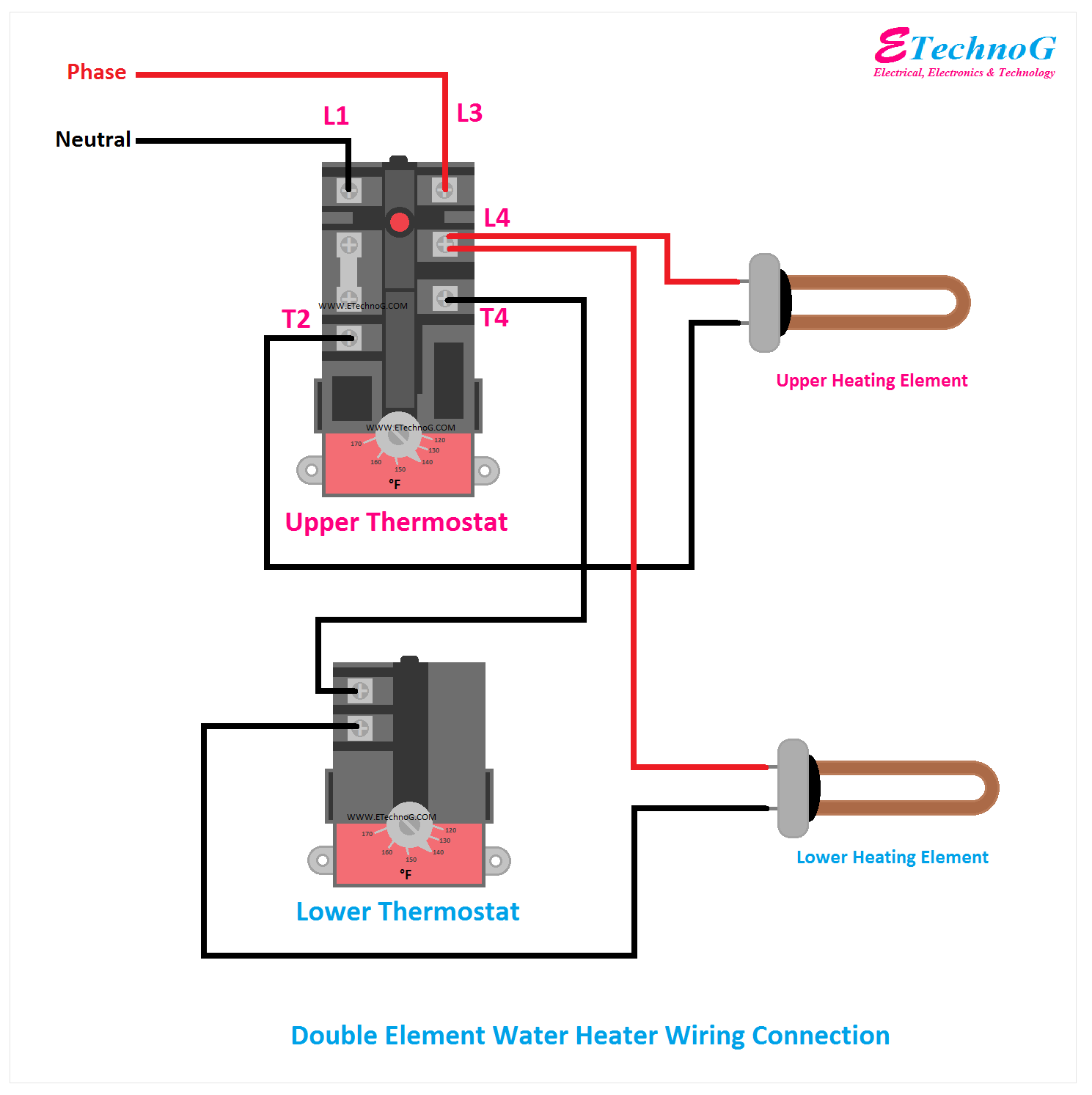

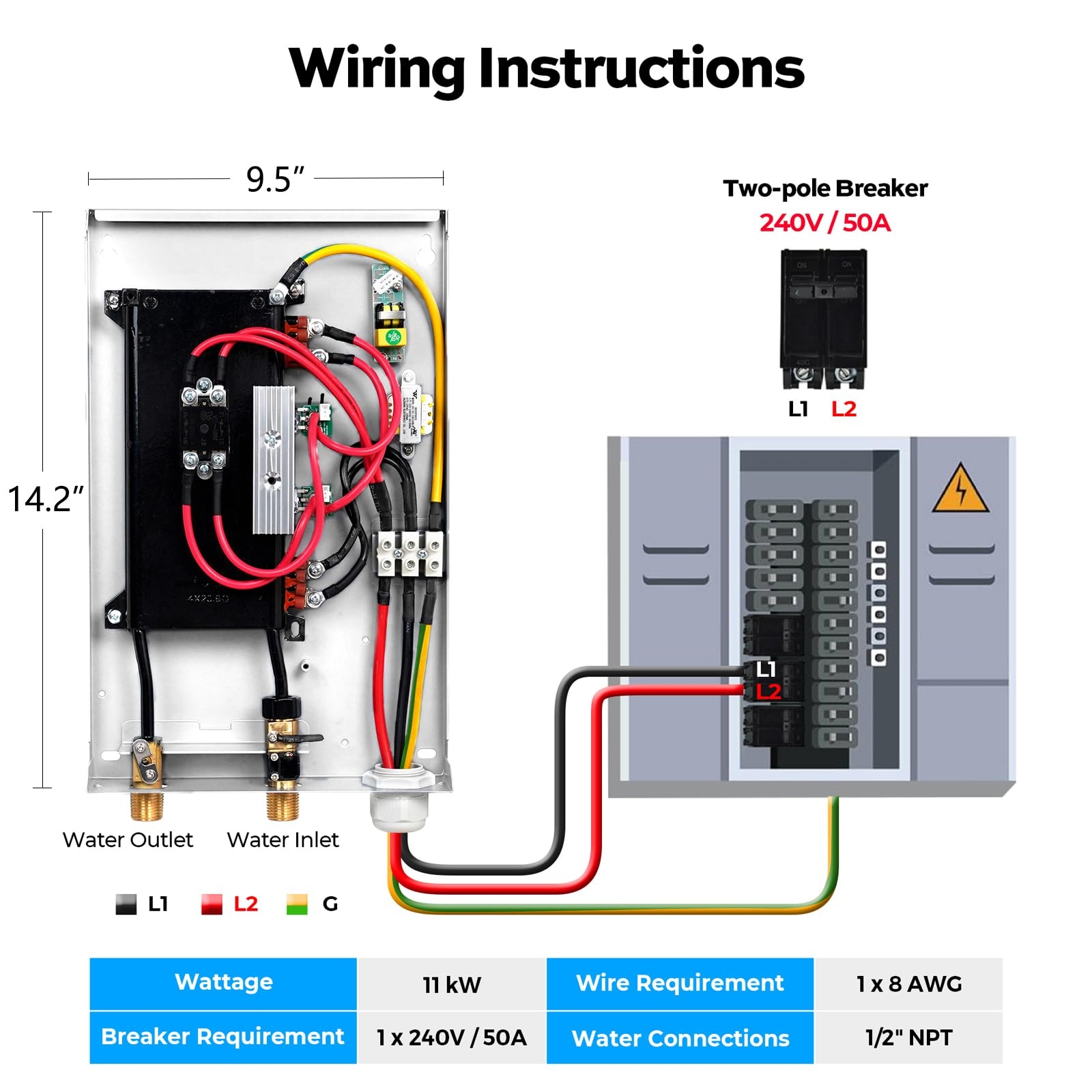

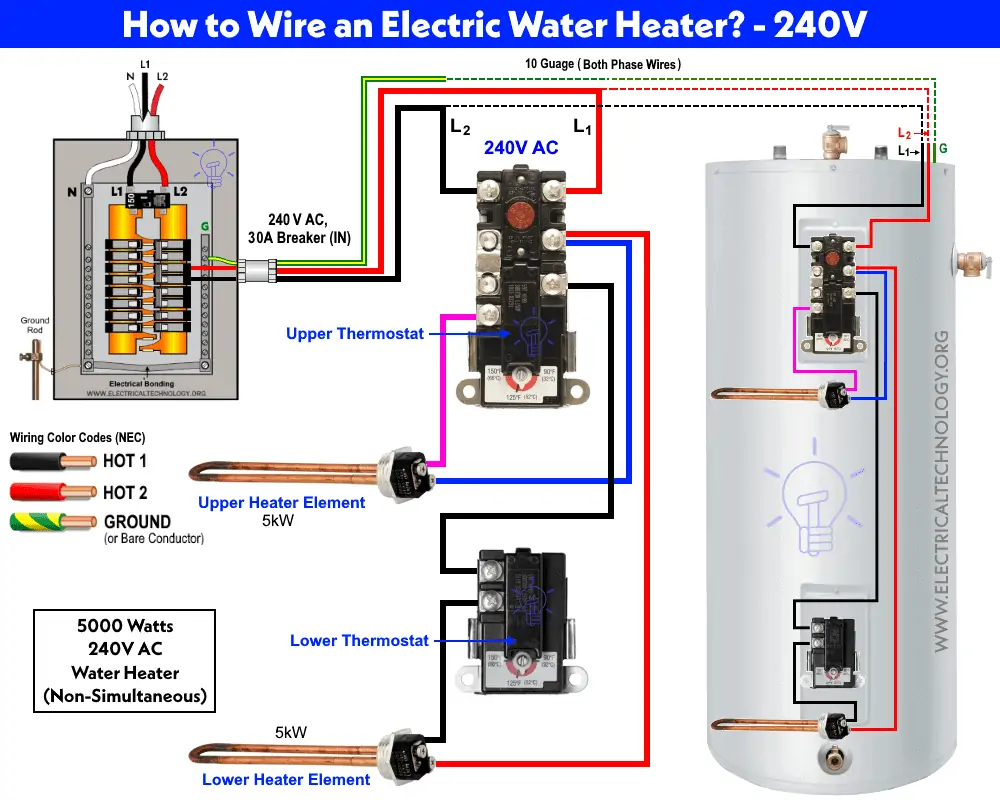

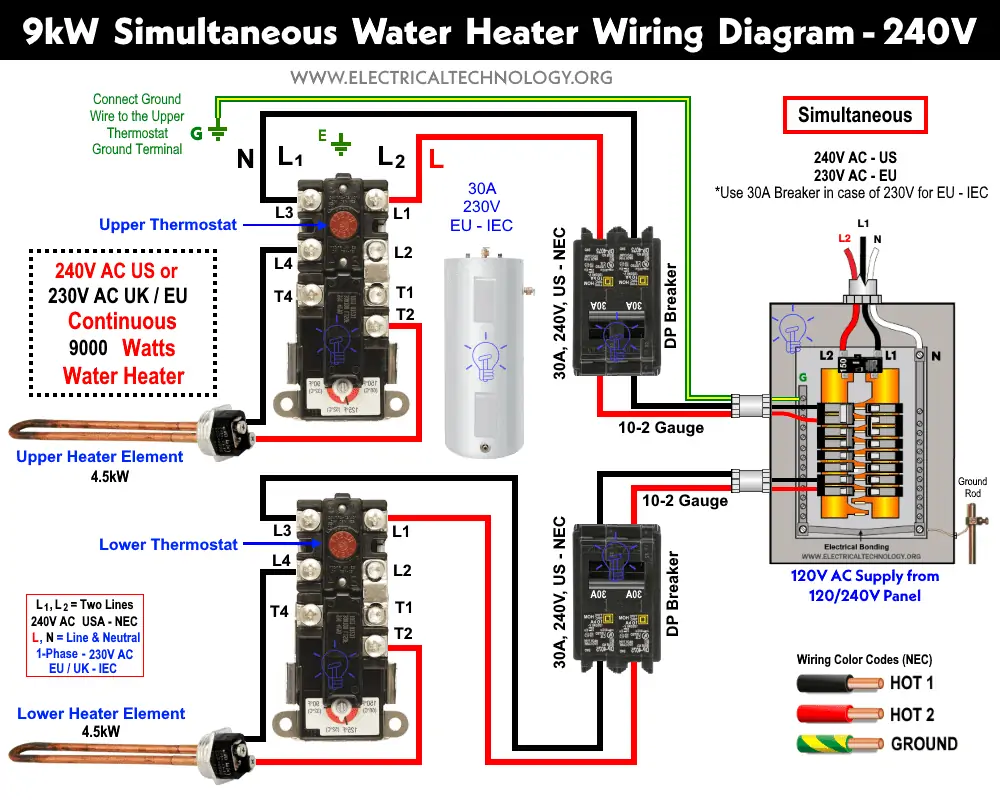

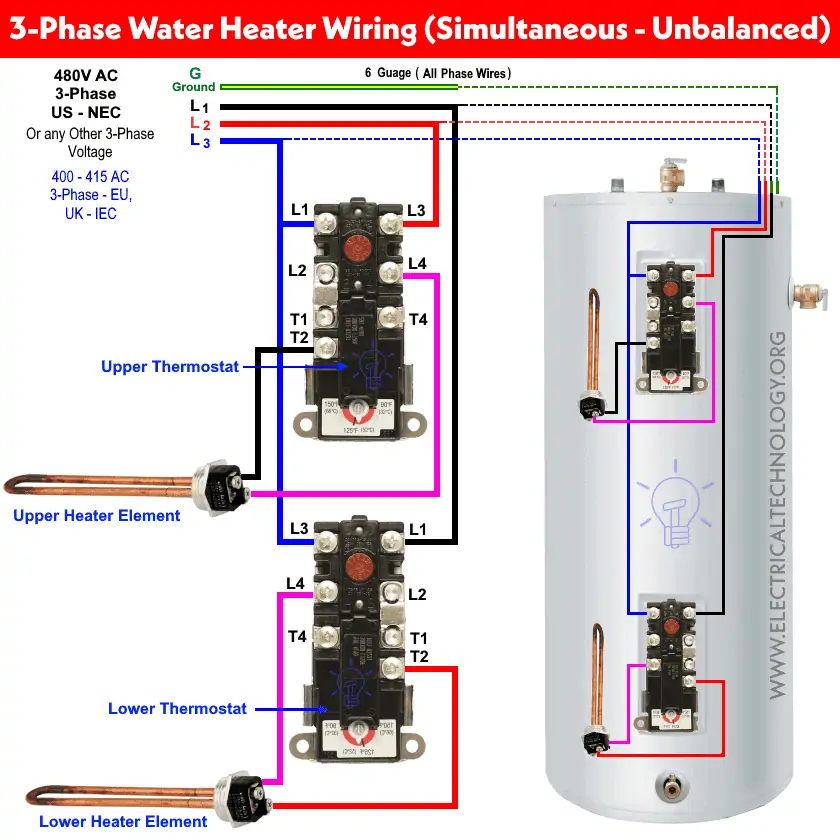

Download and Print Wiring A Hot Water Heater Diagram Listed below
