Looking to set up a new 50 amp plug for your RV or electric vehicle? Understanding the wiring diagram for a 50 amp plug is key to ensuring a safe and efficient installation. Let’s break it down in simple terms!
Whether you’re a seasoned DIY enthusiast or just getting started with electrical projects, having a clear understanding of the wiring diagram for a 50 amp plug is essential. By following the right guidelines, you can complete the installation with confidence and peace of mind.

Related Post Universal Turn Signal Wiring Diagram

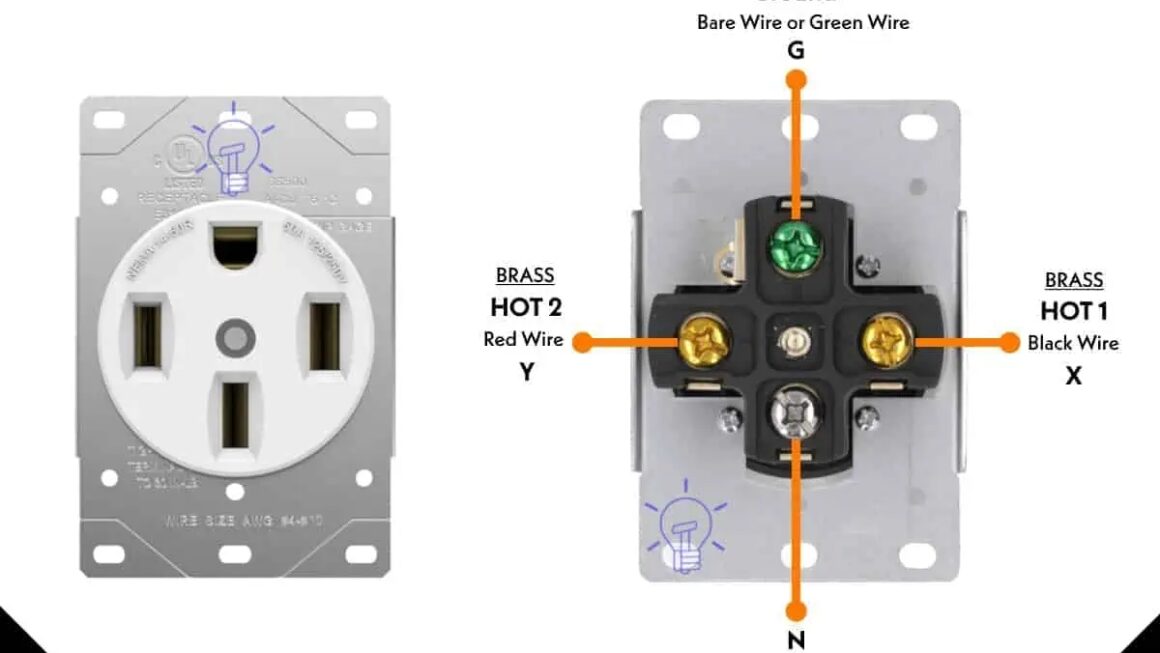

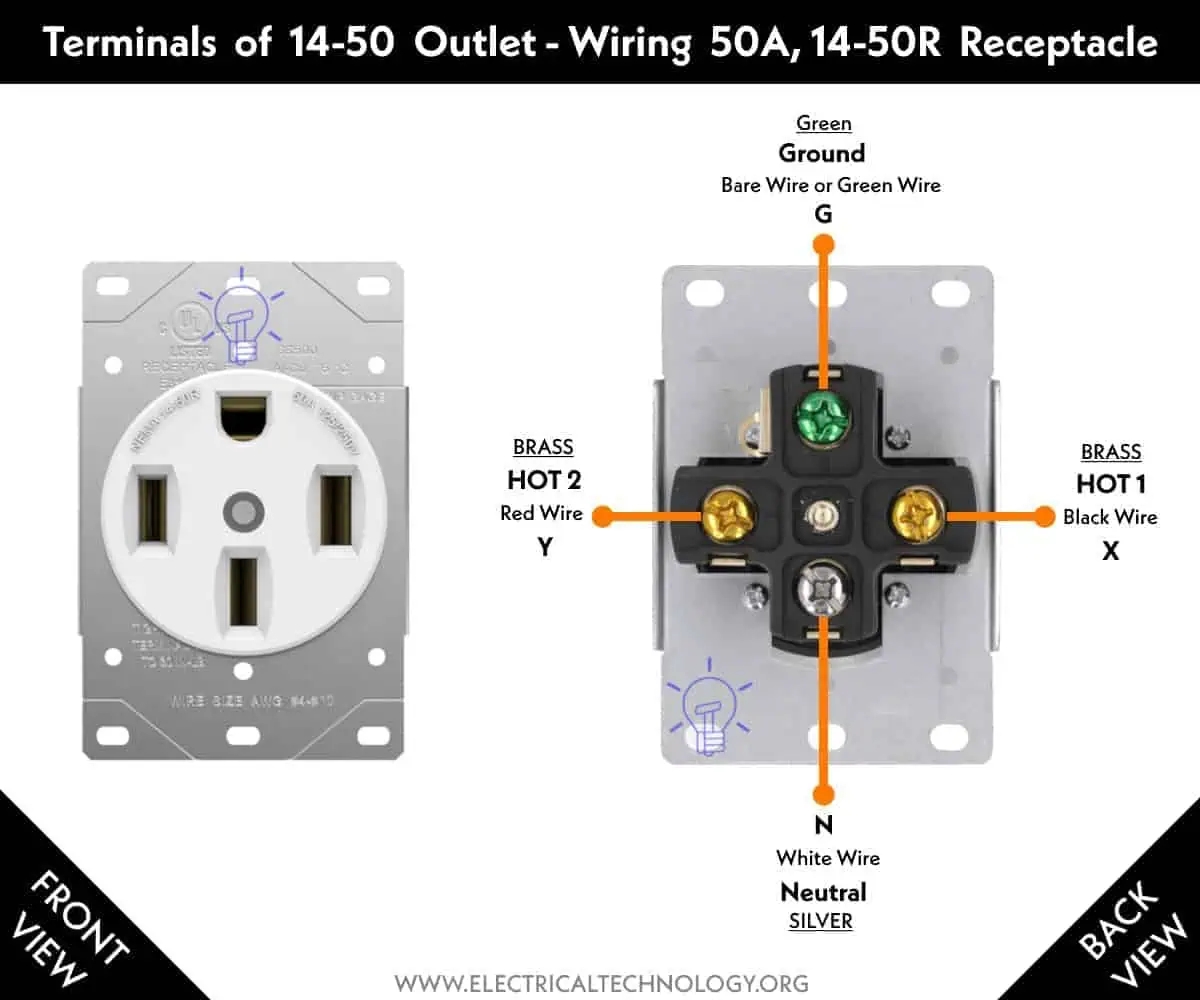

When it comes to wiring your 50 amp plug, it’s important to follow the color-coded guidelines. The hot prongs are usually black and red, the neutral prong is white, and the ground prong is green. Make sure to connect each wire to the correct terminal to avoid any electrical mishaps.
Before you begin the installation process, it’s recommended to turn off the power supply to the circuit you’ll be working on. Safety should always be your top priority when dealing with electrical components. Once you’ve completed the wiring process, double-check all connections to ensure everything is in place.
Once you’ve successfully wired your 50 amp plug according to the diagram, it’s time to test the connection. Plug in your RV or electric vehicle and ensure that everything is functioning as it should. If you encounter any issues, don’t hesitate to seek professional help to avoid any potential dangers.
In conclusion, understanding the wiring diagram for a 50 amp plug is essential for a successful installation. By following the guidelines and safety precautions, you can complete the process with ease. Remember, safety always comes first when working with electricity. Happy wiring!
Download and Print Wiring Diagram For 50 Amp Plug Listed below
