Looking to hook up your trailer to your vehicle? You’ll need a wiring diagram for a 6 pin trailer plug to get the job done right. With the right instructions, you can easily connect your trailer lights and brakes for safe towing.
Whether you’re a seasoned pro or a newbie to trailer wiring, having a clear diagram can make the process a breeze. No more guesswork or confusion – just follow the steps and you’ll be ready to hit the road in no time.

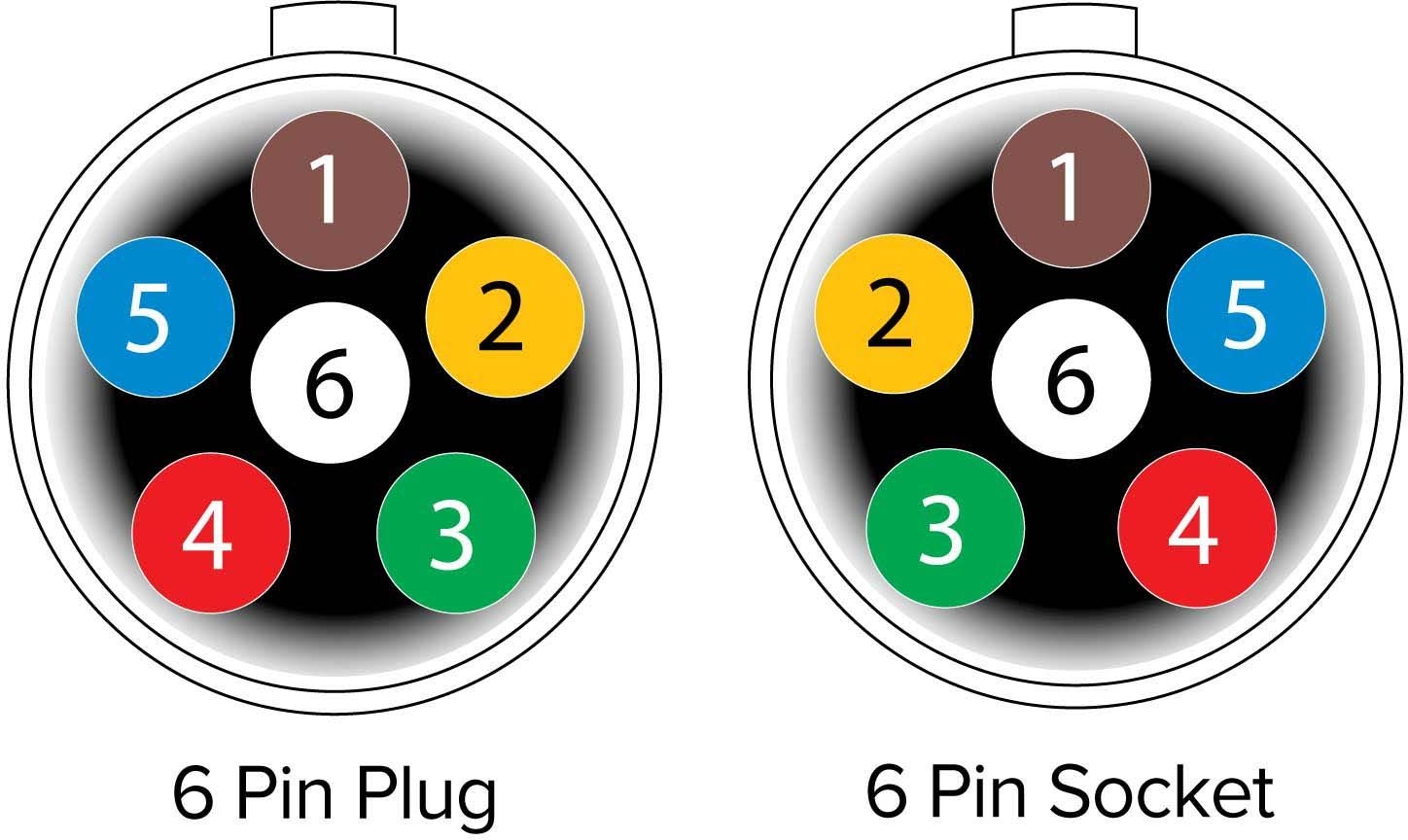

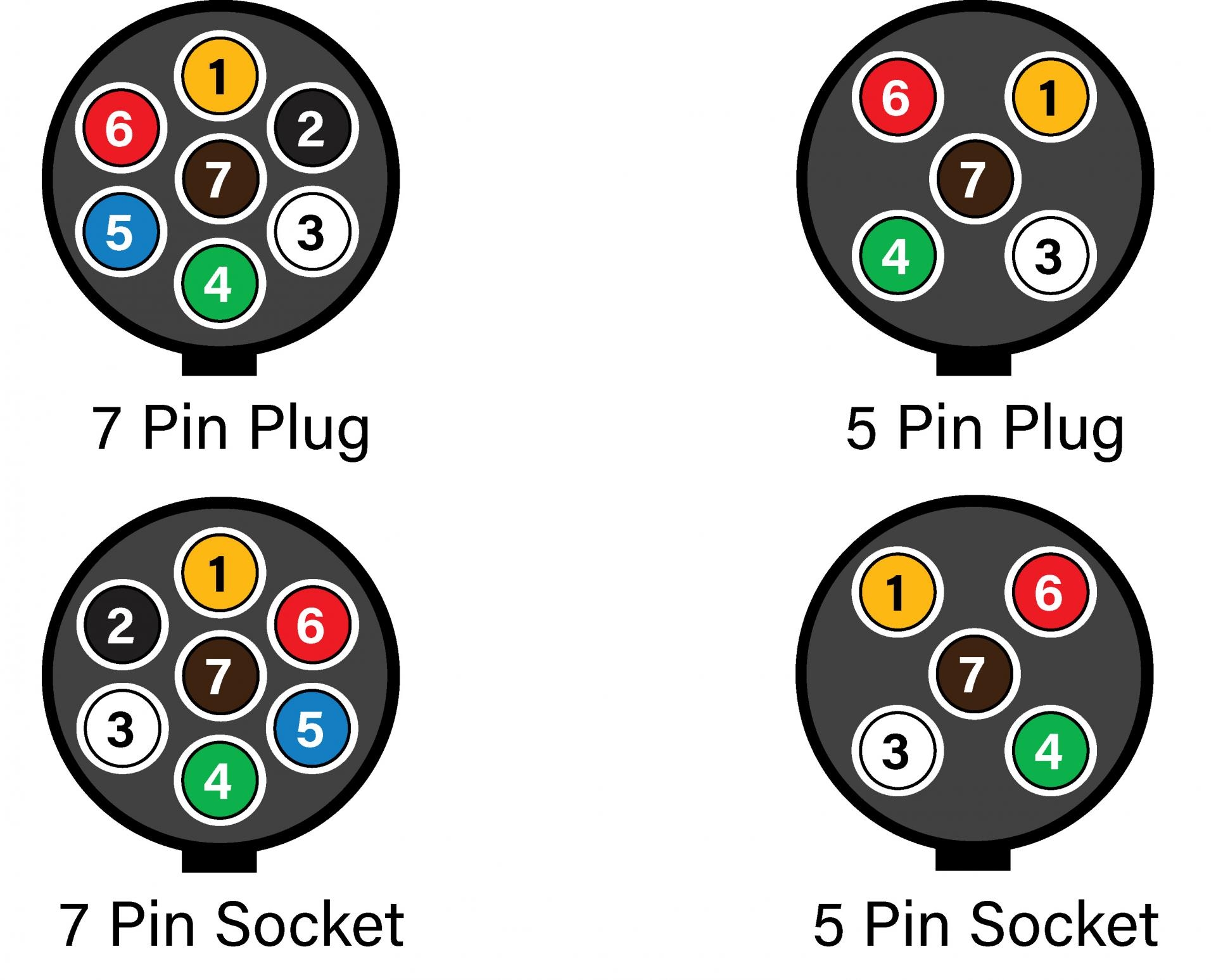

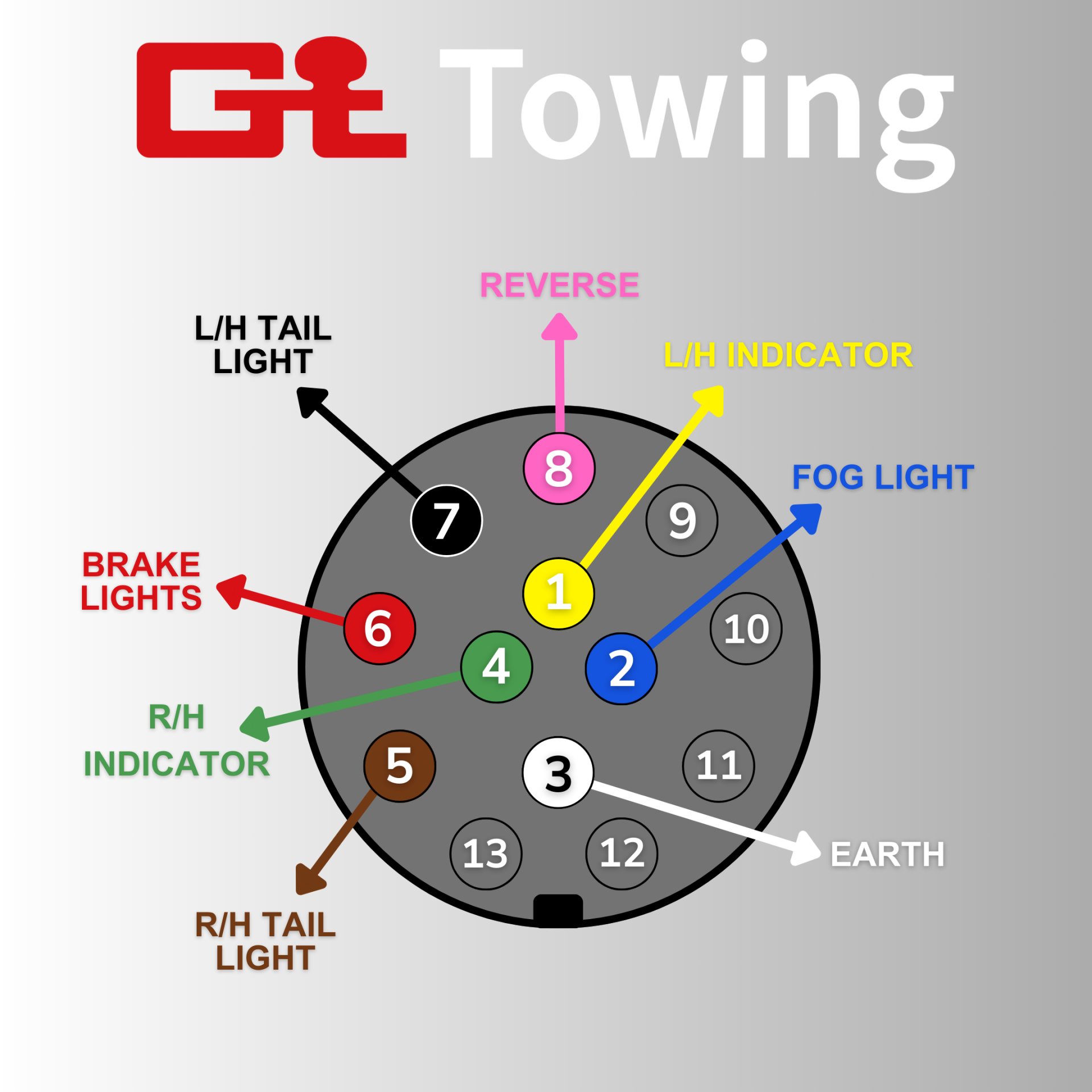

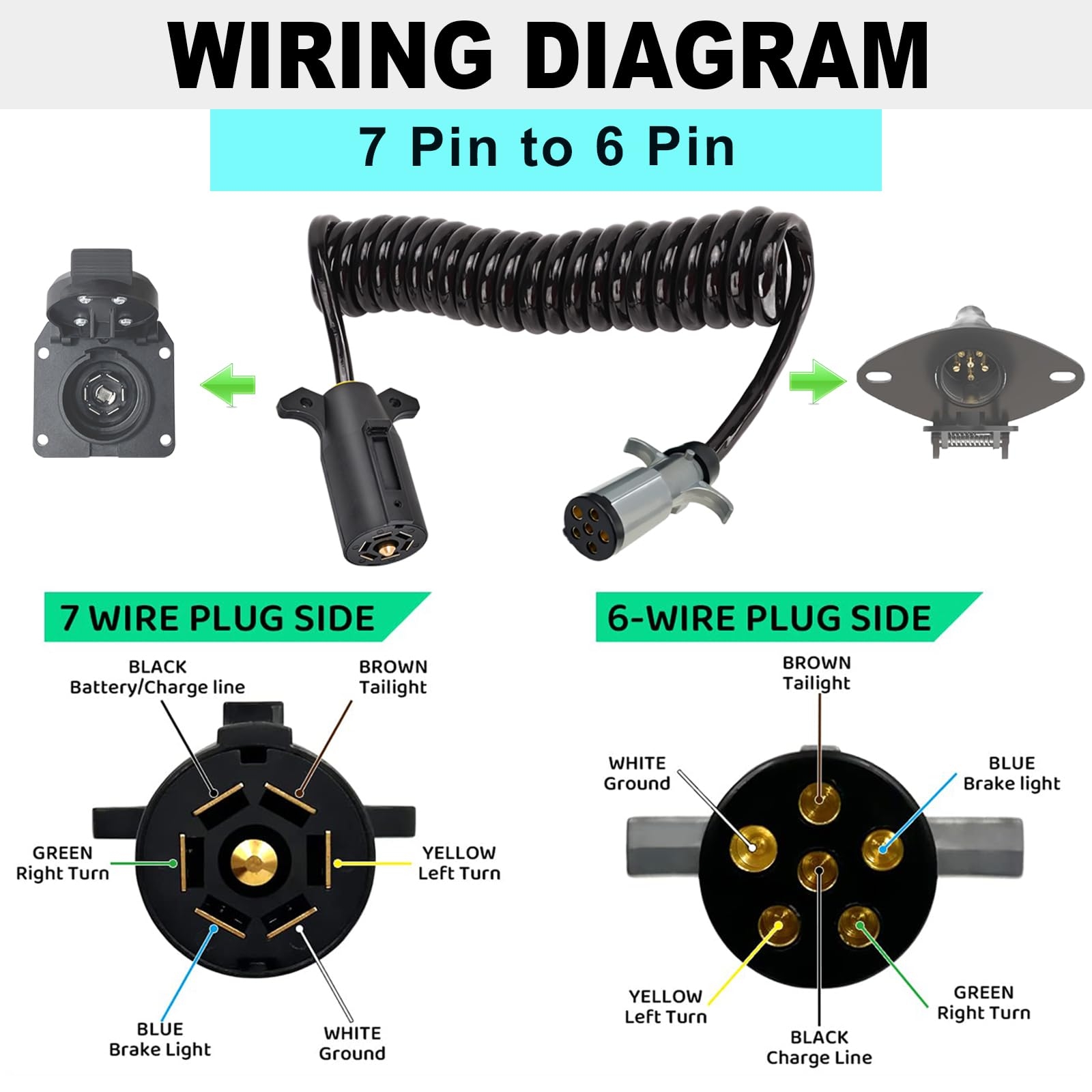

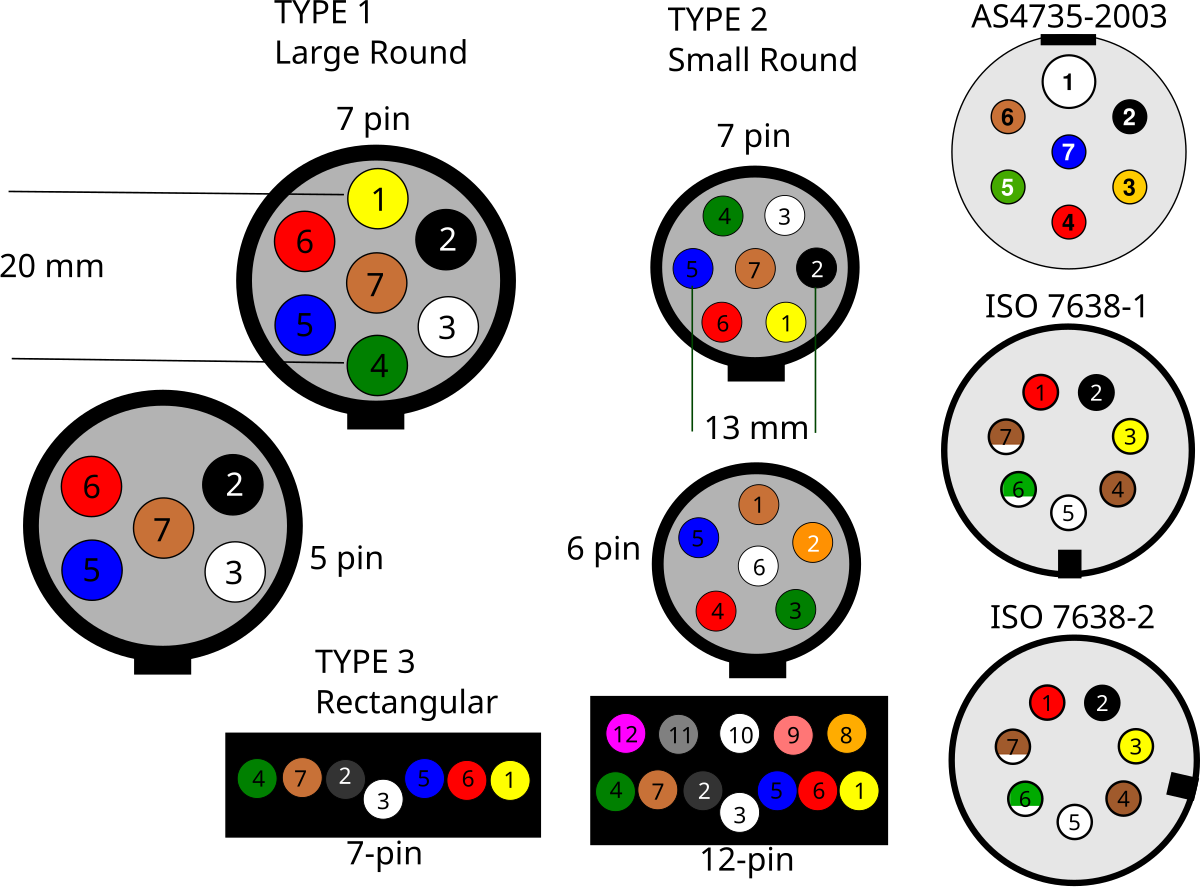

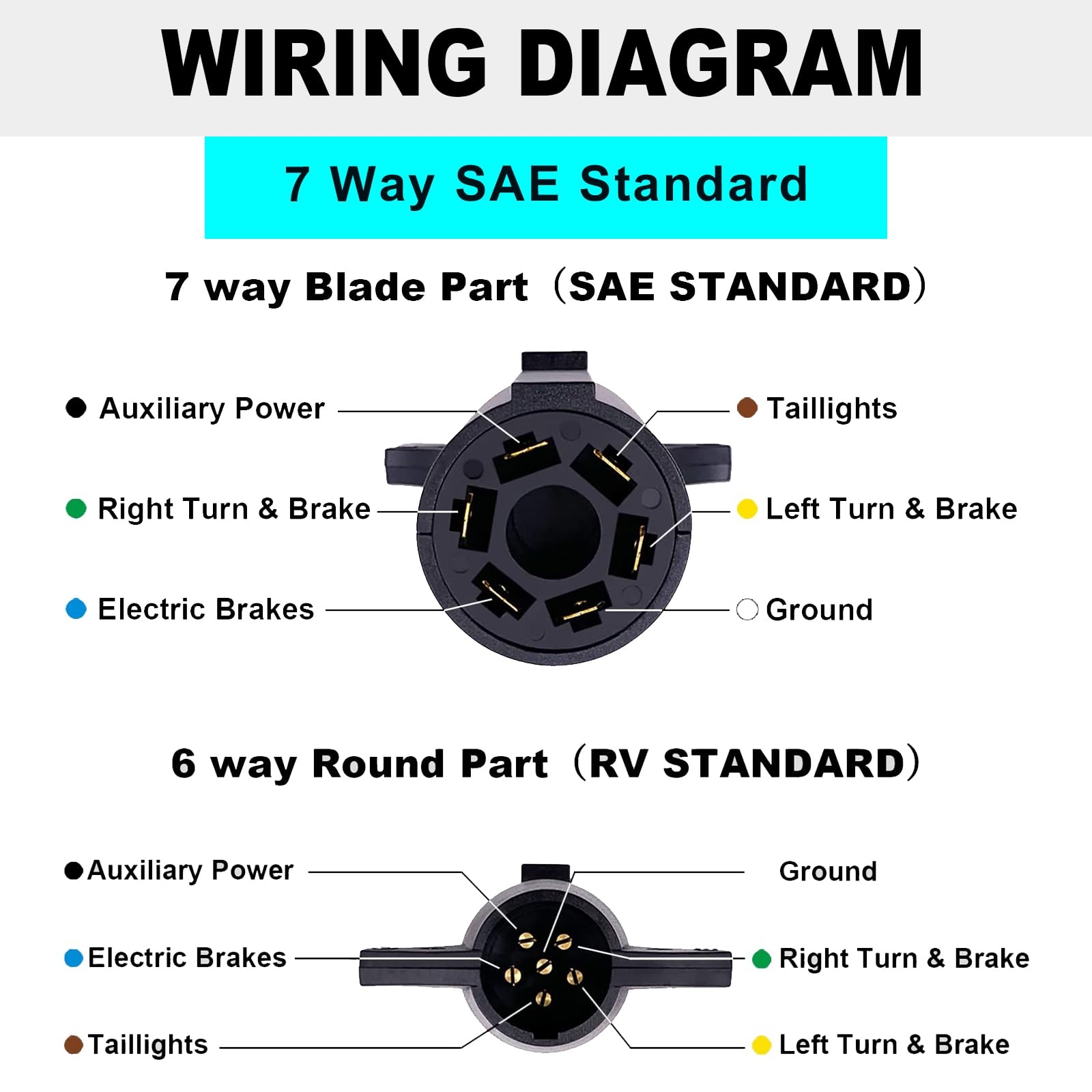

Next, identify the wires on your trailer plug and vehicle socket. The standard color-coding for a 6 pin plug includes white for ground, brown for tail lights, yellow for left turn/brake, green for right turn/brake, blue for electric brakes, and black for 12V power.
Now, it’s time to match up the wires according to the diagram. Connect the corresponding wires from your trailer plug to the appropriate terminals on your vehicle socket. Use crimp connectors or soldering for a secure connection, and wrap each connection with electrical tape for added protection.
Once all the wires are properly connected, test your trailer lights and brakes to ensure everything is working correctly. Make any necessary adjustments and recheck your connections if needed. Once you’re satisfied with the results, secure the wires and plug in place with zip ties or mounting brackets.
With the wiring diagram for a 6 pin trailer plug in hand, you can confidently tackle this DIY project and have your trailer ready for your next adventure. Safe travels!
