Thinking about hooking up a 6-wire trailer plug but not sure where to start? Don’t worry, we’ve got you covered with a simple wiring diagram that will help you get your trailer connected in no time!
Understanding how to wire a 6-wire trailer plug is essential for anyone looking to tow a trailer. Whether you’re hauling equipment for work or heading out on a camping trip, having a properly wired trailer plug is crucial for safety and functionality.

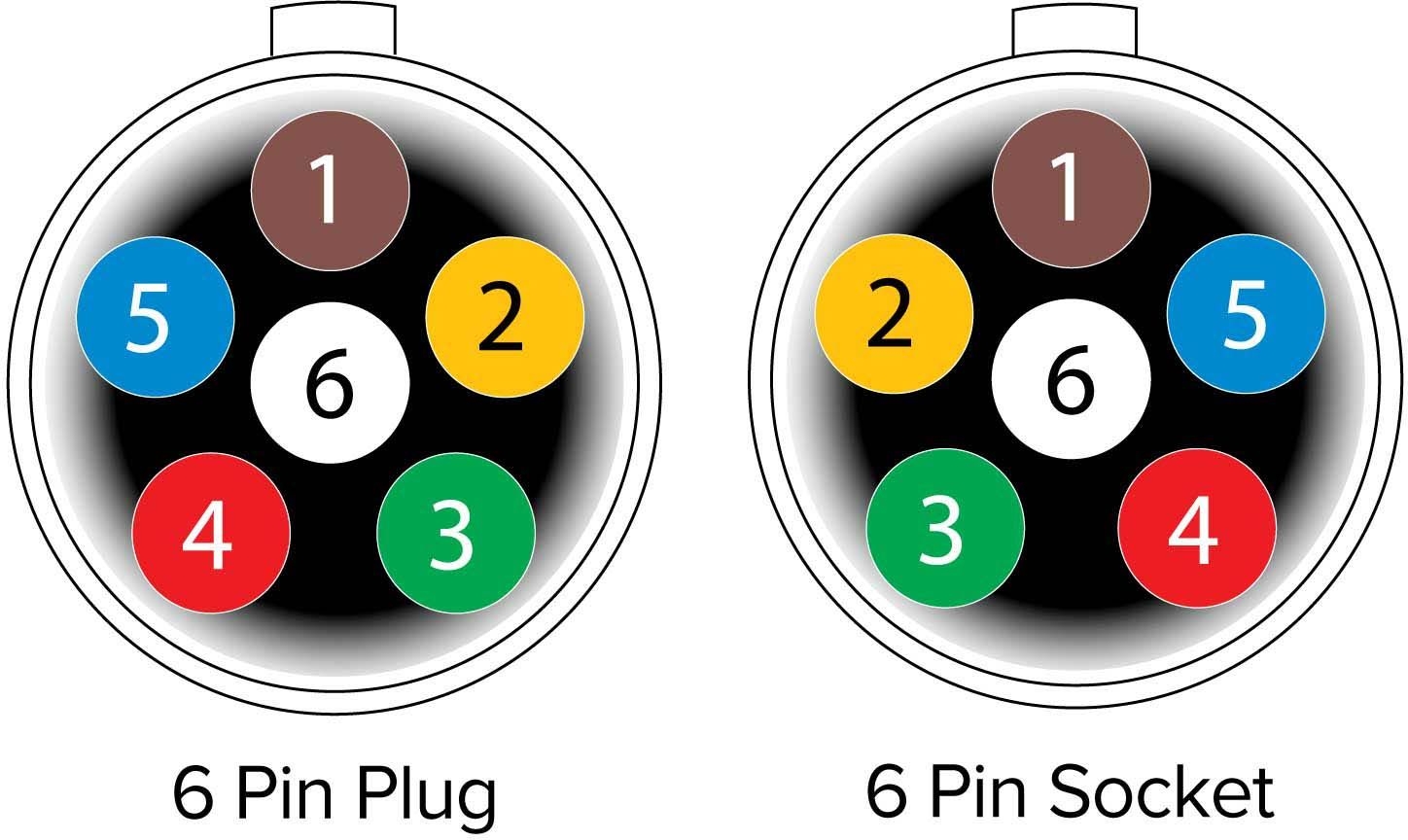

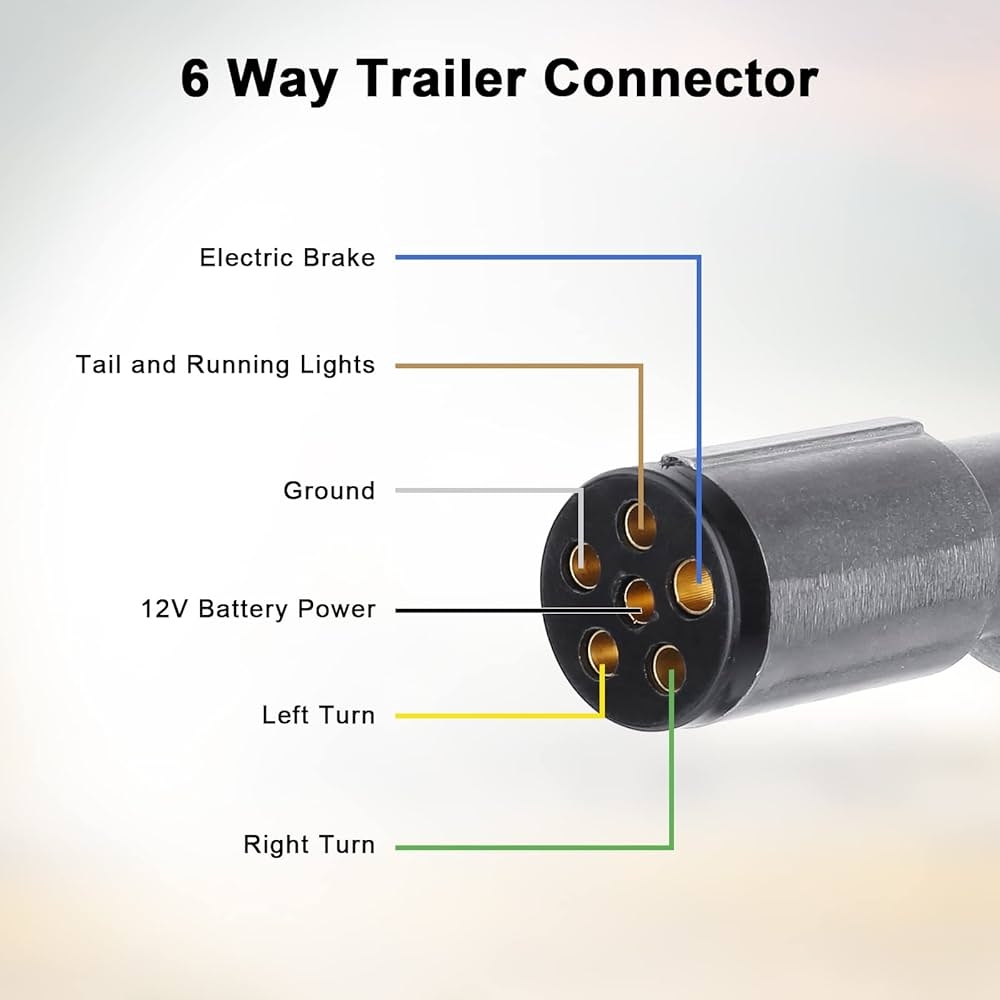

Next, you’ll need to match up the wires on your trailer plug with the corresponding wires on your vehicle. The white wire is the ground wire and should be connected to the vehicle’s grounding point. The yellow wire is for the left turn signal, green for the right turn signal, and brown for the tail lights.
The blue wire is for electric brakes, while the red wire is for auxiliary power. Make sure to double-check your vehicle’s wiring diagram to ensure you’re connecting the wires correctly. Once you’ve made all the necessary connections, secure them with electrical tape or wire nuts to prevent any loose connections.
After you’ve wired up your 6-wire trailer plug, be sure to test it out before hitting the road. Connect your trailer to your vehicle and check that all the lights and signals are working properly. If everything looks good, you’re ready to tow!
With this simple wiring diagram, you’ll have your 6-wire trailer plug set up in no time. Just remember to take your time, double-check your connections, and test everything before heading out on your next adventure. Happy towing!
