If you’re looking for a wiring diagram for your Coleman Mach thermostat, you’ve come to the right place! Understanding how to wire your thermostat correctly is crucial for ensuring your HVAC system works efficiently.
Having a clear diagram can make the installation process much easier, whether you’re a DIY enthusiast or a professional HVAC technician. Let’s dive into the details of wiring a Coleman Mach thermostat.

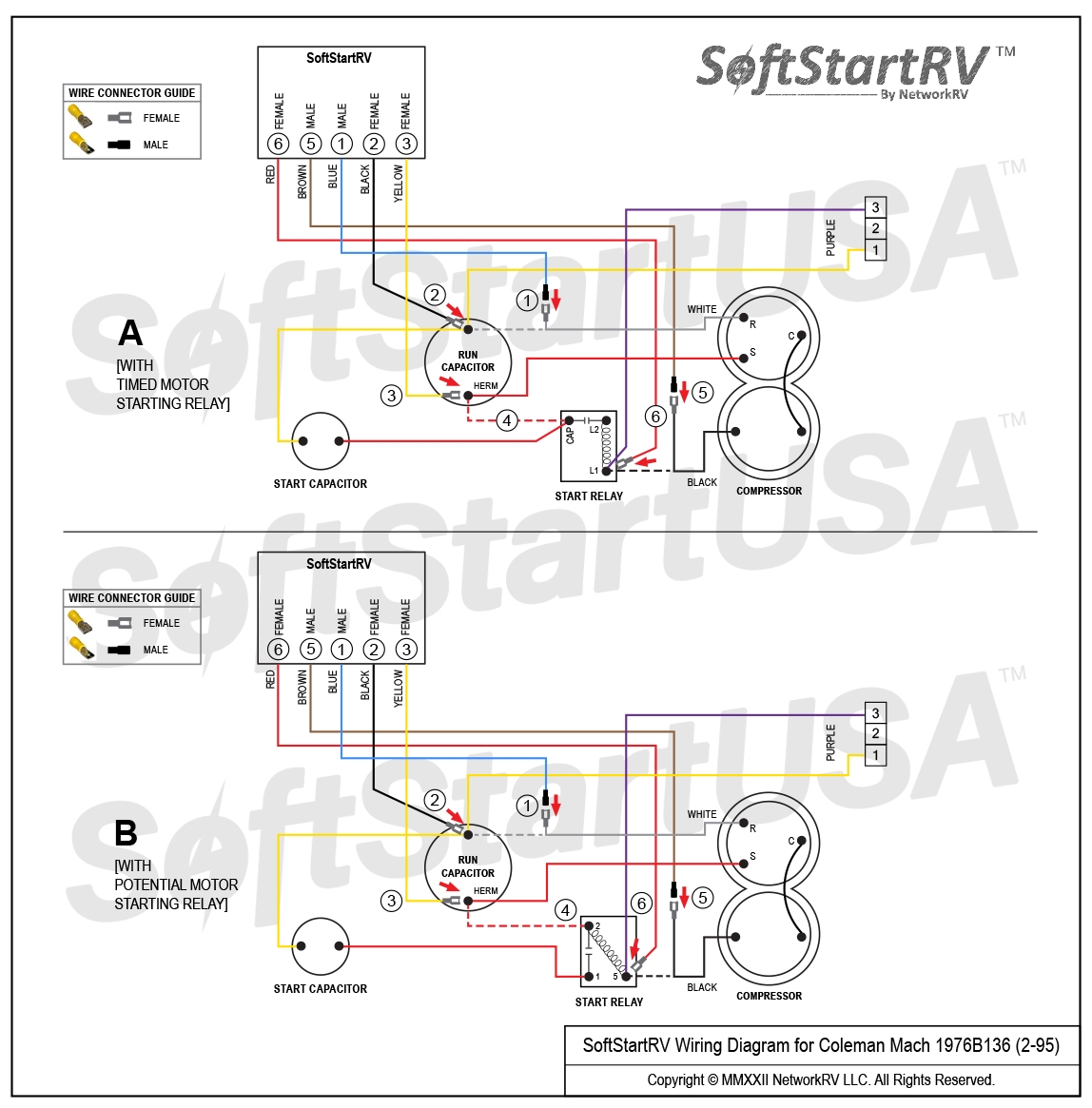

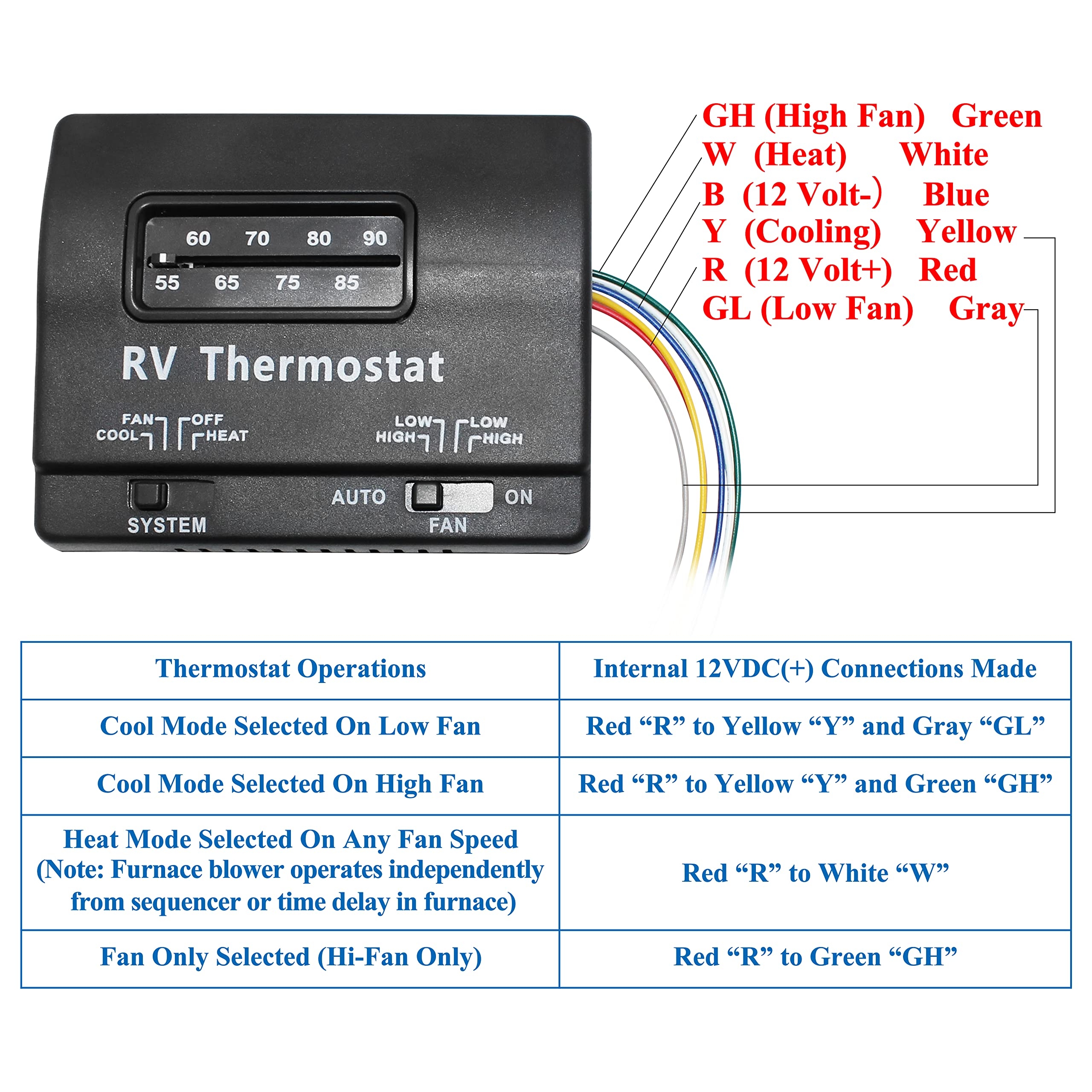

Next, you’ll need to identify the different wires coming from your HVAC system. These wires are typically color-coded, making it easier to determine their function. Common wire colors include red (power), green (fan), yellow (cooling), and white (heating).

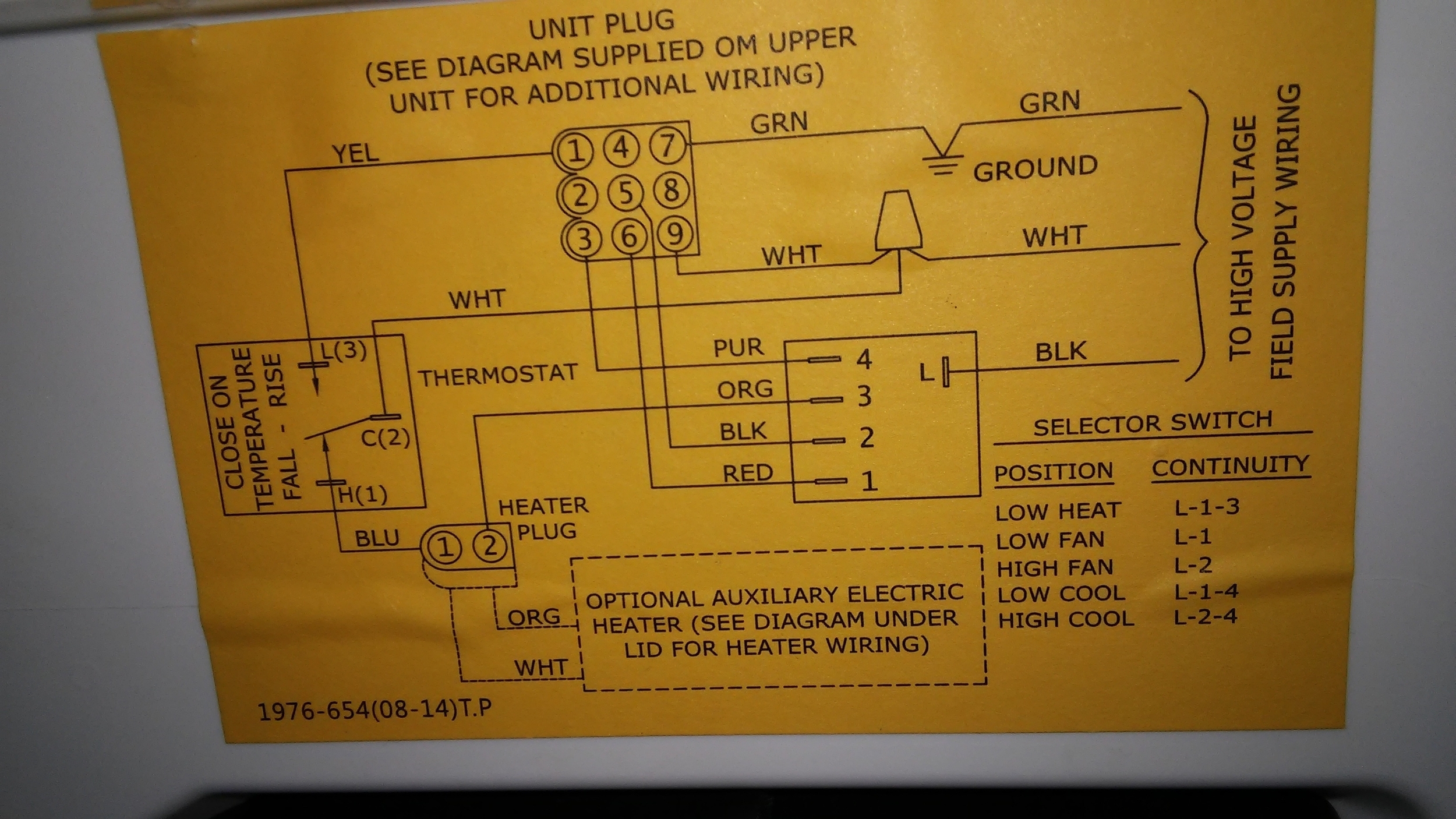

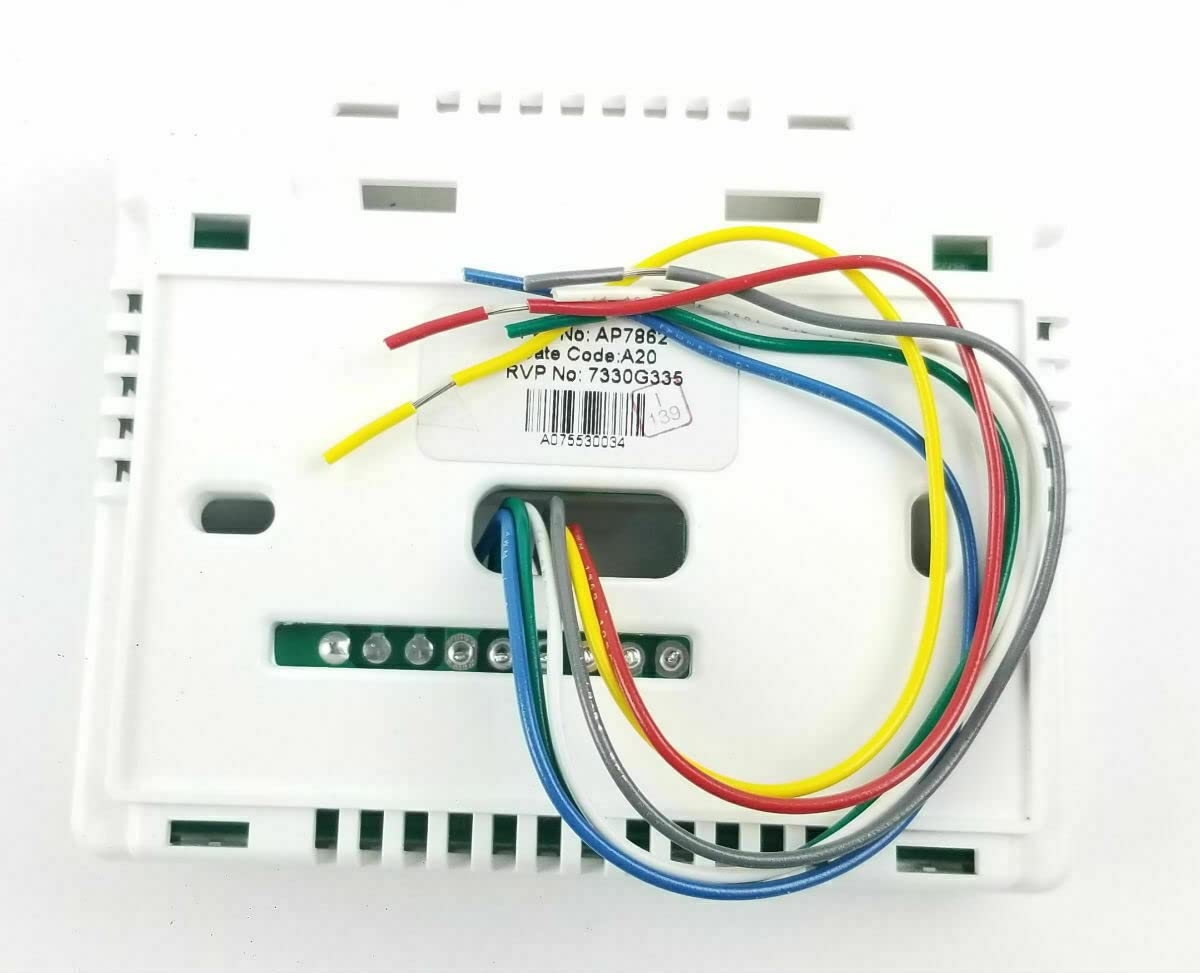

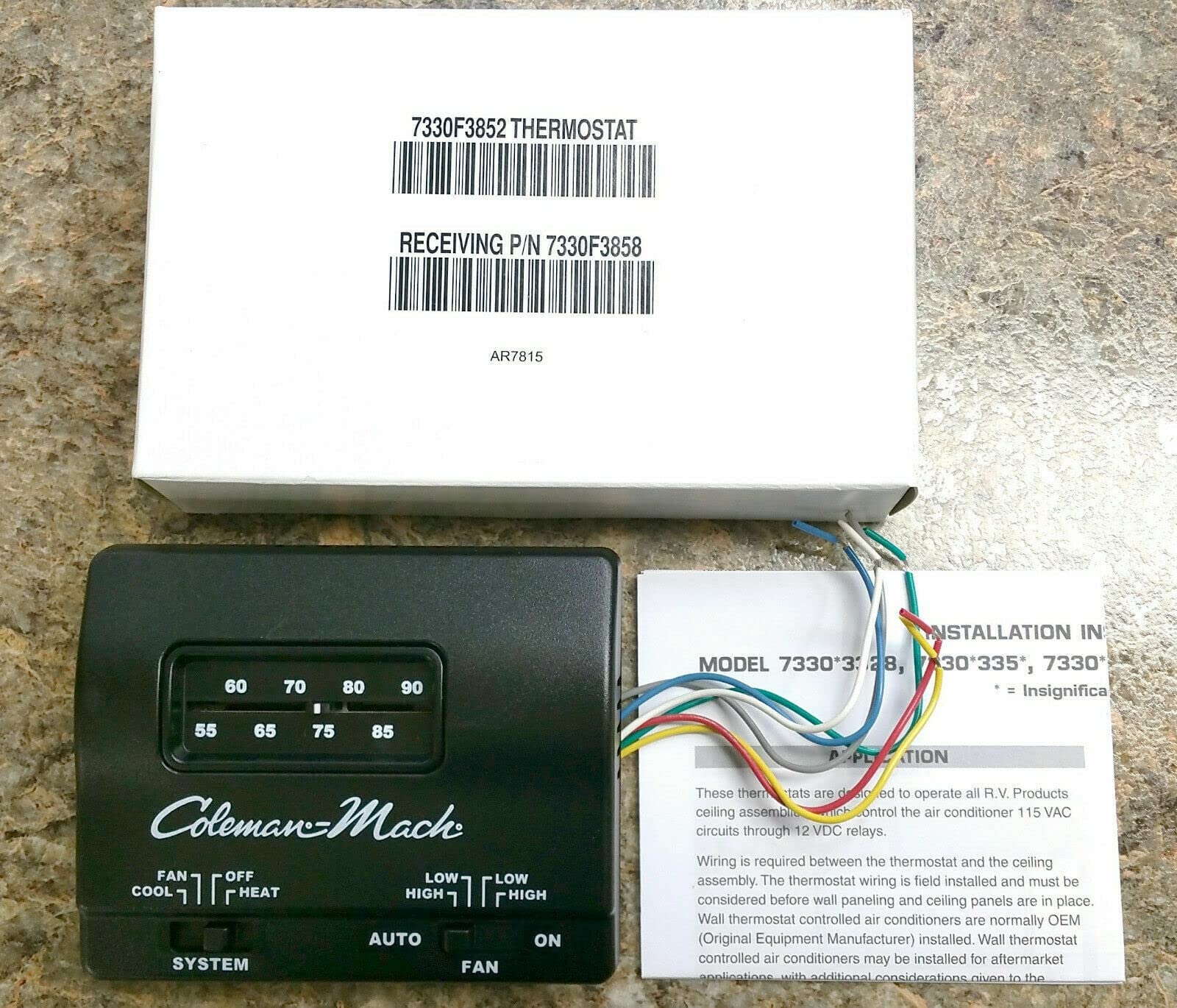

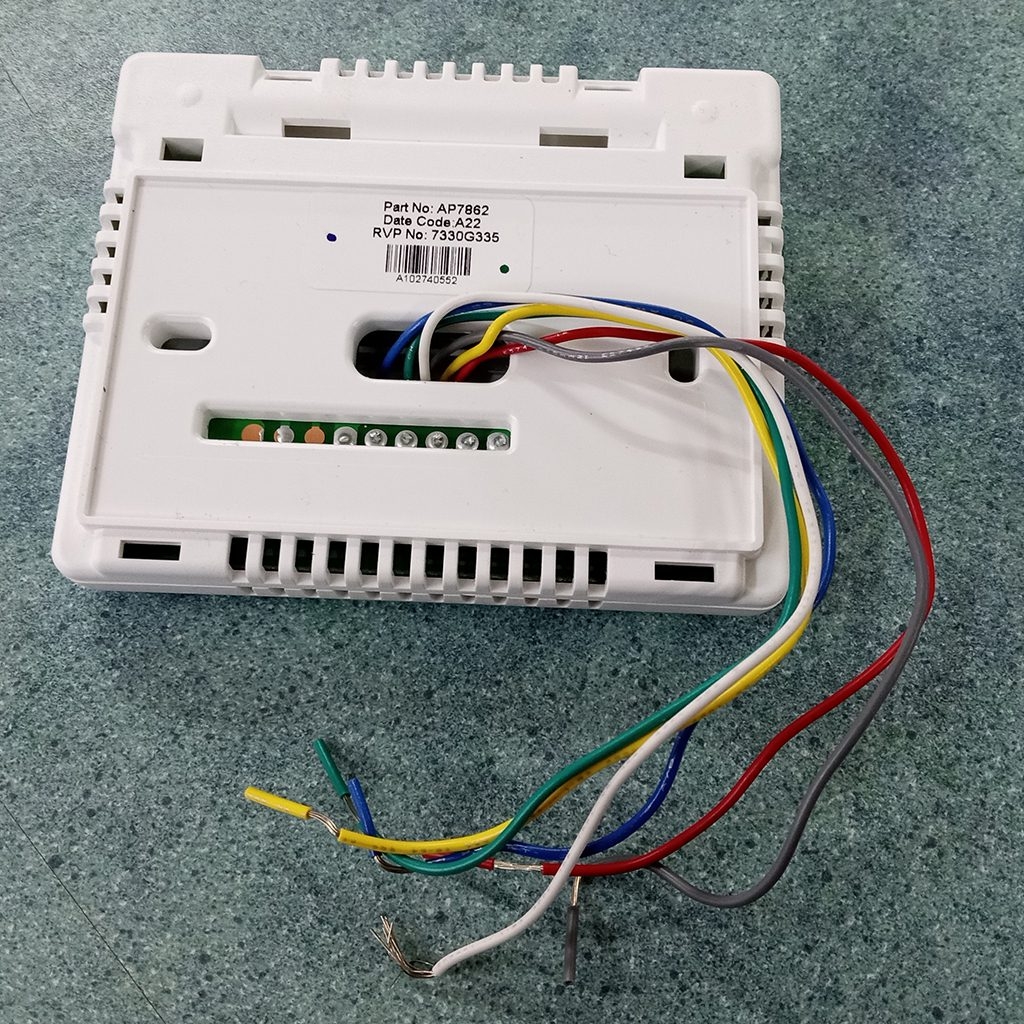

Refer to the wiring diagram provided with your Coleman Mach thermostat to connect the wires correctly. Each wire should be attached to the corresponding terminal on the thermostat. Make sure the connections are secure to prevent any issues with your HVAC system.
Once you’ve completed the wiring process, you can turn the power back on and test your thermostat to ensure everything is working as it should. If you encounter any issues, double-check your connections and consult the wiring diagram again to troubleshoot the problem.
With the wiring correctly set up, you can now enjoy the convenience and comfort of your Coleman Mach thermostat. Proper installation and wiring are key to maximizing the performance of your HVAC system and maintaining a comfortable indoor environment.
In conclusion, having a clear wiring diagram for your Coleman Mach thermostat is essential for a successful installation. By following the instructions carefully and double-checking your connections, you can ensure that your HVAC system operates efficiently. Enjoy the benefits of a properly functioning thermostat in your home!
